X - CONNECTING THE BOWL
➍
Carry over this measurement (L) and increase it
by 3mm at the end (on the frame side) of each
pipe. For example, if L = 50mm, shorten the pipe
by 53mm
➎
Cut the pipes with a metal saw
➏
Smoothen the cuts with a le
➐
Measure the thickness of the back of the bowl (B)
➑
If necessary, cut the xation rods (I) so that the
part which sticks out from the wall is equal to (B)
+ 20mm.
➒
Shorten the exible sleeves so that the part which
sticks out from the wall is equal to (B) – 15mm
➊

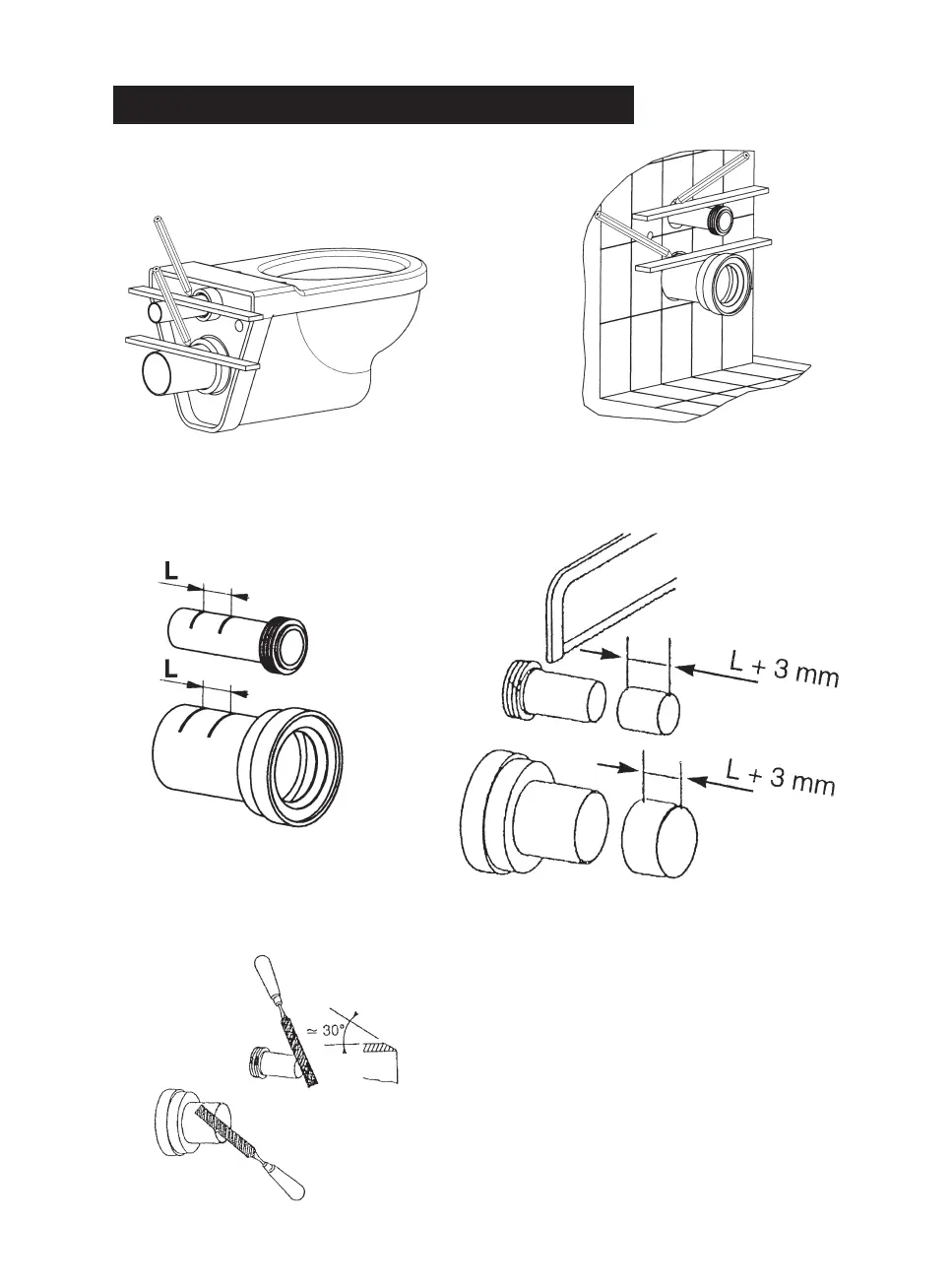

Using a ruler placed as in the drawing below, make a
mark on the bowl side of the 2 supply pipes.
➋
Take the pipes off the bowl and insert them into the
frame. Using a ruler placed as in the drawing below,
make a mark on the wall side of the 2 pipes.
➌
For each of the pipes, measure the distance (L)
between the 2 marks
