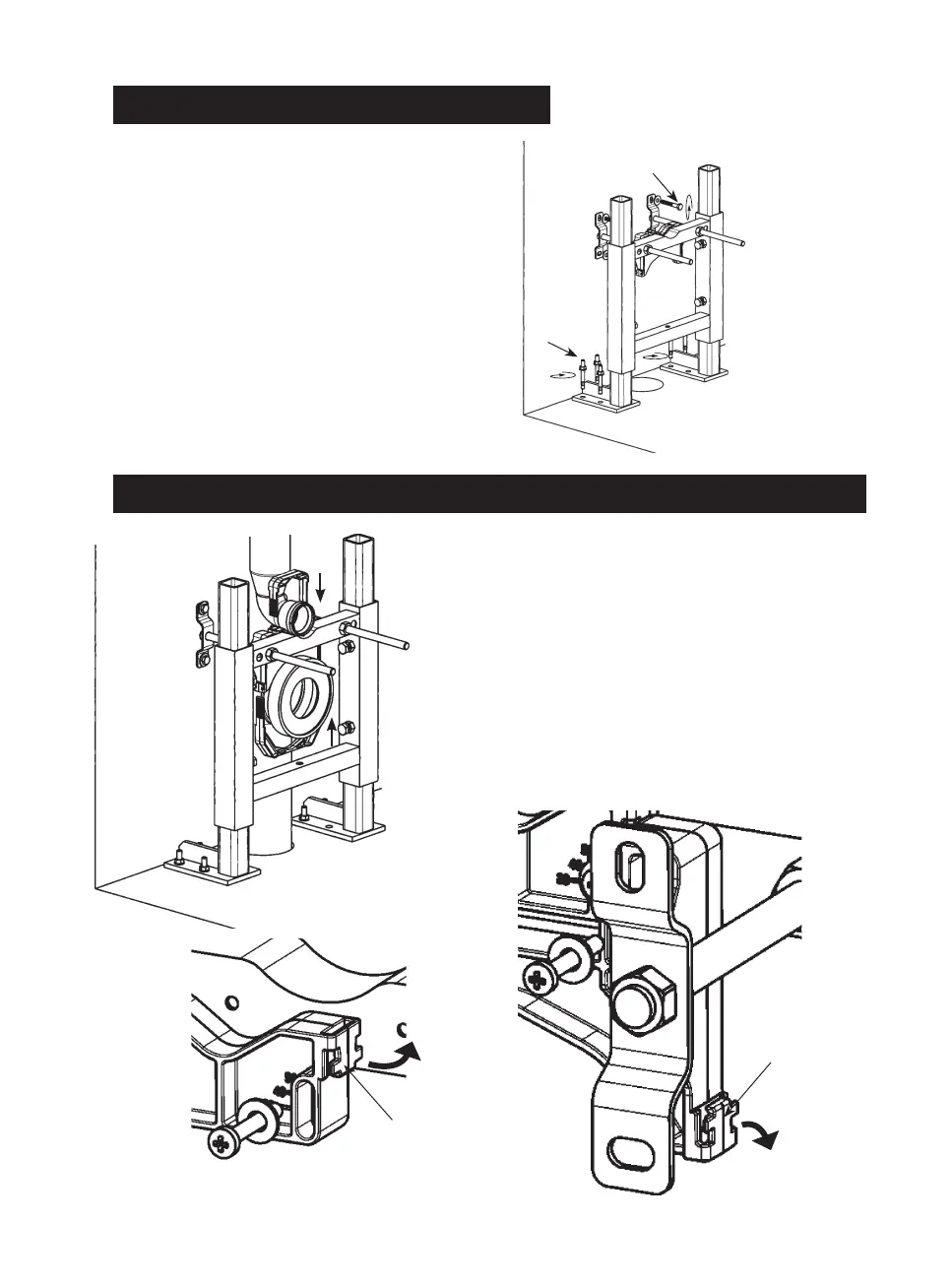

VII - CONNECTING THE WATER SUPPLY AND BOWL EVACUATION
➊
Put the evacuation pipe into place
➋
Attach the pipe using the xation clip (c)
➌
Put the elbow bend supply pipe into place
➍
Attach the elbo bend pipe using the xation
clip (a)
 If you need to unclip, wing nuts are attached to
the xing clips to do this.
c
a
d
b
Wing nuts
Wing nuts
VI - PUTTING THE FRAME INTO PLACE
➊
Put the frame into its nal place and
attach it with the metal pegs, they
must be inserted into the holes without
any effort.
