III - PREPARING THE FIXATION
IV -
PREPARING THE BOWL WATER SUPPLY
➊

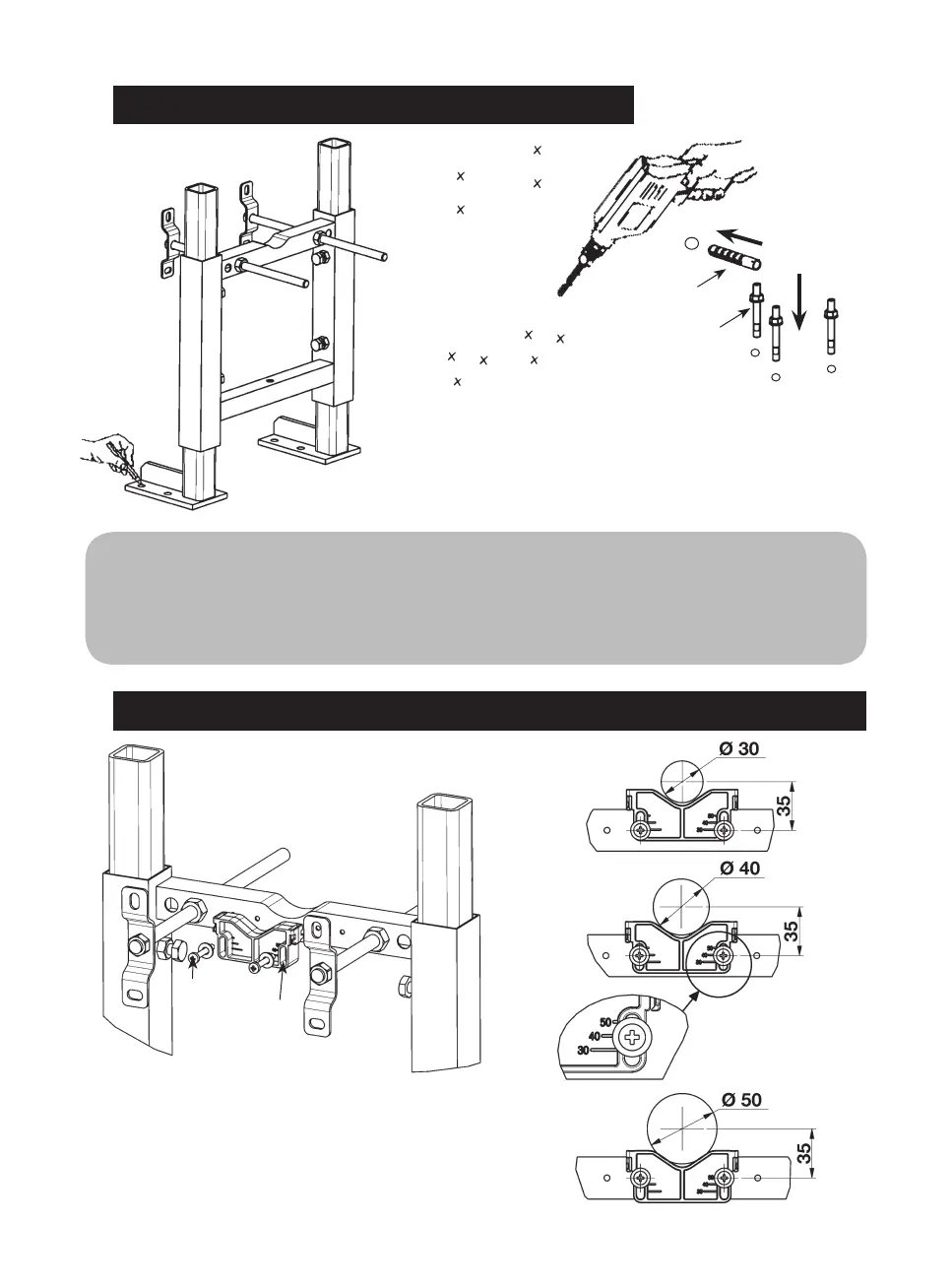

Mark the drilling points
➋
Remove the frame and drill to a depth of 55 mm
at maximum, using an 8 mm diameter drill bit for
ground metal plugs. For wall plugs use a 10 mm
diameter drill bit, and drill to a depth of 70 mm
➌
Move the frame back in place, position the metal
pegs (i) in the holes without any effort
➊
Measure the diameter of the feeder pipe at the place where
it will be attached to the xation clip.
➋
Put the xation clip into place (b) using 2 screws and washers
(e) and adjust the height according to the measured diameter.
Marks are engraved on the clip to guide you.
➊
➋
➌
x 6
i
➊
➋
b
e
x 4
o
BOWL installation beginning page 6
BIDET installation beginning page 12
