1110
f
g
B + 20 mm
➓

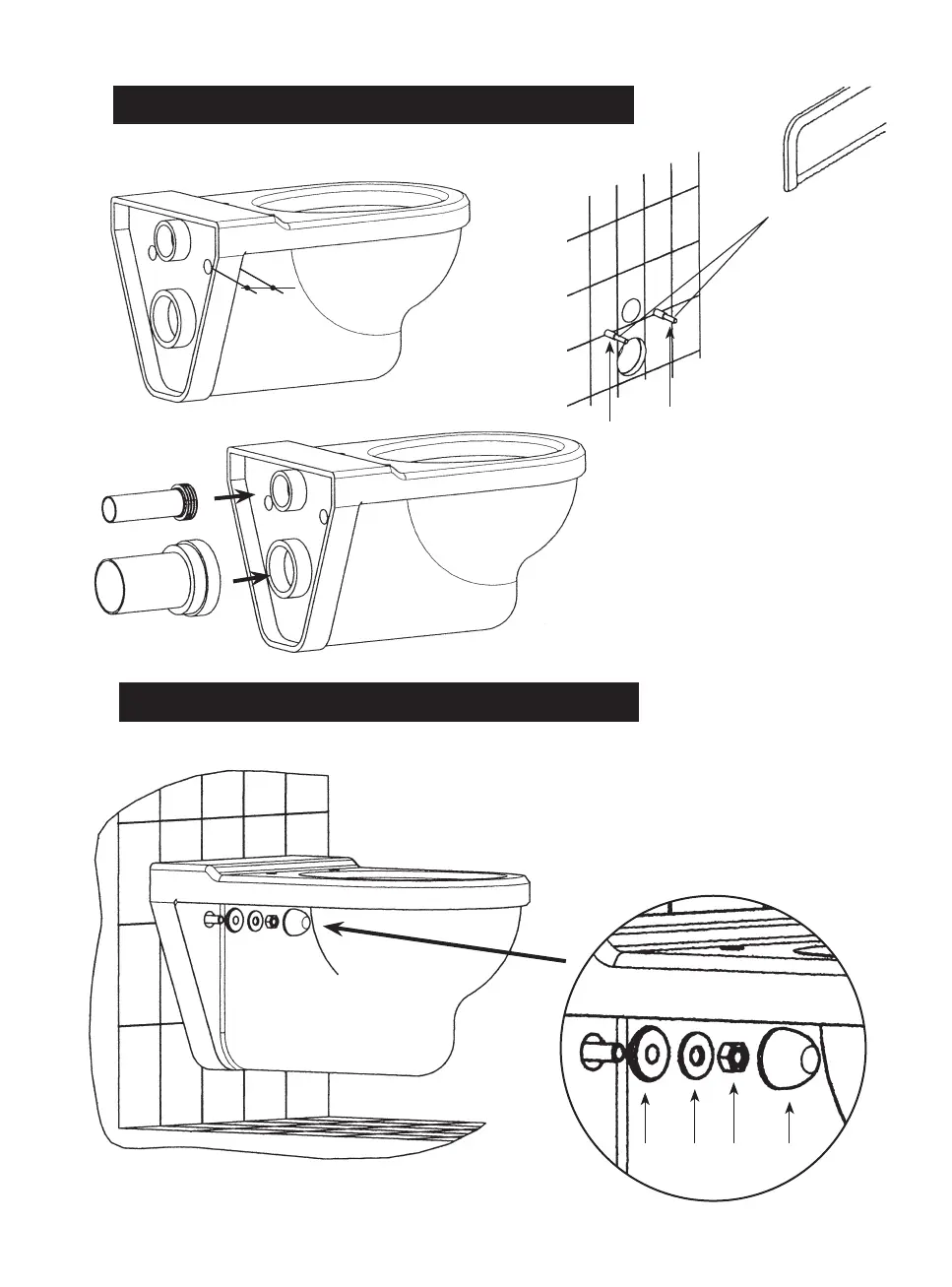

Insert the water supply and
evacuation pipes into the bowl.
Then place the bowl on the two
xation rods.
To make insertion of the supply
and evacuation pipes easier, use
soapy water.
B
XI - ATTACHING THE BOWL
➊
When the bowl has been correctly
positioned, attach it using the kit h),
taking care to put the parts on in the
correct order
i = centering washer
ii = metal washer
iii = nut
iv = cover
i ii iii iv
X - CONNECTING THE BOWL (continued)
