2. Attach the expansion module to the mounting rail. Ensure that the side guide rails
of t
he module intertwine.

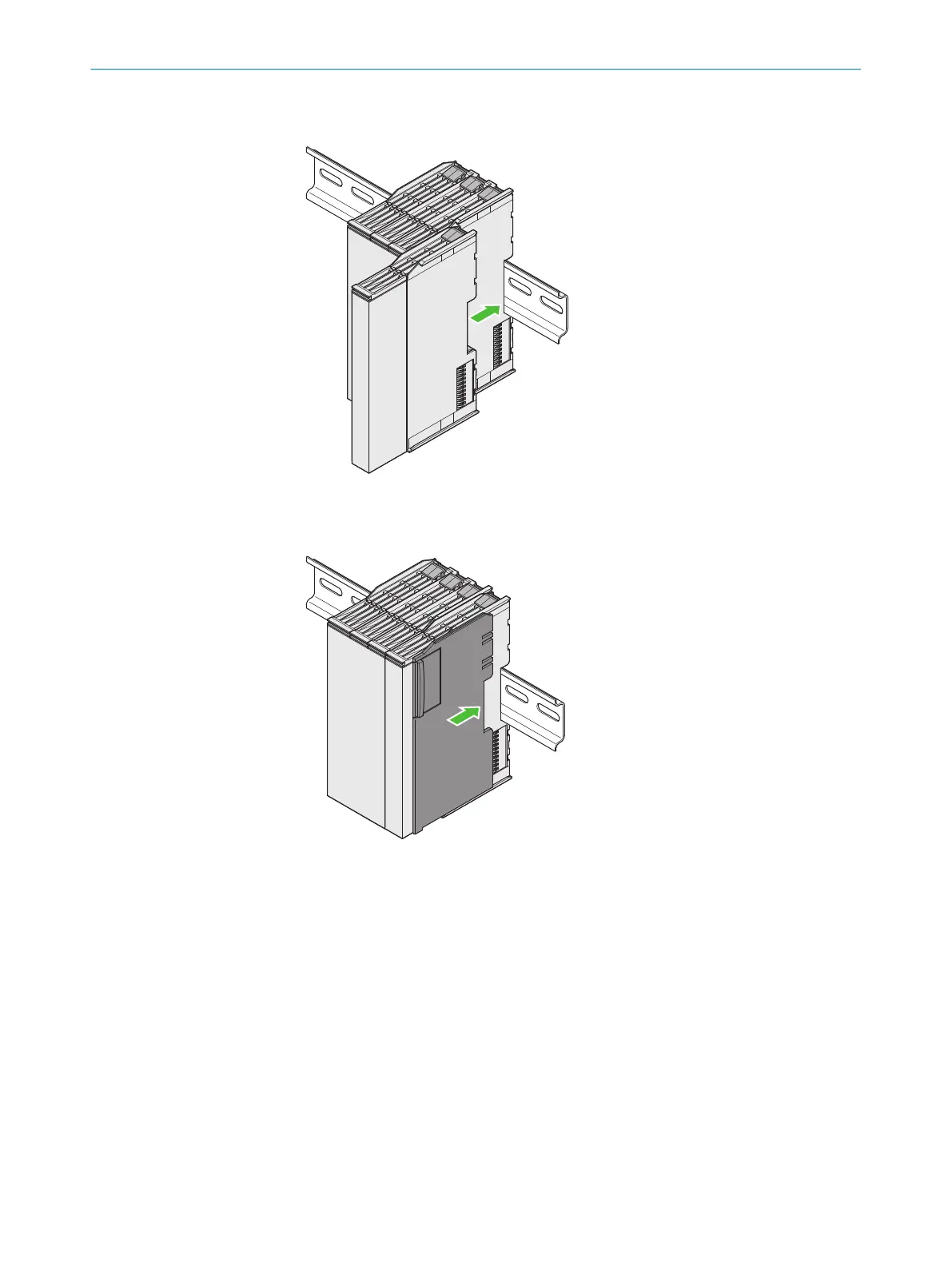

Figure 17: Expansion module mounting
✓
T
he module engages with an audible click.
3. Attach the housing end cap to the last module.
MOUNTING 5
