SICK IME2S - Table of Weights; Dimensional Drawings

Ambient data
EMC In accordance with IEC 60947-5-2, IEC
60947-5-3 and IE
C 61000-6-7
Minimum distance between 2 safety switches see "Mounting", page 15
1)
The adhesive strip above the LED displays must not be removed in order to achieve the specified enclo‐
sur
e rating.
11.2 Table of weights
Table 18: Weight IME2S
Type code Weight in g
IME2S12-04B4DQ9 33
IME2S12-04N4DQ9 33
IME2S12-04B4DC0 18
IME2S12-04B4DW2 60
IME2S12-04N4DC0 18
IME2S12-04N4DW2 60
IME2S12-08N4DC0 18
IME2S18-05B4DC0 42
IME2S18-08N4DC0 38
IME2S18-08B4DC0 42
IME2S30-12B4DC0 102
IME2S30-15N4DC0 94
11.3 Dimensional drawings
IME2S12
M12 x 1
63
52,3
40,9
LED 2 x 180°
17
4
2000

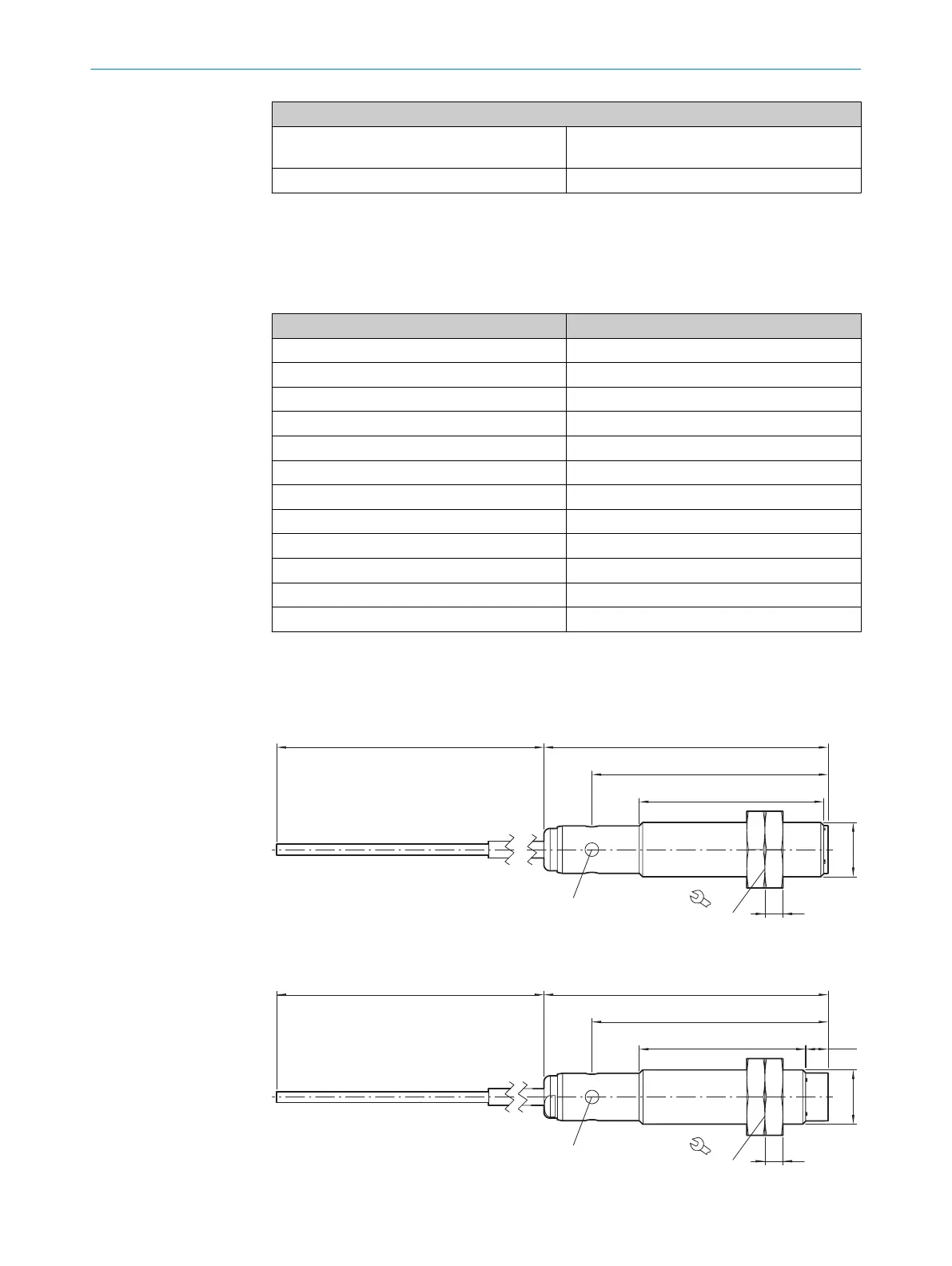

Figure 10: IME2S12-**B**W2 dimensional drawing
4
M12 x 1
17
LED 2 x 180°
63
52,3
36,9
2000
5
Figure 11: IME2S12-**N**W2 dimensional drawing
11 T
ECHNICAL DATA
28
