SICK IME2S - Page 31

M30 x 1,5
M12 x 1
71
58,3
34,6
6,2
LED 2 x 180°
36
4
12,3

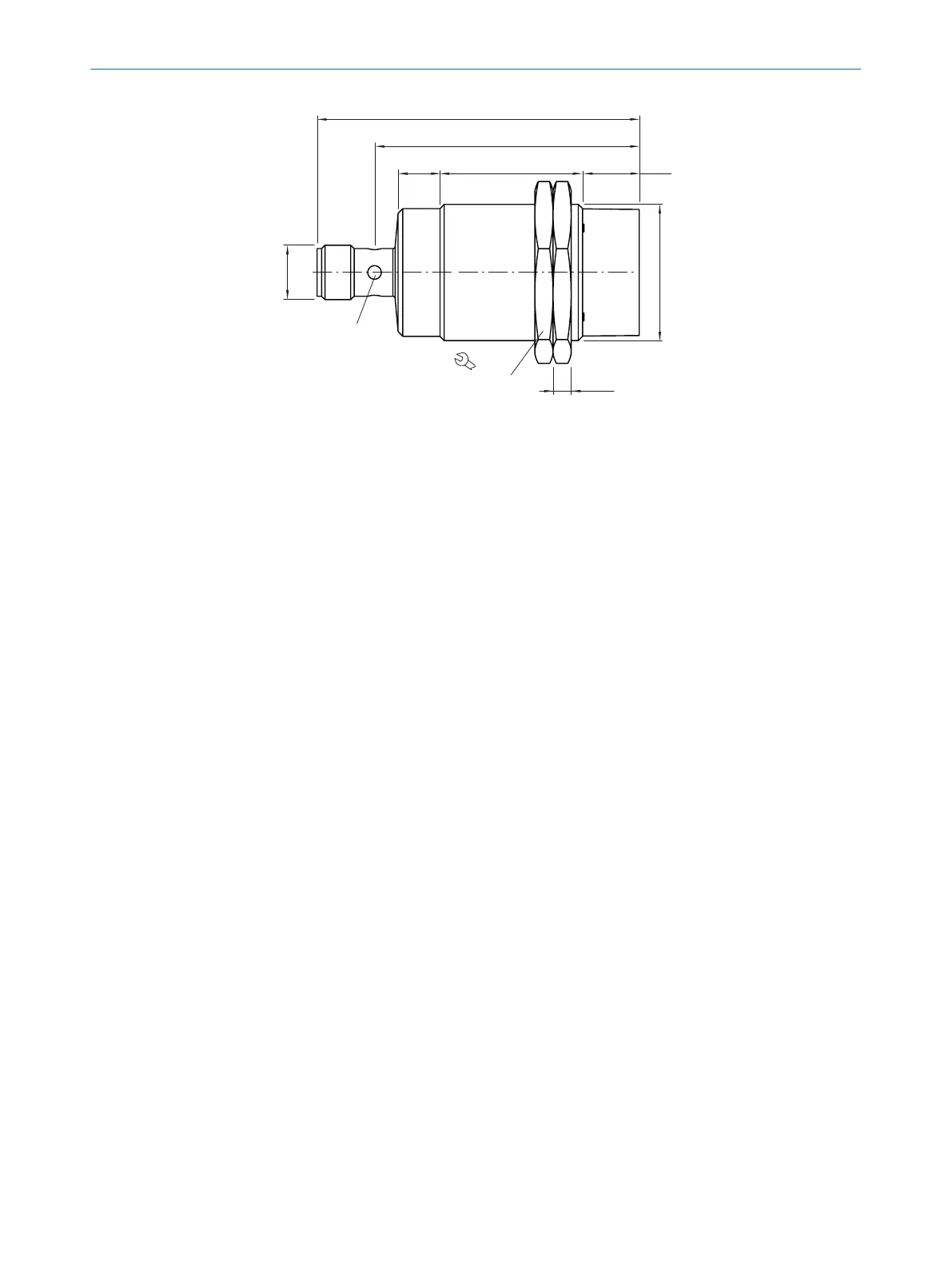

Figure 19: IME2S30-**N**C0 dimensional drawing
