SICK IME2S - Page 30

IME2S18
M18 x 1 M12 x 1
69
56,3
44,2
6,5
LED 2 x 180°
24
4

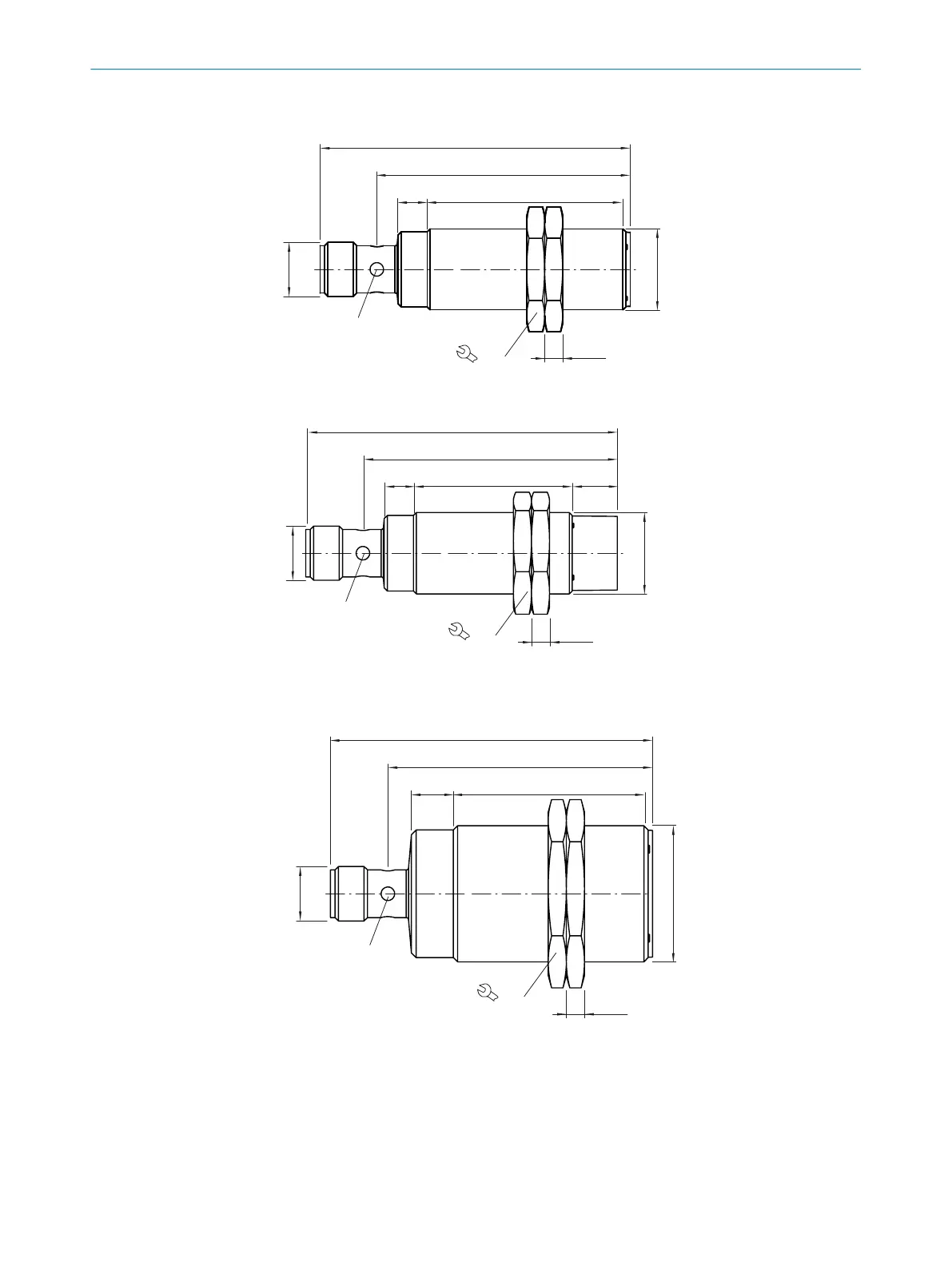

Figure 16: IME2S18-**B**C0 dimensional drawing
M18 x 1 M12 x 1
69
56,3
35,2 10
6,5
LED 2 x 180°
24
4
Figure 17: IME2S18-**N**C0 dimensional drawing
IME2S30
M30 x 1,5
M12 x 1
71
58,3
45,9
6,2
LED 2 x 180°
36
4
Figure 18: IME2S30-**B**C0 dimensional drawing
11 TECHNICAL DATA
30
O P E R A T I N G I N S T R U C T I O N S | IME2S 8023341/14TD/2019-08-08 | SICK
Subject to change without notice
