SICK microScan3 Core I/O Mounting Instructions

7 Replacing the safety laser scanner
If the safety laser scanner is damaged or defective, you must replace it.
DANGER
H
azard due to lack of effectiveness of the protective device
Persons and parts of the body to be protected may not be recognized in case of non-
observance.
If an unsuitable configuration is saved in the system plug, the dangerous state is not
ended or is not ended in time.
b
Make sure that after replacement, the same system plug is used or the configura‐
tion is restored.
b
Make sure that the safety laser scanner is aligned correctly after the replacement.
NOTICE
Enclosure rating IP65 only applies if the safety laser scanner is closed and the system
plug is mounted.
NOTICE
P
lug in the system plug carefully.
Do not force it.
The contacts may break off or bend if too much force is used.
Tool required:
•
T
X10 Torx wrench
•
TX20 Torx wrench

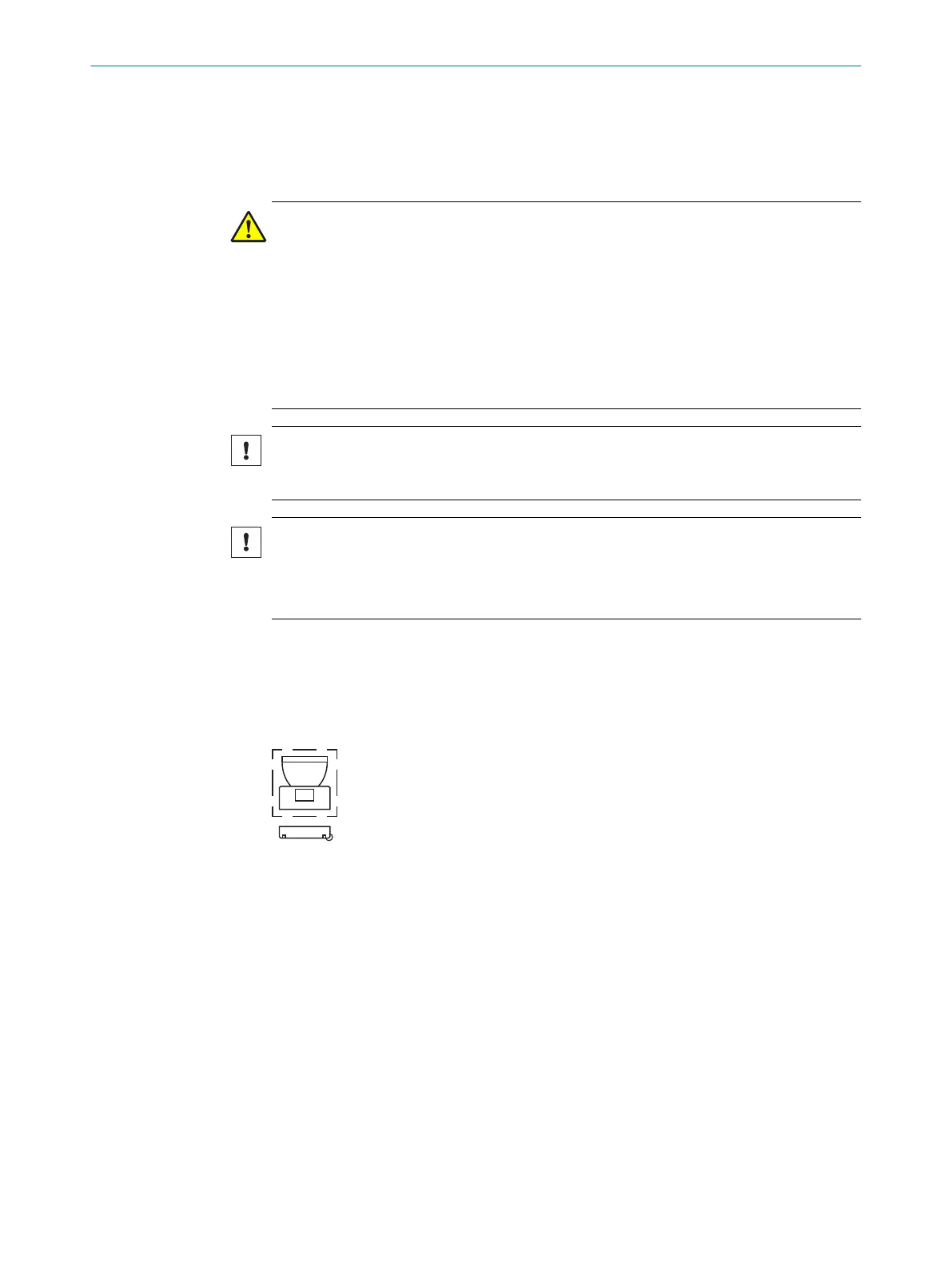

7.1 Replacing the safety laser scanner without system plug
1. Make sure that the environment is clean and clear of fog, moisture, and dust.
2.
Unscrew screws in the system plug and remove the system plug from the defective
safety laser scanner.
3. Unscrew the fixing screws and remove the defective safety laser scanner.
4. Mount the system plug on the new safety laser scanner, see “Replacing the sys‐
tem plug”.
5. Mount the new safety laser scanner, see “Mounting the safety laser scanner
directly”.
6. Check the effectiveness of the protective device. For more information, see the
operating instructions.
MOUNTING INSTRUCTIONS
8017779/ZYM7/2018-05-15 | SICK M O U N T I N G I N S T R U C T I O N S | microScan3 Core I/O
11
Subject to change without notice
