SICK microScan3 Pro I/O Mounting Instructions

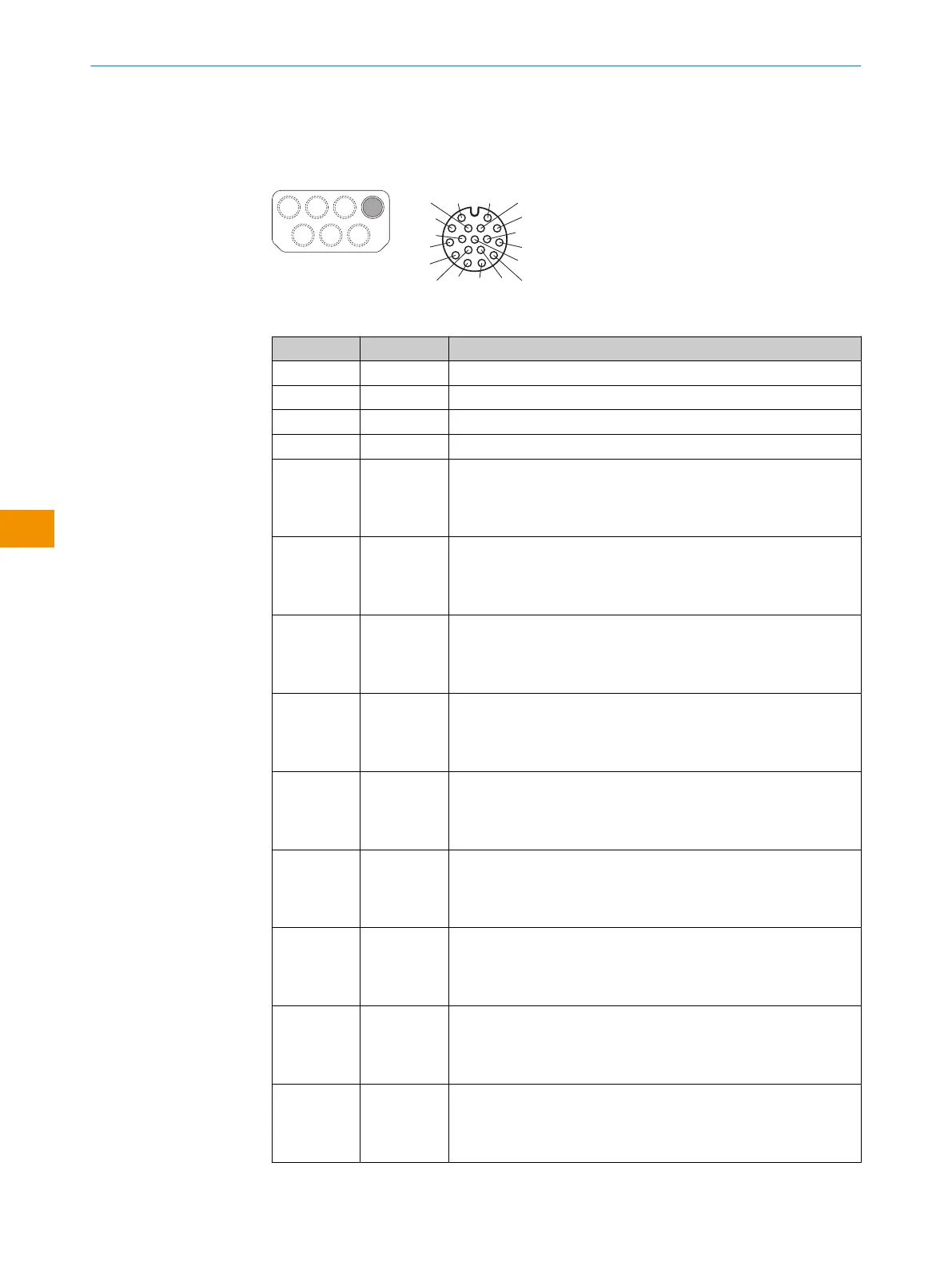

7.4 Local inputs and outputs 1 (XG1)
Female connector, M12, 17-pin, A-coded.
1 2
6
7 14
12
3
4
5
8
9
10
11
13
15
17
16
Pin assignment for local inputs and outputs 1
PIN Designation Function
1 OSSD 1.A OSSD pair 1, OSSD A
2 OSSD 1.B OSSD pair 1, OSSD B
3 OSSD 2.A OSSD pair 2, OSSD A
4 OSSD 2.B OSSD pair 2, OSSD B
5 Uni-I 01 Universal input 1, configurable:
•
Static control input A1
•
Universal input: sleep mode, restarting the device, pausing
event recording
6 Uni-I 02 Universal input 2, configurable:
•
St
atic control input A2
•
Universal input: sleep mode, restarting the device, pausing
event recording
7 Uni-I 03 Universal input 3, configurable:
•
Static control input B1
•
Universal input: sleep mode, restarting the device, pausing
event recording
8 Uni-I 04 Universal input 4, configurable:
•
Static control input B2
•
Universal input: sleep mode, restarting the device, pausing
event recording
9 Uni-I 05 Universal input 5, configurable:
•
Static control input C1
•
Universal input: sleep mode, restarting the device, pausing
event recording
10 Uni-I 06 Universal input 6, configurable:
•
St
atic control input C2
•
Universal input: sleep mode, restarting the device, pausing
event recording
11 Uni-I 07 Universal input 7, configurable:
•
Static control input D1
•
Universal input: resetting (OSSD pair 1), sleep mode, restarting
the device, pausing event recording
12 Uni-I 08 Universal input 8, configurable:
•
Static control input D2
•
Universal input: EDM (external device monitoring, OSSD pair
1), sleep mode, restarting the device, pausing event recording
13 Uni-I 09 Universal input 9, configurable:
•
Static control input E1
•
Universal input: resetting (OSSD pair 2), sleep mode, restarting
the device, pausing event recording
MOUNTING INSTRUCTIONS
16
M O U N T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8026187/1H7G/2022-10-19 | SICK
Subject to change without notice
en

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
