INC

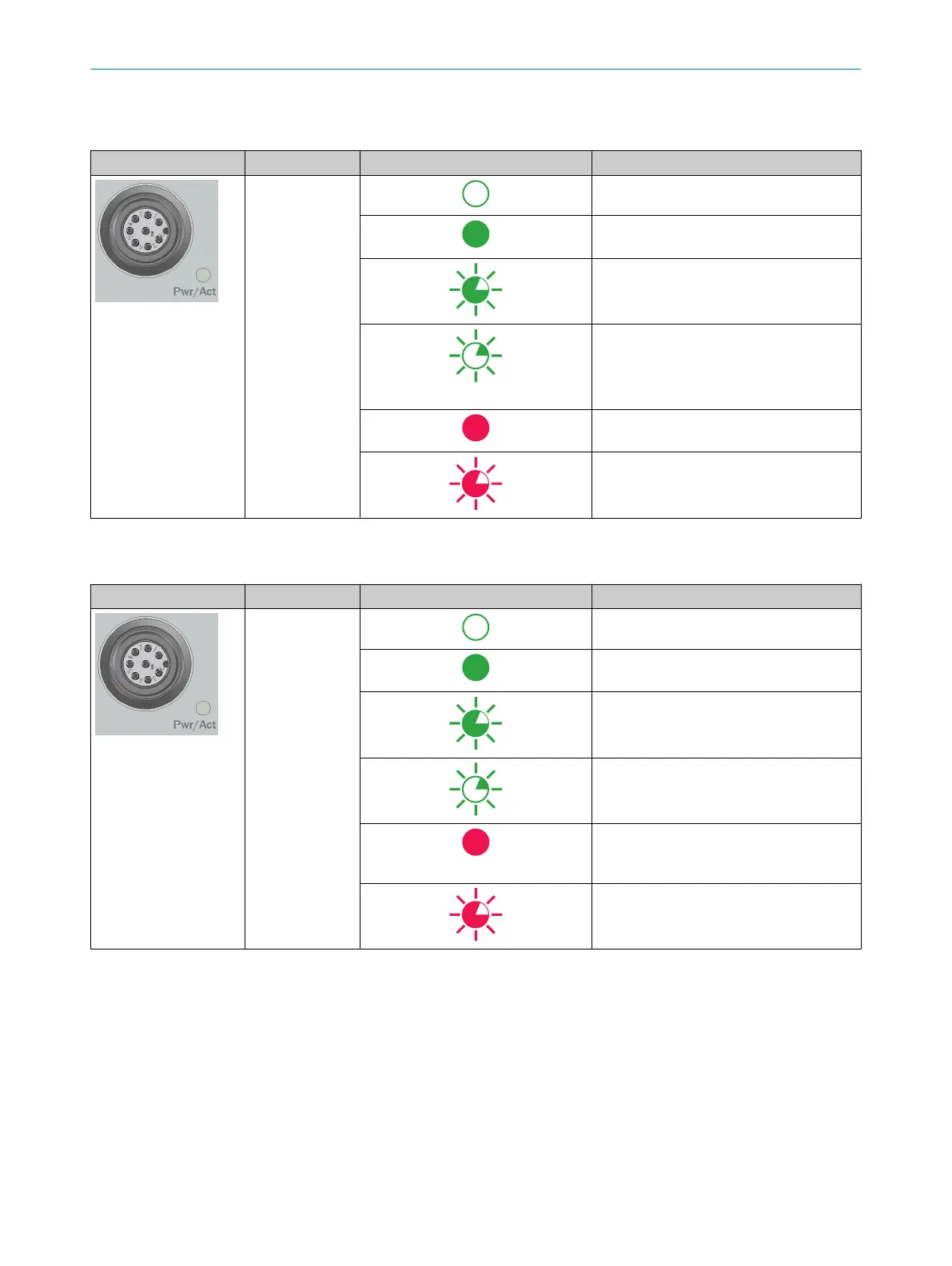

Table 15: INC status LEDs
Location Designation LED behavior Description
PWR/ACT Voltage not applied to the connection.
Voltage applied.
No signal activity.
Voltage applied.
Signal activity.
Voltage not applied to the connection.
Signal activity.
Overvoltage or short-circuit detected.
No signal activity.
Overvoltage or short-circuit detected.
Signal activity.
SERIAL
Table 16: SERIAL status LEDs
Location Designation LED behavior Description
PWR/ACT Voltage not applied to the connection.
Voltage applied.
No signal activity.
Voltage applied.
Signal activity.
Voltage not applied to the connection.
Signal activity.
Overvoltage or short-circuit detected.
No signal activity.
Overvoltage or short-circuit detected.
Signal activity.
