6 Commissioning
Bluetooth® is switched on for initial commissioning. You can get SOPASair in the Google
PlayStore (Android) and in the App Store (iOS).
Operating system requirements: Android version 6.0, most current version of iOS.

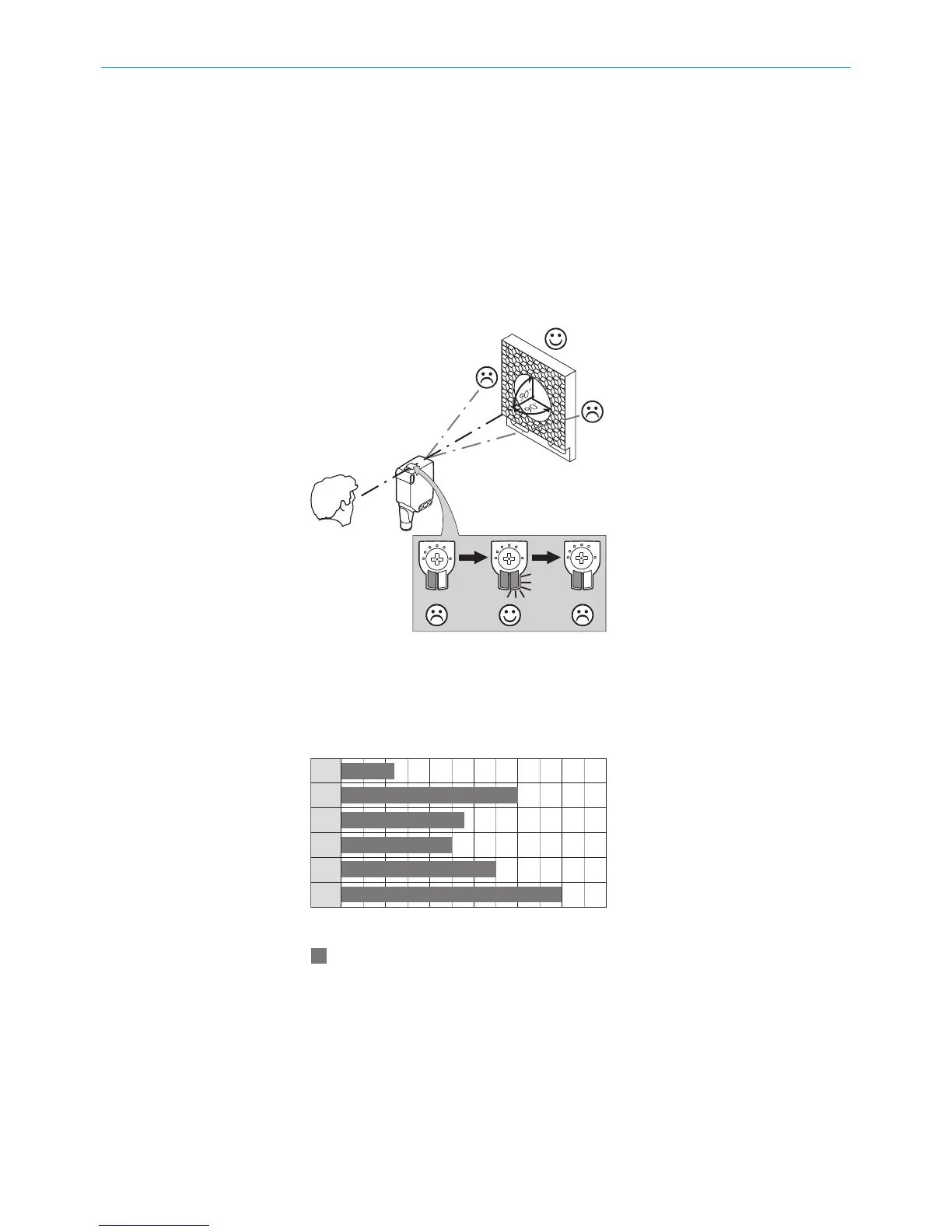

1 Alignment
Align the sensor with a suitable reflector. Select the position so that the red emitted light
beam hits the center of the reflector. The sensor must have a clear view of the reflector,
with no object in the path of the beam [see figure 3]. You must ensure that the optical
openings of the sensor and reflector are completely clear.
Figure 3: Alignment
2 Sensing range
Adjust the distance between the sensor and the reflector according to the corresponding
diagram [see figure 4].
Abstand in m
Schaltabstand
1
2
3
4
5
6
0 1 2 3 4 5 6
4
2,8
0
2,5
0
3,5
0
5
0
1,20
0
Figure 4: Maximum distance between the sensor and the respective reflector type
1
Reflector PL10F CHEM
2
Reflective tape REF-AC1000 (50 x 50 mm)
3
Reflector PL10FH-1
4
Reflector PL10F
5
Reflector PL20F
6
Reflector P250F
Sensing range setting
6
COMMISSIONING
8
8022197 | SICK
Subject to change without notice
