NOTE
Note the sensor’s maximum permissible tightening torque of 1.3Nm.
Mounting with the background suppression principle of operation
MultiMode 1, 3, 4, 5, 6, M:
Note the preferred alignment of the sensor relative to the movement direction of the
object, see figure 3.

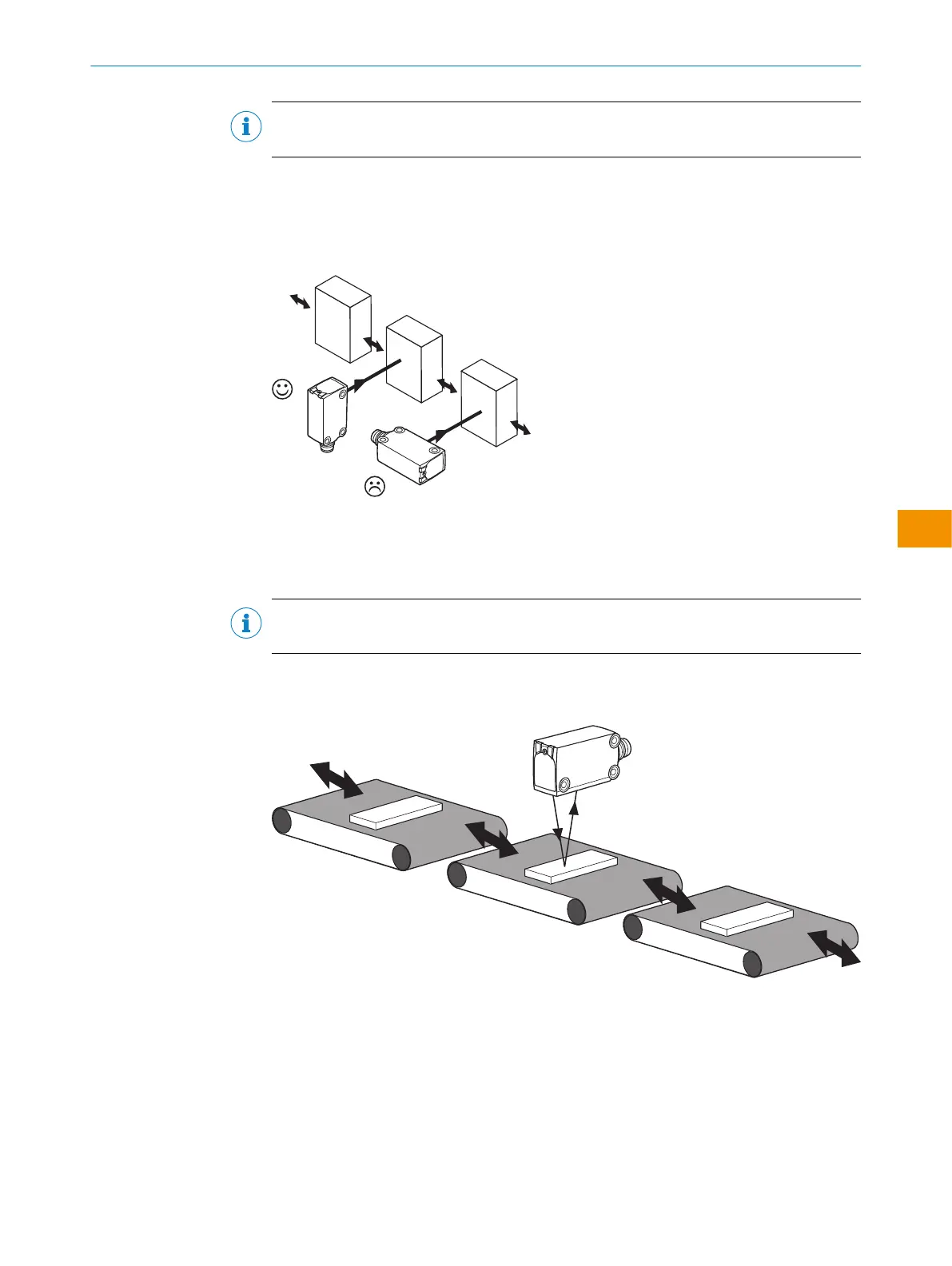

Figure 3: Alignment of the sensor relative to the object direction
Note the preferred direction of the object relative to the sensor, cf. see figure 13,
page 62.
NOTE
WTM4S: No preferred direction must be observed in mode M.
Mounting with the foreground suppression principle of operation
MultiMode 2:
Figure 4: Alignment of the sensor
Note the preferred direction of the object relative to the sensor, cf. figure 4.
