Siebeck GmbH Translation of the original operating manual jet_in_bed_0315
Seite 15
Stripper setting
The side setting for the stripper "C" is made using the threaded pin No. 9
(group M4).
When the knotter "A" moves back, the stripper "C" must rest on knotter "A"
with pressure.
The height is set is using the rod end No. 2 (group M4).

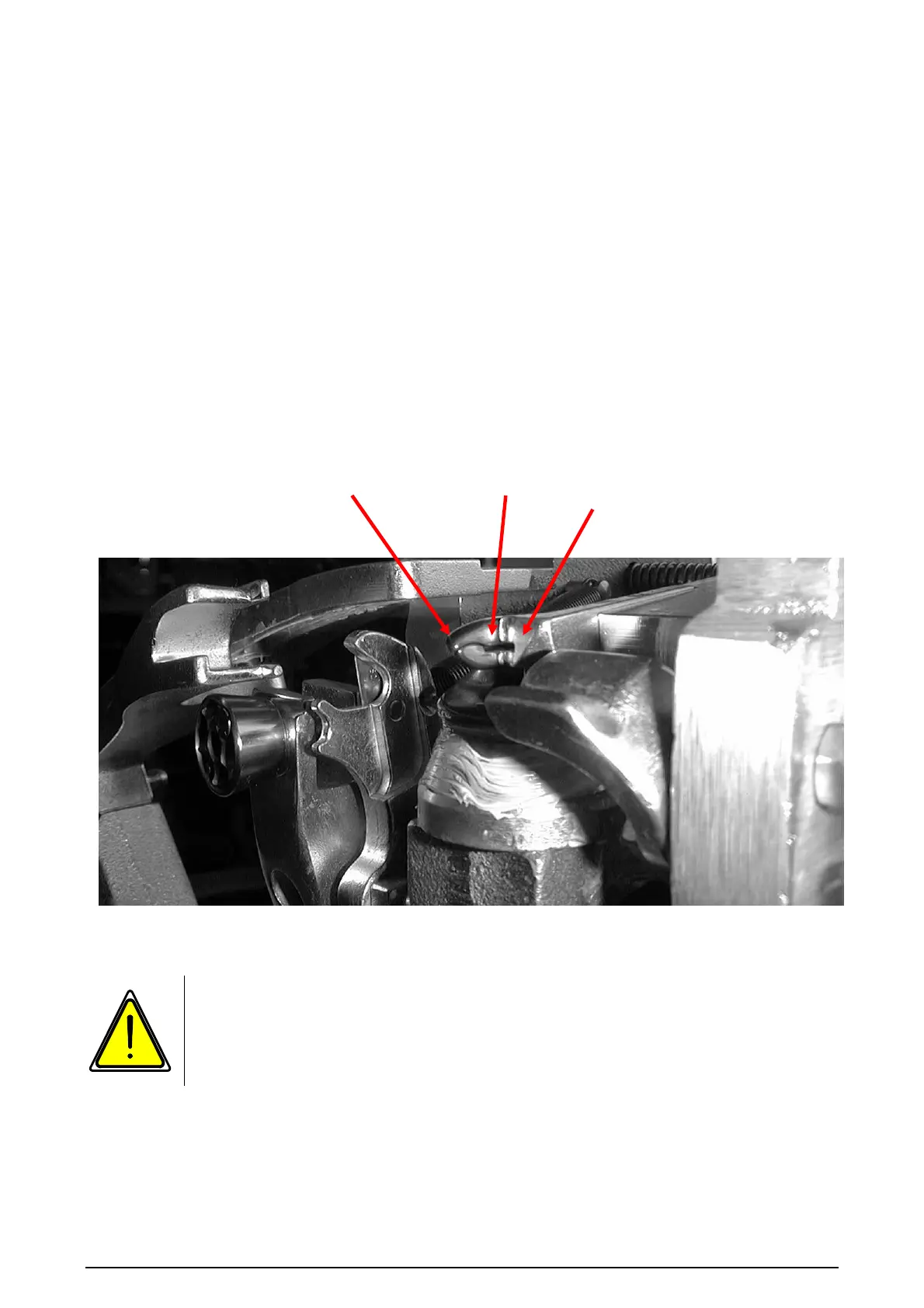

The correct height of the stripper slot "B" to the knotter is shown in the figure
below.
A B C
Only authorised and trained staff are allowed to perform this
setting!
