10.11 Roller bearings, NDE - end shield with integrated bearing cover












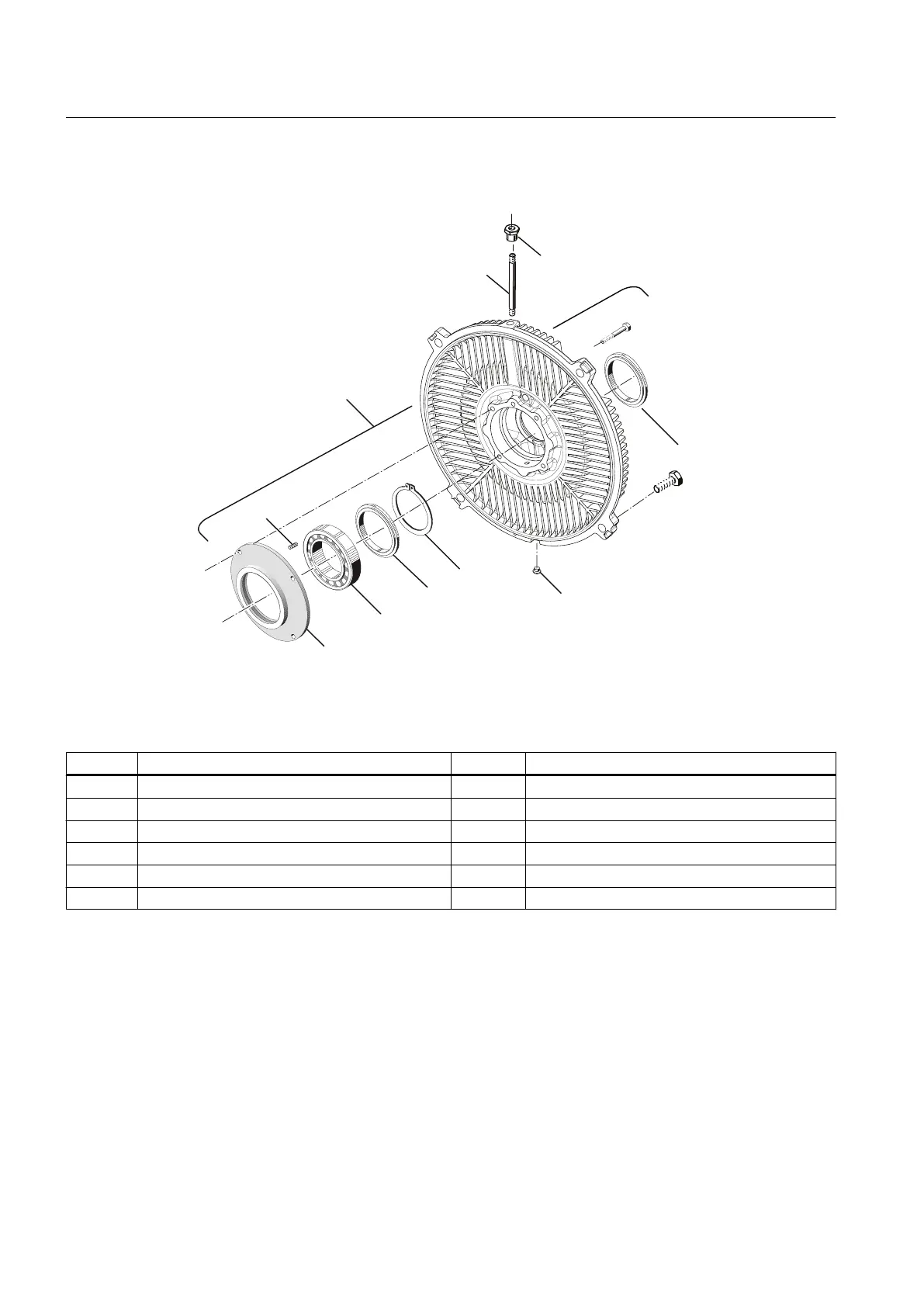

Figure 10-7 Roller bearings, NDE - end shield with integrated bearing cover
Table 10-8 Spare parts for roller bearings, NDE
Part Description Part Description
4.00 Roller bearing cartridge (floating bearing) 4.60 Inner bearing cover
4.10 V ring 4.81 Nut
4.30 Locking ring 4.82 Grease tube
4.35 Grease slinger 6.00 End shield
4.40 Deep-groove ball bearing 6.67 Sealing plugs
4.45 Compression spring
Spare parts
10.11 Roller bearings, NDE - end shield with integrated bearing cover
SIMOTICS TN Series N-compact 1LA8
