How to recognize which LOGO! model you have
LOGO!’s designation contains information on various char-
acteristics:
12: 12 V DC variant
24: 24 V DC variant
230: 115/230 V AC variant
R: Relay outputs (without R: Transistor output)
C: Integrated seven-day time switch
o: Variant without display
L: Twice the number of outputs and inputs
B11: slave with AS interface bus connection

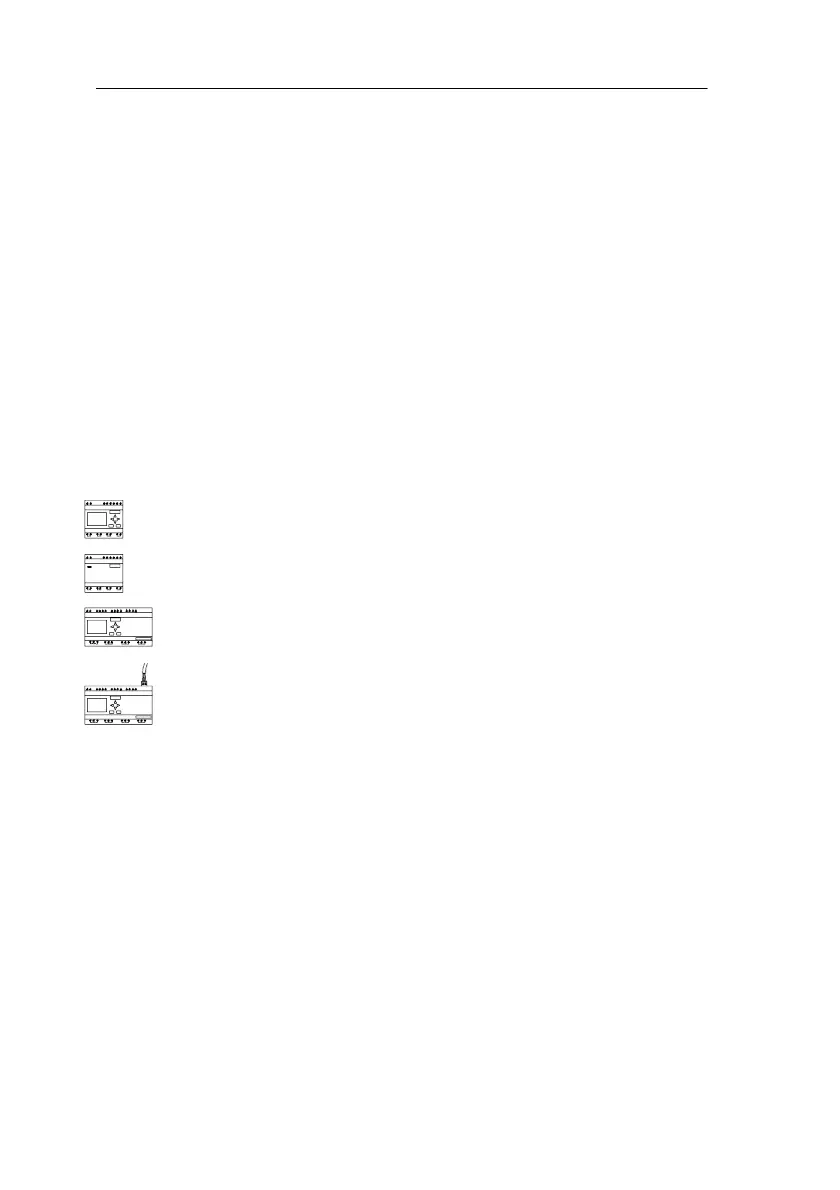

We also use icons to describe the different types of LOGO!
They are used whenever information refers to only some of
the LOGO! variants:
Standard variant with 6 or 8 inputs and 4 outputs with di-
mensions of 72 x 90 x 55 mm
Standard variant without a display with 6 or 8 inputs and
4 outputs with dimensions of 72 x 90 x 55 mm
..L variant with 12 inputs and 8 outputs with dimensions of
126 x 90 x 55 mm
..B11 variant with 12 inputs and 8 outputs and additional
AS interface bus connection with 4 virtual inputs and
4 virtual outputs with dimensions of 126 x 90 x 55 mm.
