LOGO! Manual
A5E00067781 01
168
8.4 Industrial Gate
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ
ÔÔ

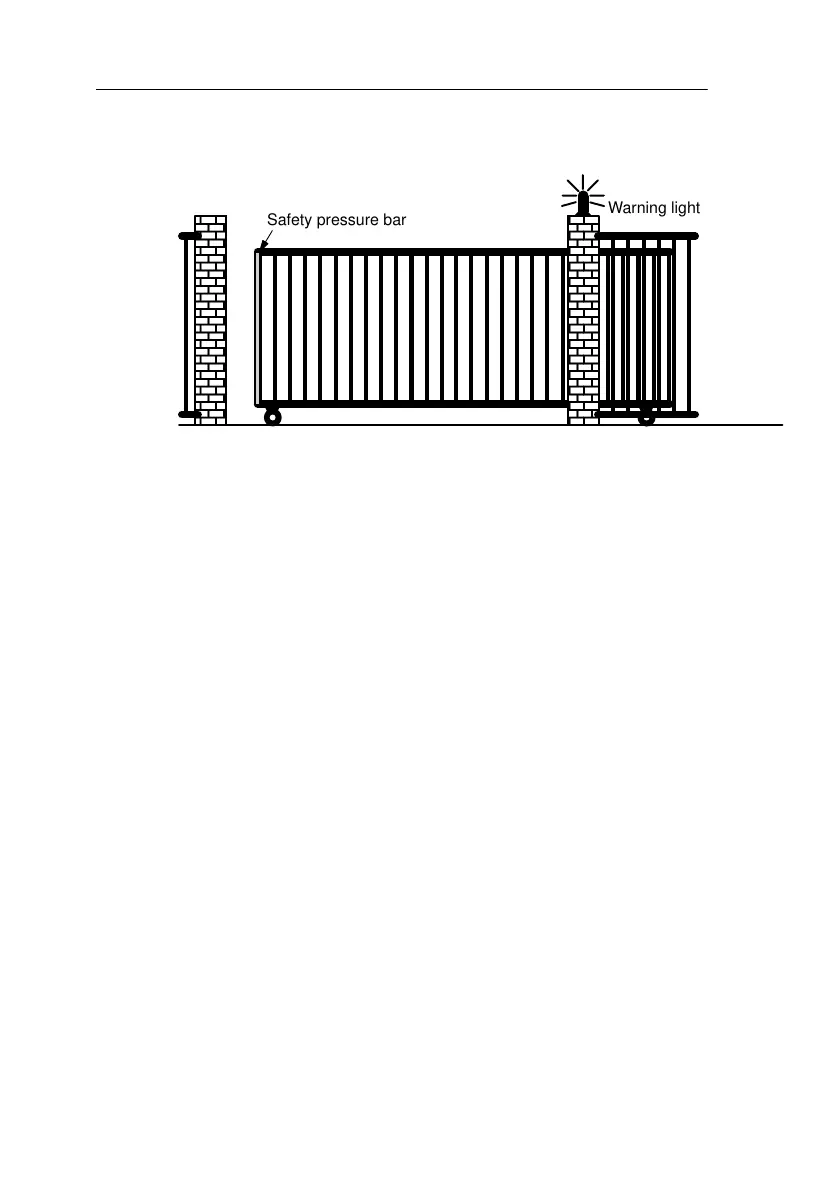

Warning light
Safety pressure bar
There is often a gate at the entrance to a company’s prem-
ises. This is only opened to let vehicles in and out.
The gate is controlled by the gateman.
8.4.1 Demands on the Gate Control System
The gate is opened and closed by operating a switch in
the gatehouse. The gateman is able to monitor the op-
eration of the gate at the same time.
The gate is normally fully opened or closed. However,
movement of the gate can be halted at any time.
A flashing light is activated 5 seconds before the gate
begins to move and continues for as long as the gate is
in motion.
A safety pressure bar ensures that nobody gets injured
and nothing gets trapped or damaged when the gate
closes.
