LOGO! ...L...
L1
N
L3
L2

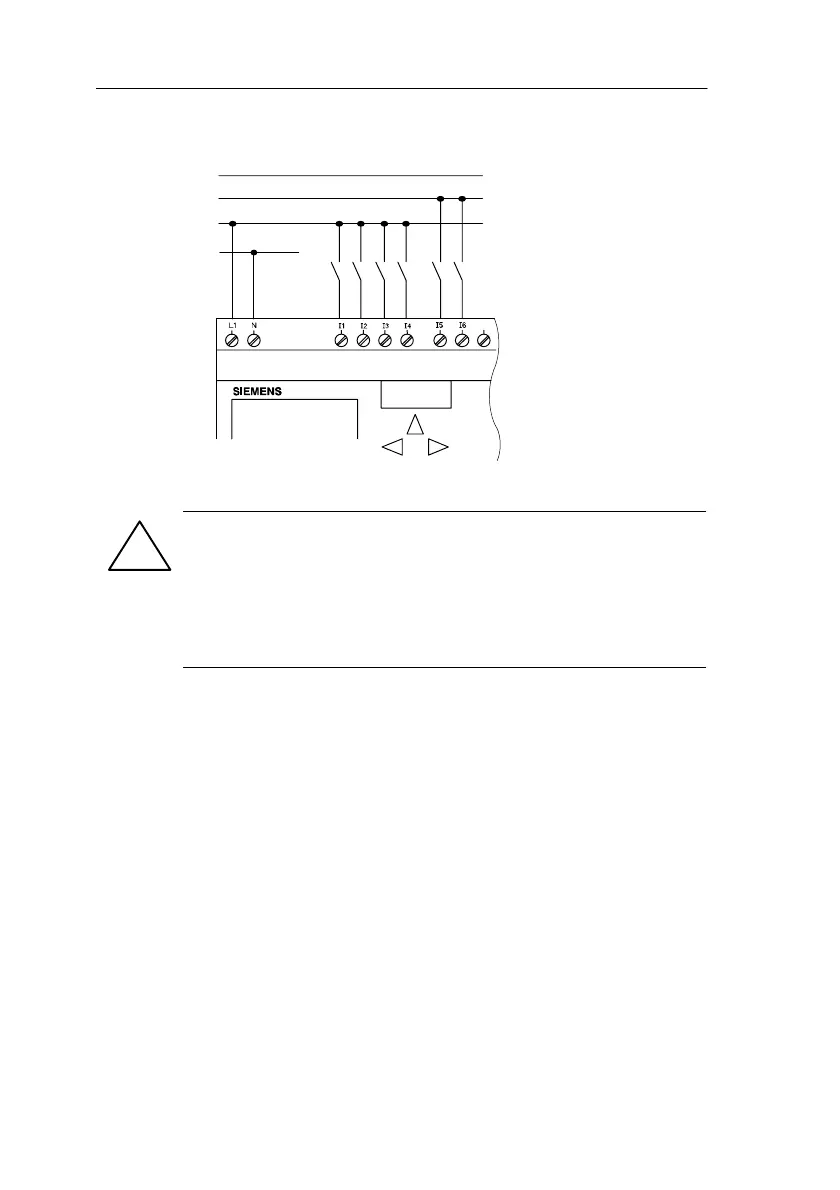

The inputs of LOGO!
...L.. are grouped in
groups of 4 inputs.
The same applies to
these groups as for
the individual inputs of
a standard LOGO!.
Different phases are
possible only between
the blocks.
!
Warning
Existing safety regulations (VDE 0110, ... and
IEC 1131, ..., as well as UL and CSA) prohibit
the connection of different phases to one input
block of LOGO! ...L...
