LOGO! Manual
A5E00067781 01
20
LOGO! with transistor outputs
LOGO! variants with transistor outputs can be identified by
the fact that the letter R is missing from their type designa-
tion. The outputs are short circuit-proof and overload-proof.
A separate voltage supply to the load is not necessary
since LOGO! supplies the load with voltage.
Prerequisites for transistor outputs
The load connected to LOGO! must have the following
properties:
The maximum switched current is 0.3 amperes per out-
put.
Connecting

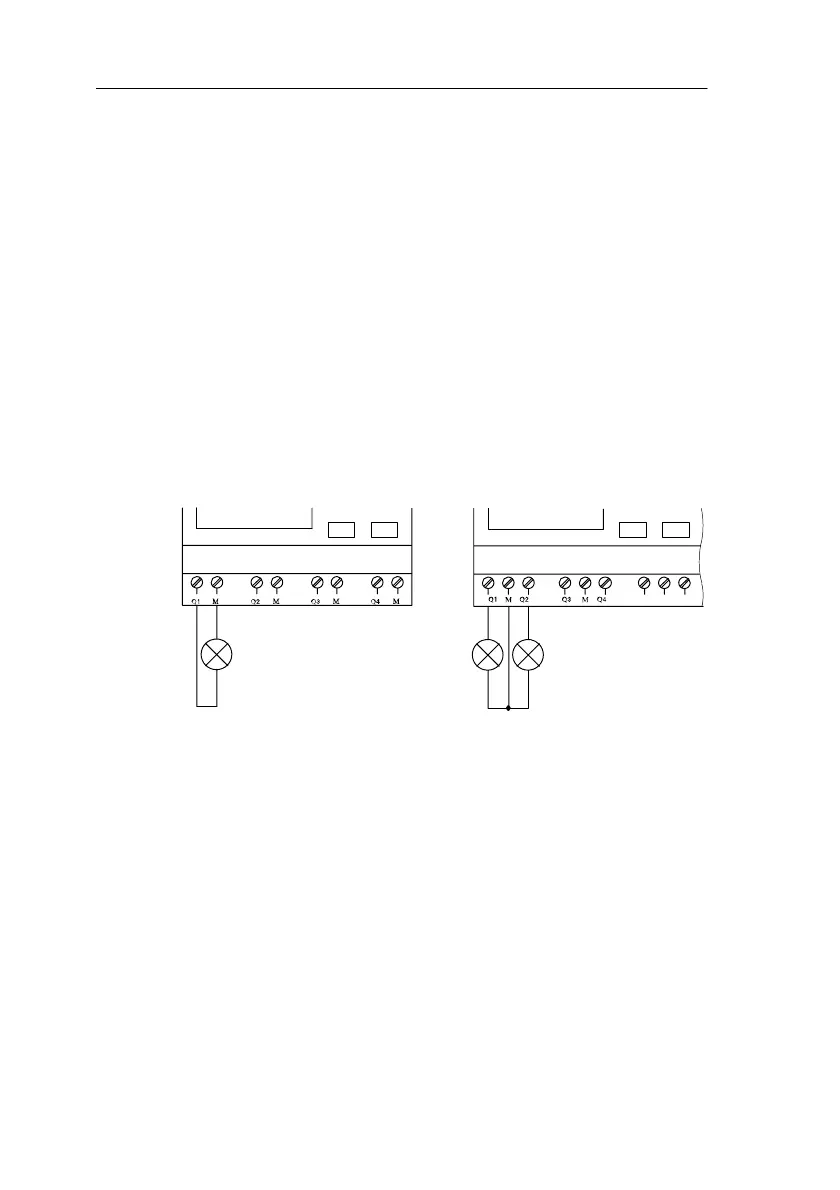

To connect the load to LOGO! with transistor outputs, pro-
ceed as follows:
Load: 24 V DC, 0.3 A max.
LOGO! 24
LOGO! 24L
Load
Load Load
Installin
and Wirin
LOGO!
