5-6
Primer: S7-300 Programmable Controller, Quick Start
C79000-G7076-C500-01
You must fill in a configuration table according to the hardware configuration
of your S7-300. The relevant position in the configuration table is assigned to
the actual slot in your mounting rack.

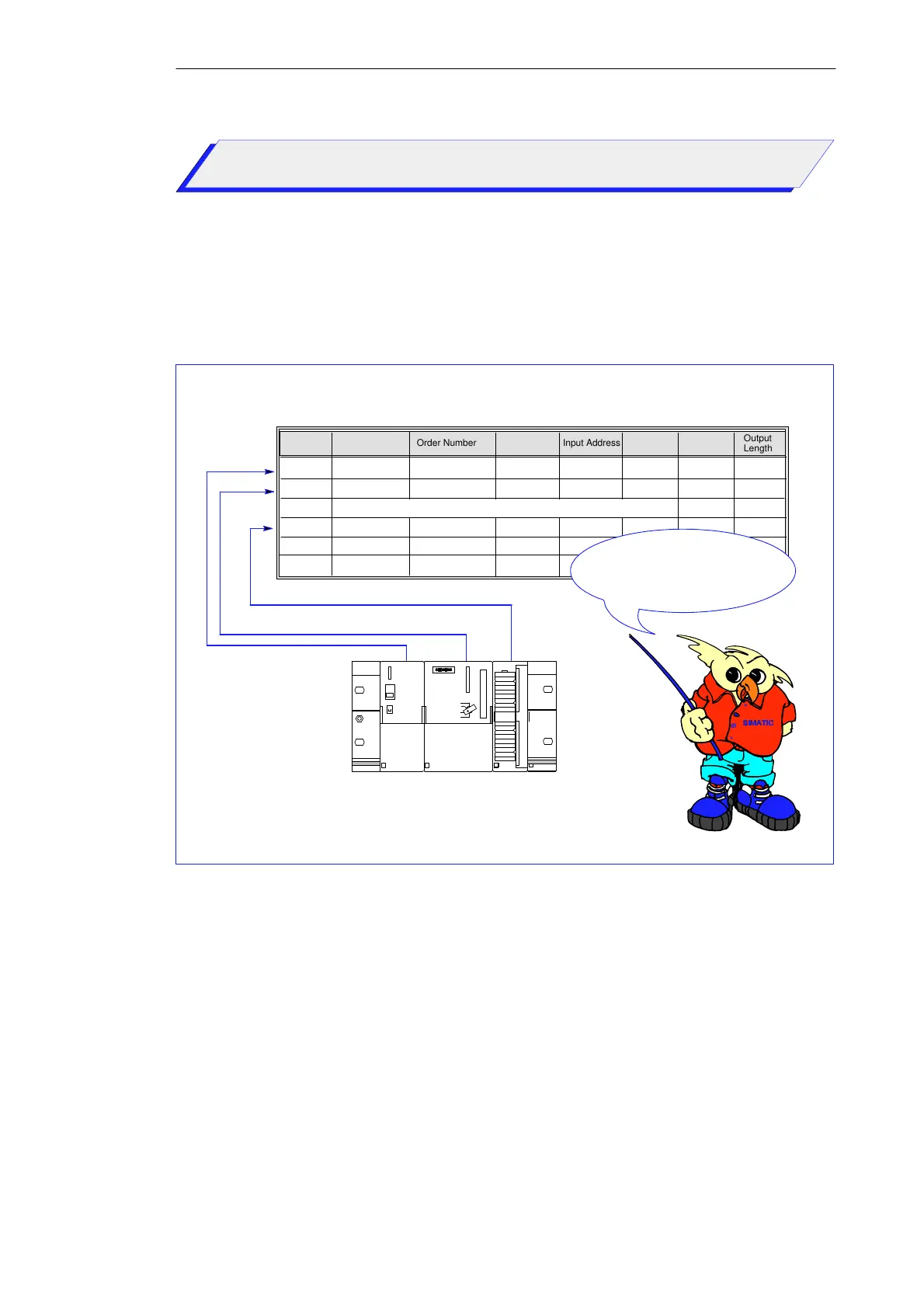

Figure 5-2 shows you an example of converting the actual configuration of
your S7-300 to the configuration table:
Output
Length
Slot numbers:
Detailed view of the configuration table
Physical configuration of your S7-300
Mounting rack 0
12
Order Number Input Address
Output
Address
Slot Module MPI Address Input Length
1
2
4
PS ...
CPU ...
SM ...
6ES7...
6ES7...
6ES7...
3
4
5
6
2
This line remains blank since it is reserved for an IM!
As you can see,
configuring your S7-300
is really quite easy!
Figure 5-2 From Your S7-300 Configuration to the Configuration Table
Configuration
Table Example
Configuring and Assigning Parameters to Your S7-300
What Does a Configuration Table Look Like?
