Siemens 6ES7151-1BA02-0AB0 - Installation Constraints; Terminal Assignment

Properties
1.1 IM151-1 HIGH FEATURE interface module (6ES7151-1BA02-0AB0)
IM151-1 HIGH FEATURE interface module (6ES7151-1BA02-0AB0)
8 Manual, 03/2008, A5E01075975-02
Installation constraints
● For every 2DO 24 to 230 V AC electronic module used, the number of connectable I/O
modules in this station is reduced by one.
● The following modules cannot be used with the IM151-1 HIGH FEATURE:
Module Up to order number Up to product version
1COUNT 24V/100kHz 6ES7138-4DA02-0AB0 1
1COUNT 5V/500kHz 6ES7138-4DE00-0AB0 1
1SSI 6ES7138-4DB00-0AB0 3
1STEP 5V/204kHz 6ES7138-4DC00-0AB0 3
1SI serial interface module 6ES7138-4DF00-0AB0 1
Modbus/USS serial interface module 6ES7138-4DF01-0AB0 1
2AI U; HIGH FEATURE 6ES7134-4LB00-0AB0 1
2AI I 2/4DMU; HIGH FEATURE 6ES7134-4MB00-0AB0 1
2AO U; HIGH FEATURE 6ES7135-4LB00-0AB0 1
Terminal assignment
The following table shows the terminal assignment of the IM151-1 HIGH FEATURE interface
module for the 24 VDC voltage supply and PROFIBUS DP:

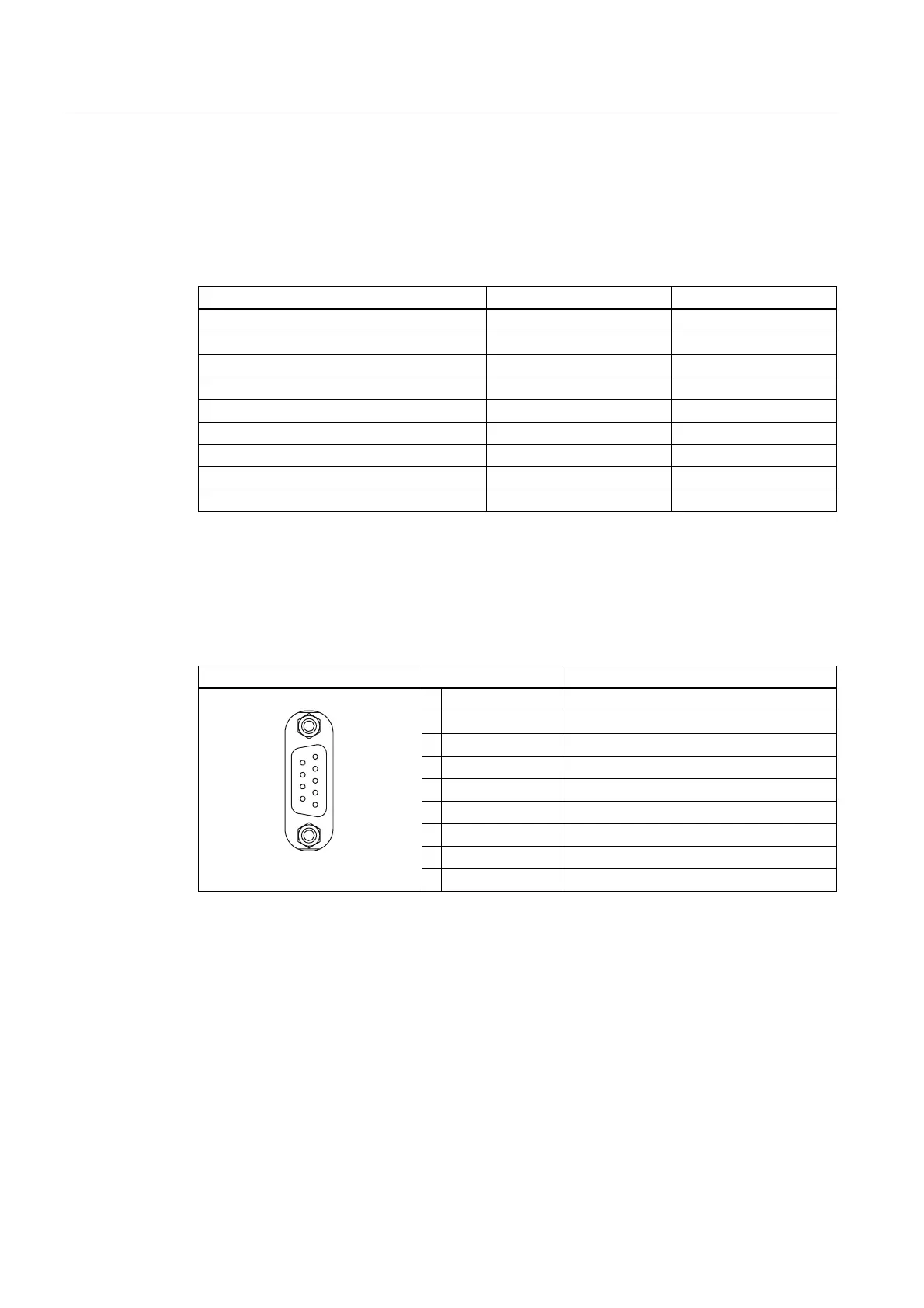

Table 1- 1 Terminal assignment of the IM151-1 HIGH FEATURE interface module
View Signal name Name
1- -
2- -
3 RxD/TxD-P Data line B
4 RTS Request To Send
5 M5V2 Data reference potential (station)
6 P5V2 Supply plus (station)
7- -
8 RxD/TxD-N Data line A









9
