09.02 Connection
Siemens AG 6SE7087-6AK85-1AA0
3-35
Rectifier/Regenerating Unit Operating instructions
V14 V16
V21 V23 V25
V12
V11 V13 V15
V22V26V24
Level B (rear level)
Level A (front level)

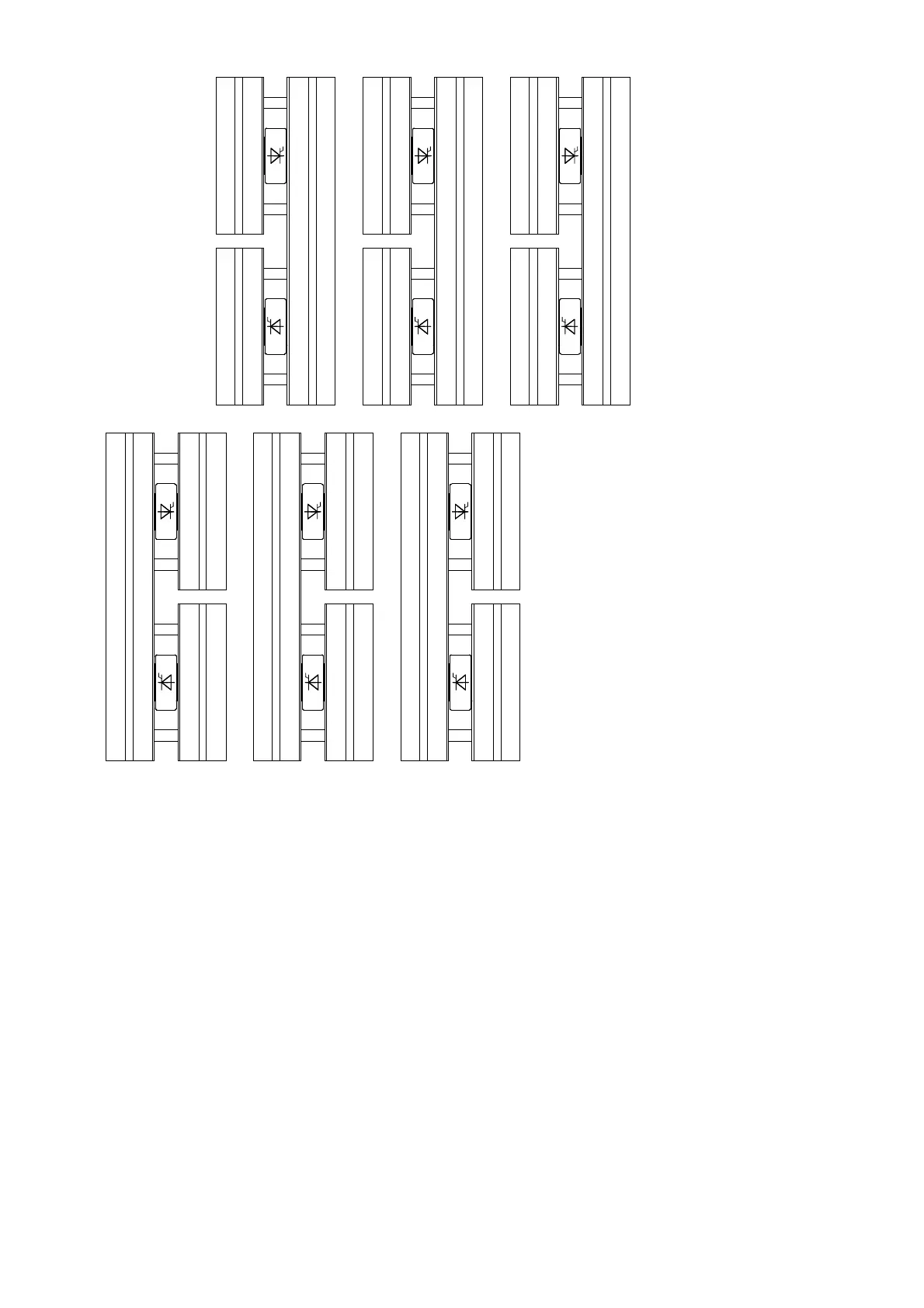

Figure 3.24 Arrangement of the thyristor blocks, Size H (see dimension drawing in Section 2.4)
