Siemens 6SE7032-2EE85-1AA0 User Manual

Start-Up 09.02
4-10 Siemens AG 6SE7087-6AK85-1AA0
Rectifier/Regenerating Unit Operating Instructions

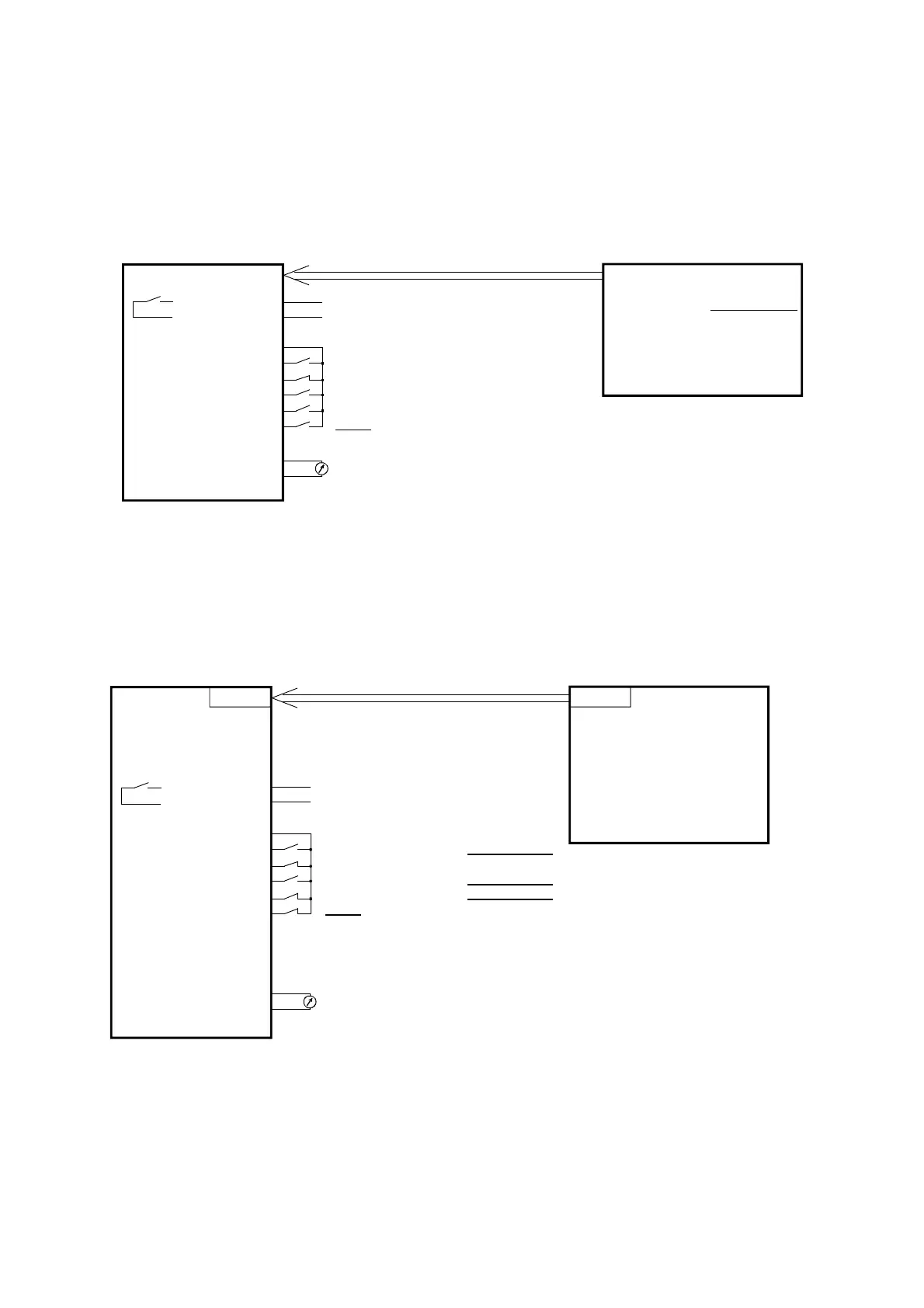

4.2.5 Simple application examples for connecting process data with connection assignment
Connecting-up: Refer to Section 3.3 "Control terminal strip"
Factory setting:
Switch-on/off via the PMU, messages and actual values via the terminal strip.
Terminal strip only operational if binary input 5 (BE5) is energized (high signal level corresponds to "reserve").
CUR PMU
P554.1 = 1010
ON/OFF1
Floating contact
Fault
ON/OFF1
OFF2 (pulse inhibit)
Acknowledge
Basic
/reserve
(activates above commands)
Actual Ud value
P603.1 = 1002
P554.2 = 1001
P555.2 = 1002
P565.2 = 1003
P590 = 1005
P655.1 = 37
-X104/19 BA2
-X104/20 BA2
-X101/6 P24
-X101/9 BE1
-X101/10 BE2
-X101/11 BE3
-X101/12 BE4
-X101/13 BE5
-X102/15 AAM
-X102/14 AA
Manual/automatic operation:
Automatic operation (BE5 high signal level): Command input from the automation unit via serial interface
(SST1), the monitoring of external faults via a terminal strip also
possible.
Manual operation (BE5 low signal level): Command input via the terminal strip.
CUR SST1
P554.2 = 2001
P565.2 = 2001
SST
ON/OFF1
Acknowledge
Actual Ud value
Floating contact
Operation
ON/OFF1
Acknowledge
Fault external 1
Basic
/reserve
Automation unit
P602.1 = 1002
P554.1 = 1001
P565.1 = 1003
P575.1 = 1004
P575.2 = 1004 (always activ)
P590 = 1005
P655 = 37
-X104/19 BA2
-X104/20 BA2
-X101/6 P24
-X101/9 BE1
-X101/10 BE2
-X101/11 BE3
-X101/12 BE4
-X101/13 BE5
-X102/15 AAM
-X102/14 AA
