Mounting and Commissioning
3.1 Mounting and Connections
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A5, Release date 11.2012
314

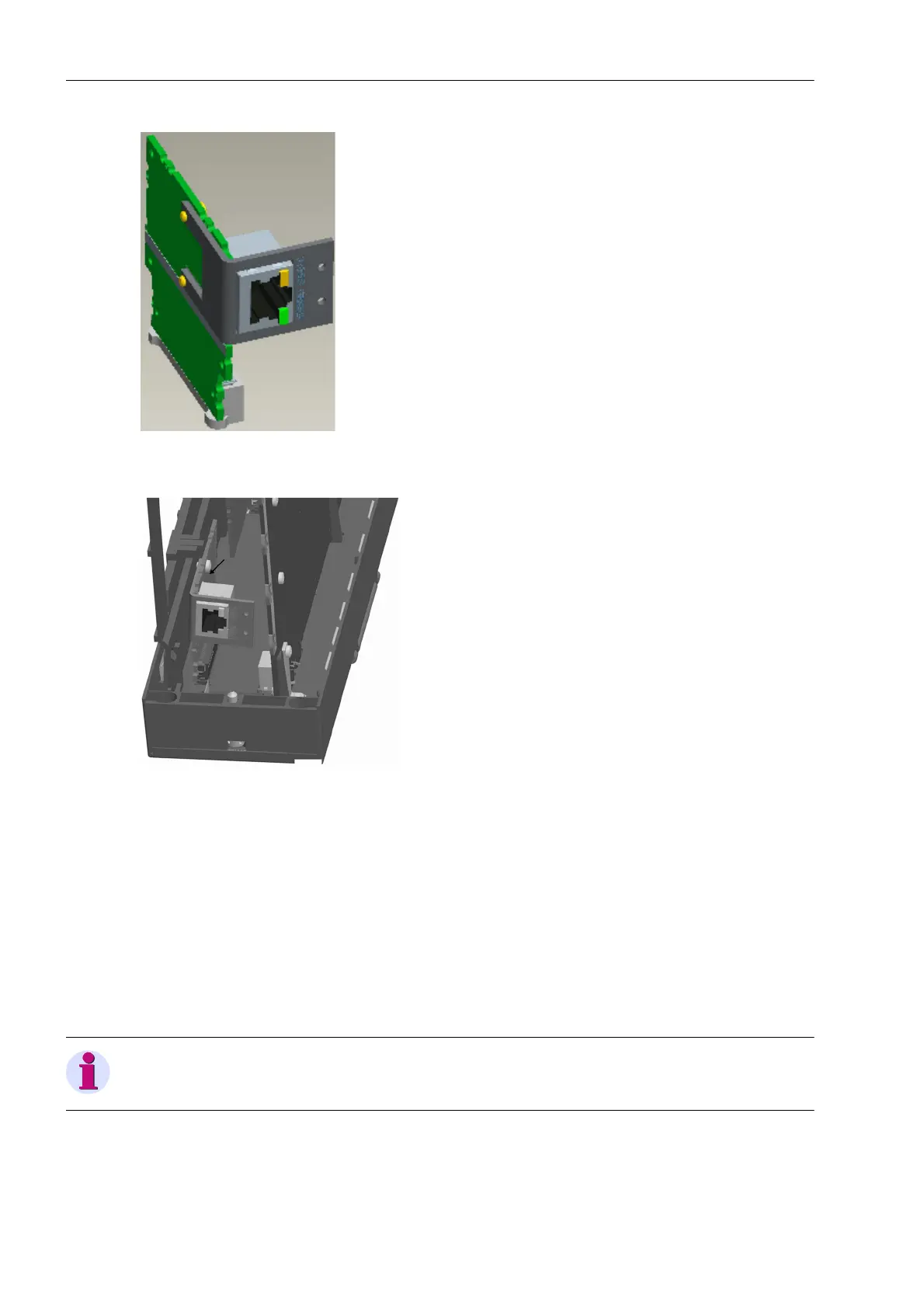

Figure 3-9 Ethernet interface with support frame
Figure 3-10 Installation of the Ethernet interface
Now, a SIPROTEC 4 communication module can be installed (see Section Installation or Replacement of a
SIPROTEC 4 Communication Module). Otherwise, the device can be reassembled again (see Section Reas-
sembly).
Installation or Replacement of a SIPROTEC 4 Communication Module
The following description assumes the normal case that a SIPROTEC 4 communication module which has not
yet been existing is retrofitted.
If a SIPROTEC 4 communication module has to be removed or replaced, the steps are to be performed in
reverse order.
Note
The installation can only be performed alone or after the installation of the Ethernet module.
