Siemens 7SK80 - Terminal Assignments

Appendix
A.2 Terminal Assignments
SIPROTEC, 7SK80, Manual
E50417-G1140-C344-A5, Release date 11.2012
423
A.2 Terminal Assignments
A.2.1 7SK80 — Housing for panel flush mounting and cubicle installation and for
panel surface mounting
7SK801*

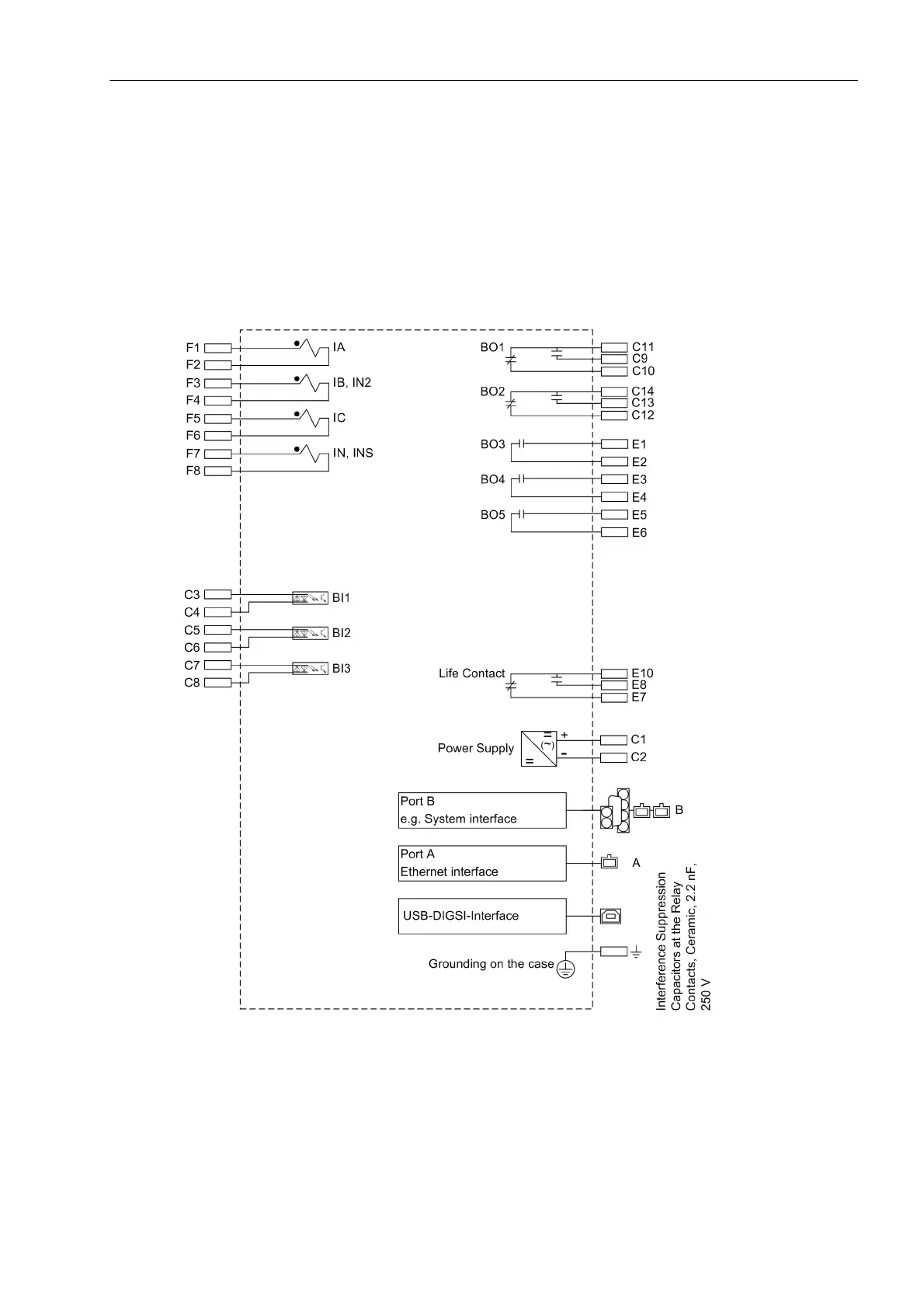

Figure A-1 Block diagram 7SK801*
