Administration
A31003-S2000-M102-3-76A9, 08/07/2009
3-164 Asterisk - OpenStage Family, Administration Manual
administration.fm
Diagnostics
Non-compressing codecs / Compressing codes:
• Lost packets (per 1000 packets): When the number of lost packets exceeds this maxi-
mum value during the observation interval, a report is created.
Default: 10.
• Consecutive lost packets: When the number of lost packets following one another ex-
ceeds this maximum value during the observation interval, a report is created.
Default: 2.
• Consecutive good packets: When the number of good packets following one another falls
below this minimum value, a report is created.
Default: 8.
• Resend last report: If checked, the previous report is sent once again on pressing Sub-
mit.
Value range: "Yes", "No".
Default: "No".
The transmission of report data can be triggered manually by pressing Send now in the local
menu.

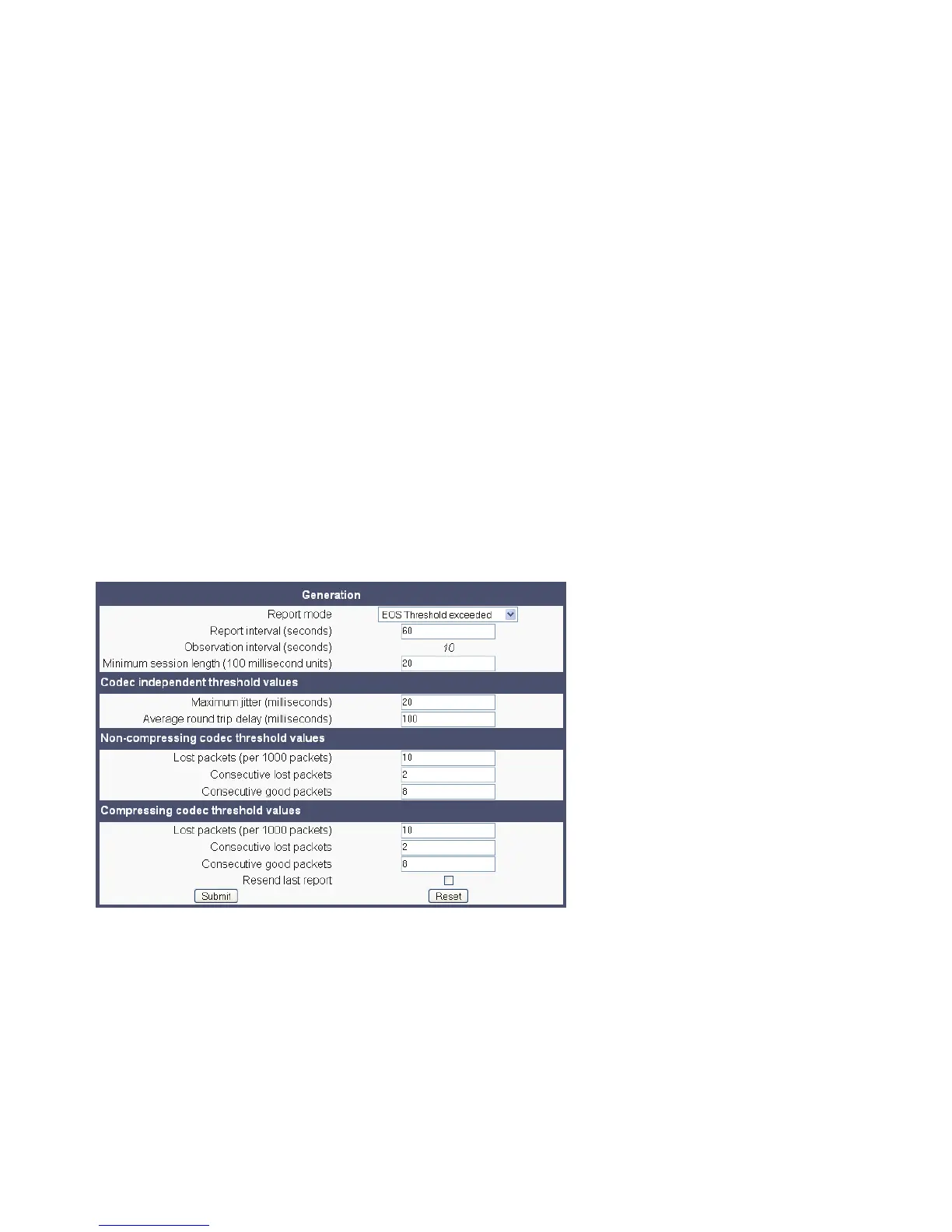

Administration via WBM
Diagnostics > QoS Reports > Generation
