LAN Settings
3.2.2.3 Manual configuration of a VLAN ID
To configure layer 2 VLAN manually, first make shure that VLAN discovery is set to "Manual"
(see Section 3.2.2.1, “Automatic VLAN discovery using DHCP”). Then, the phone must be pro-
vided with a VLAN ID between 1 and 4095. If you mis-configure a phone to an incorrect VLAN,
the phone will possibly not connect to the network. In DHCP mode it will behave as though the
DHCP server cannot be found, in fixed IP mode no server connections will be possible.
Administration via WBM

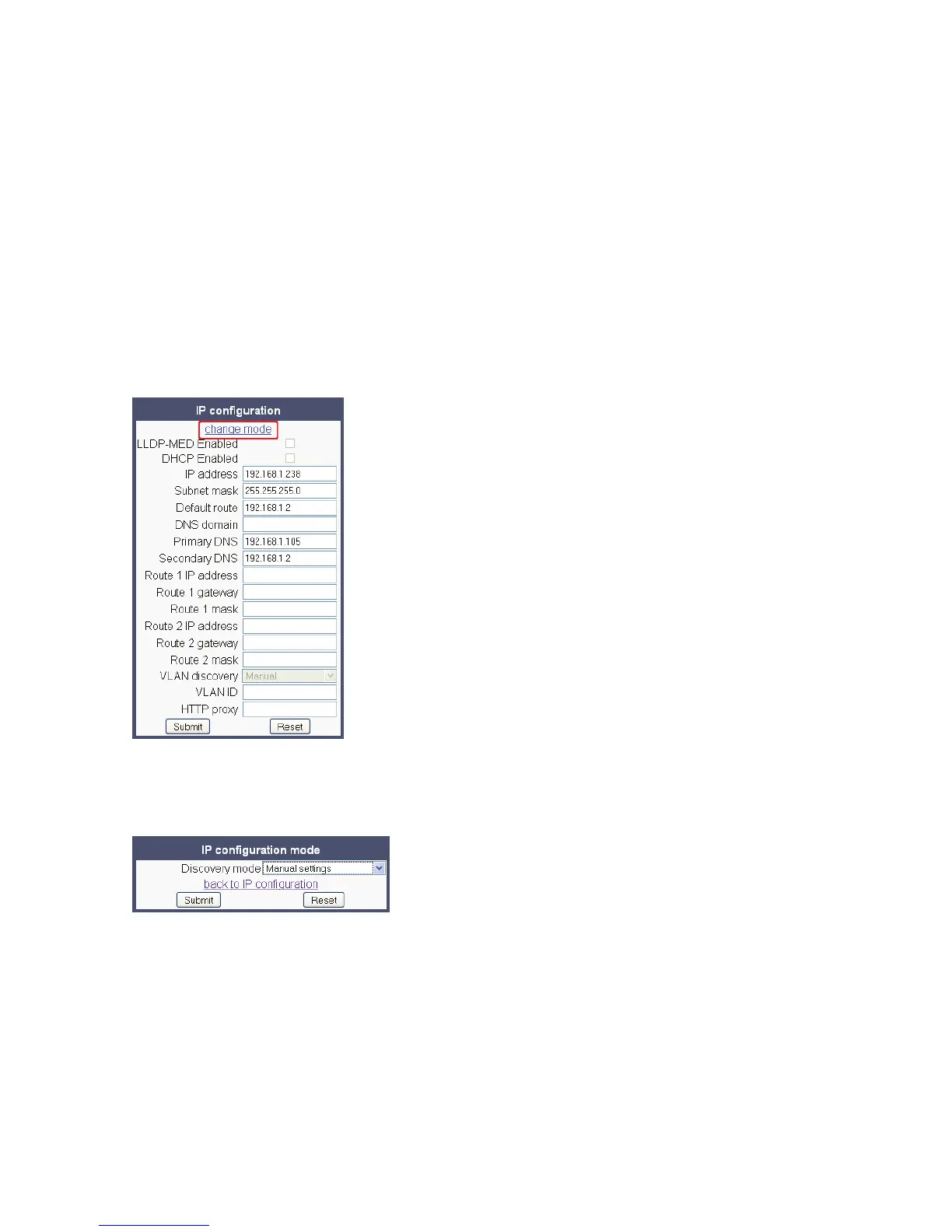

Network > IP configuration
First, click on change mode. Afterwards, the IP configuration mode dialog opens.
Network > IP configuration > change mode
To enable manual VLAN configuration, select Manual settings in the Discovery mode menu.
Afterwards, click Submit.
