Siemens Codoor CD3500 - Fitting CD3500 to Door

CD3500 & CD4000 Installation and User manual 9
ENG

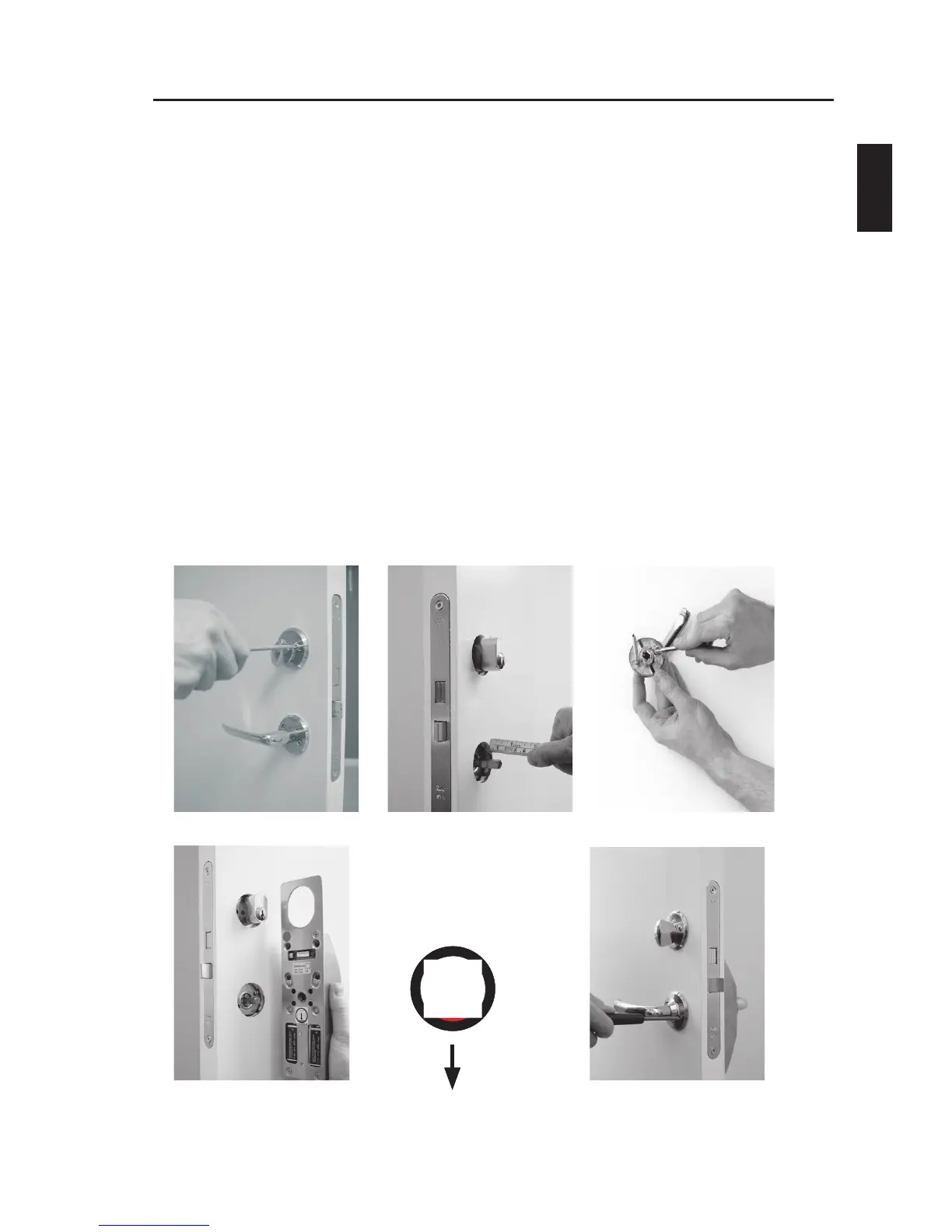

Fitting CD3500 to door
Remove the cylinder ring and the door handle from the door by
loosening the four screws. See figure 1.
Ensure that the handle spindle does not project more than 20
mm on the outside of the door. If the spindle is too long, push it
through into the handle on the inside. If this cannot be done, cut
the spindle to the right length. See figure 2.
Prepare the handle by extending the screws with the supplied
extension sleeves (M4 or M5). See figure 3.
Make sure that the red mark on the follower points downwards.
See figure 4.
Place the CD3500 on the outside of the door with the handle
attached, and pass the lever handle spindle through the square
hole. See figure 4.
Tighten, not too hard, the four previously loosened screws to the
nipples (the screws for the handle first). See figure 5.
Figure 1 Figure 2 Figure 3
RED
Figure 4, CD3500 Figure 5
