Description of the device
1.3 PROFIBUS interface
CP 5623/CP 5624
Operating Instructions, 09/2013, C79000-G8976-C281-03
11

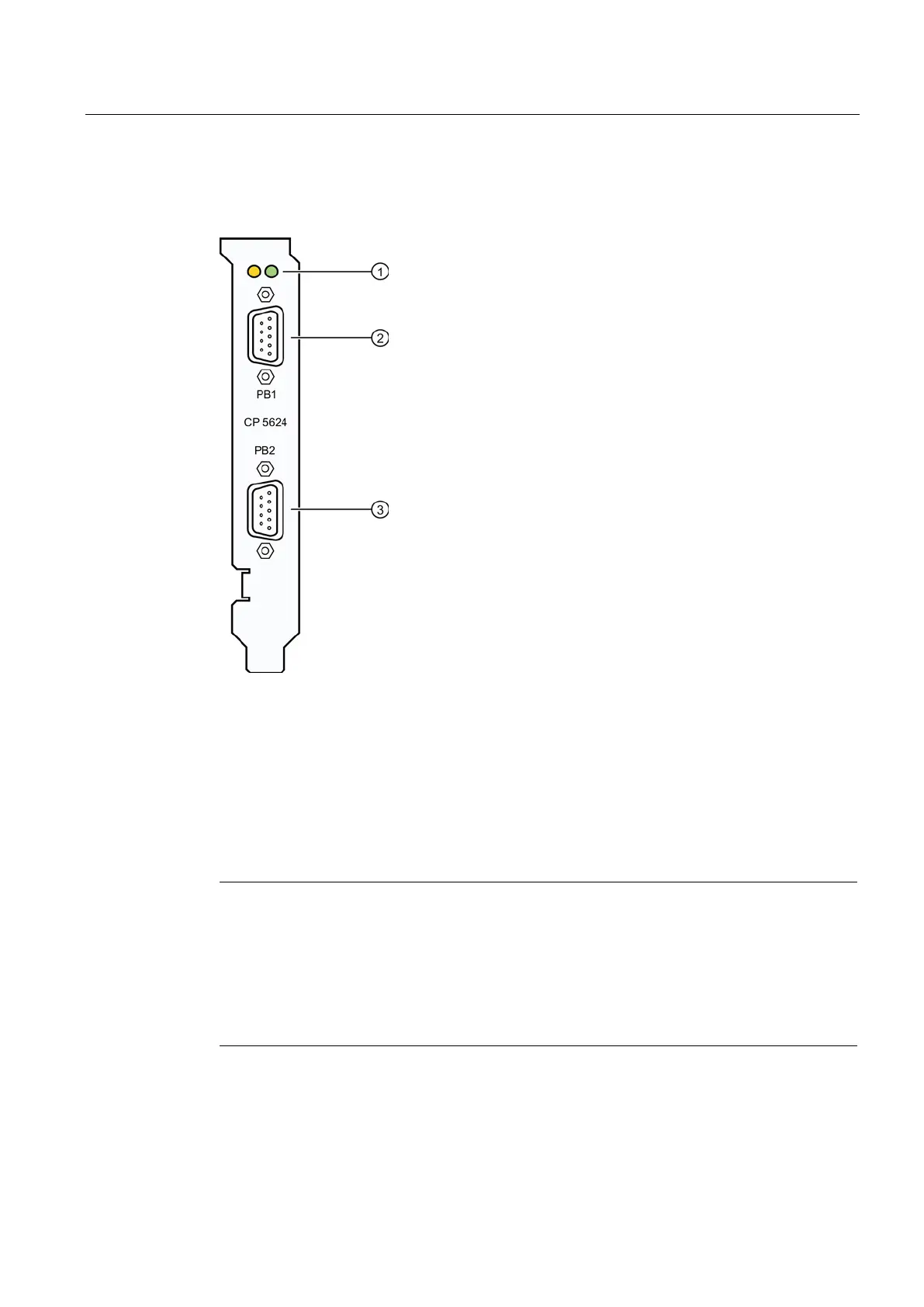

The following graphic shows the CP 5624 communications processor:
PROFIBUS interface PB1 (master only)
PROFIBUS interface PB2 (slave only)
Note
Connector with 180° cable outlet
Use the bus connector with a 180°
cable outlet if you want to use the lower PROFIBUS
connector (PB2, slave only) or both PROFIBUS connectors at the same time. You can obtain
these connectors, for example, under the following order numbers:
6GK1 500-0FC10
6GK1 500-0EA02
