Siemens CU240B-2 Compact Operating Instructions

Installing
3.4 Terminal strips on CU240E-2 Control Units
CU240B-2 and CU240E-2 Control Units
Compact Operating Instructions, 04/2015, A5E35792002B AA
15
Factory setting of the terminal strip on the CU240E-2
The factory setting of the terminal strip depends on the Control Unit.
Control Units with USS interface
The fieldbus interface is not active.
--- No function.
DO x: p073x
AO 0: p0771[0]
DI x: r0722.x
AI 0: r0755[0]
Speed setpoint (main setpoint): p1070[0] = 755[0]

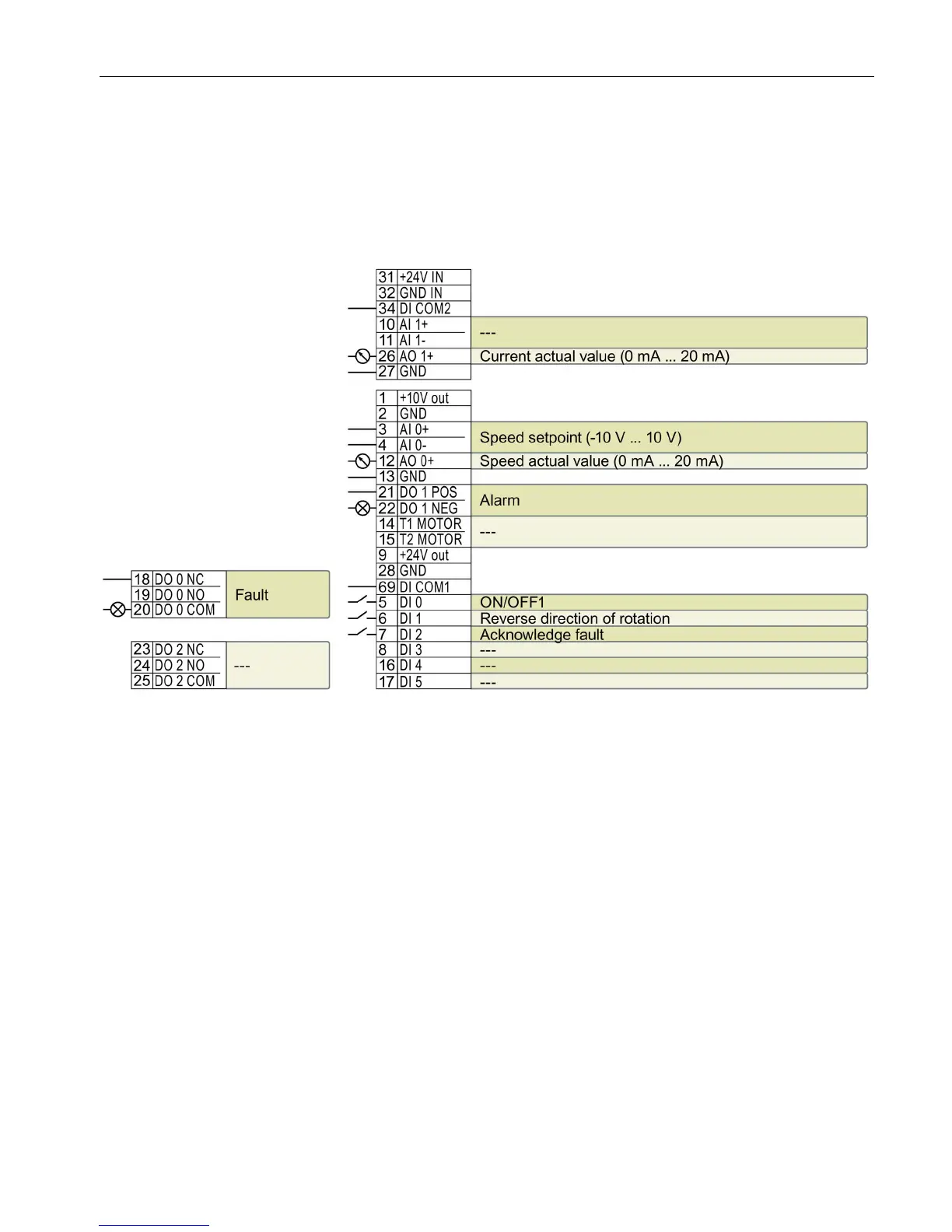

Figure 3-5 Factory setting of the CU240E-2 and CU240E-2 F Control Units
