Commissioning

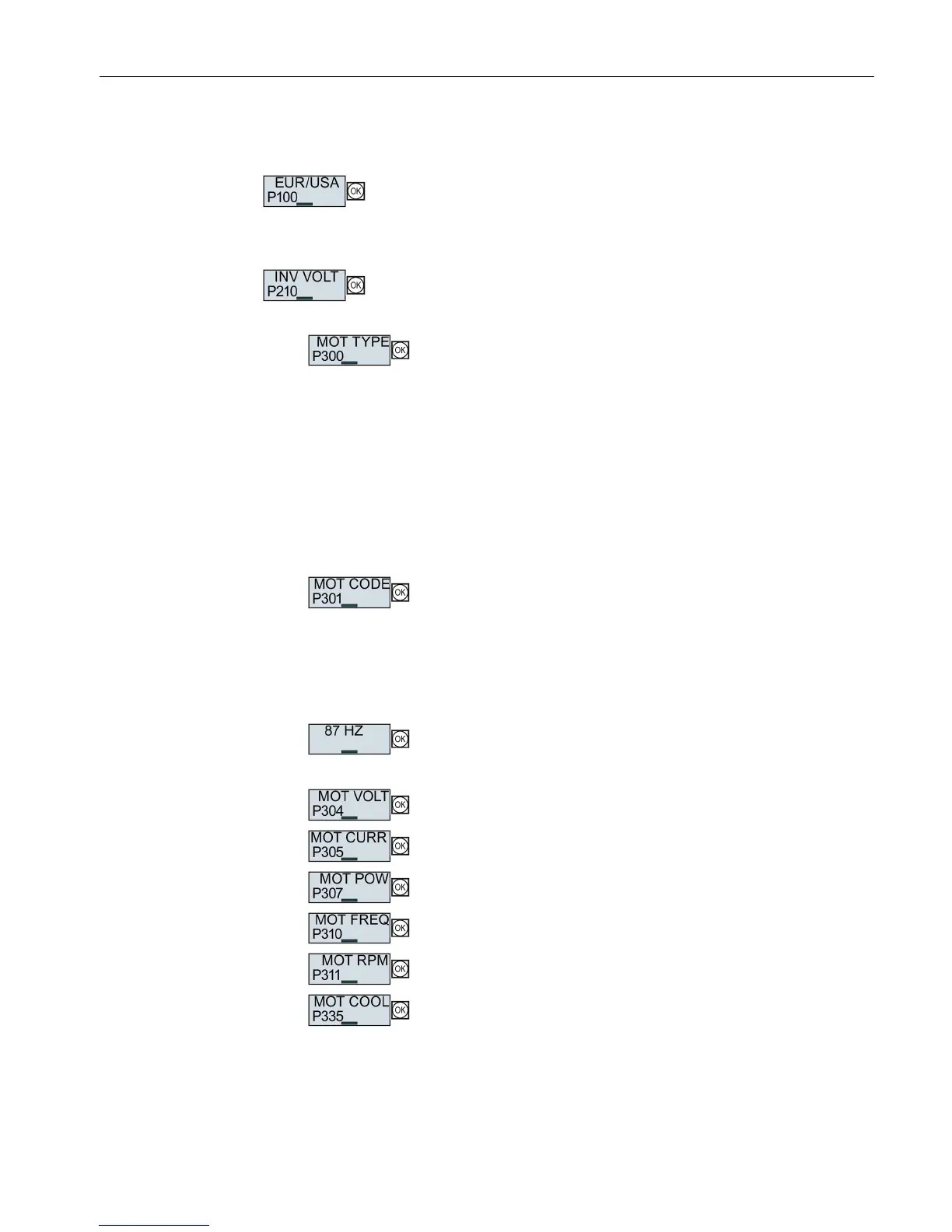

4.2 Commissioning with BOP-2 operator panel
CU240B-2 and CU240E-2 Control Units
Compact Operating Instructions, 04/2015, A5E35792002B AA
21
Supply voltage for the inverter
ing on the particular inverter, it is possible that the BOP-
2
does not list all of the following motor types.
Third-party induction motor
Third-party synchronous motor
Third-party reluctance motor
1LE1, 1LG6, 1LA7, 1LA9 induction motors
1LE1☐9 with motor code on the rating plate
1FG1, 1FK7 synchronous motor, without encoder
If you have selected a motor type > 100, then you must enter the
motor code:
With the correct motor code, the inverter assigns the motor data
the following values.
If you do not know the motor code, then you must s
= 0, and enter the motor data from p0304 and on
wards from
the rating plate.
-2 only displays this step if you previously selected IEC
as the motor standard (EUR/USA, P100 = KW 50HZ).
