Ports and controls
Drivers and utilities
If a Windows operating system is installed on your notebook, you will find additional
information on the system and drivers, help programs and updates on your notebook
or on our website "
www.fujitsu-siemens. com/support/".
If you have to reinstall your opera ting system, you will find the necessary information in
the "Recovery Process" manual (see "
Information sources", Page 3).

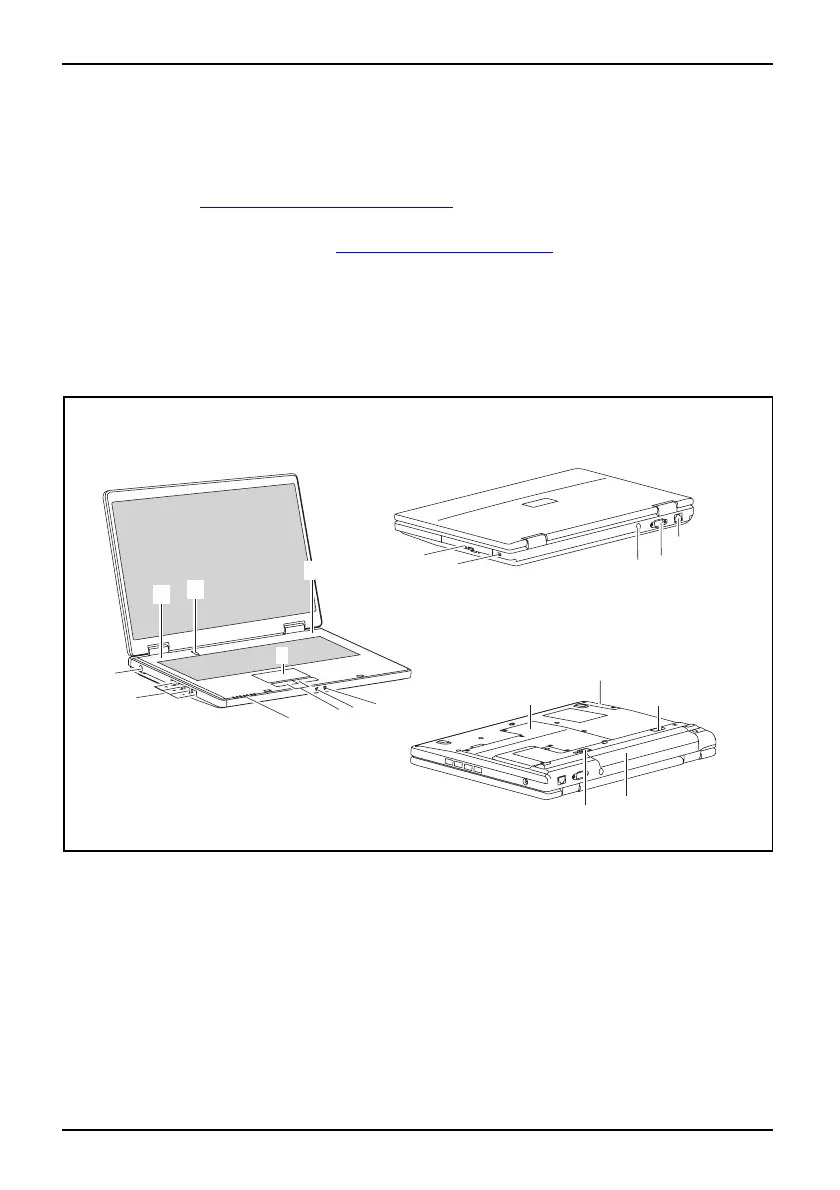

Ports and controls
Portsandcont rolsLCDscreenMonitorportBuilt-inspea kersSpeakerpor tWirelessLANKensingtonLockLAN portUSBportBatteryBatteryreleaselatchHarddiskTouchpadbuttonsTou ch pa dNoteboo kON/OFFswitchCD/DVDdriveHeadphoneportMicrophonepor tLineinLine outDCinputjack(DCIN)StatusindicatorsS-Videooutsocket
This chapter pre sents the individual hardware compo nents of your notebook. It gives an
overview of the displays and connections on the notebook. P lease familiarise yourself with
these components before you start to work with your notebook.
4
2
1
5
6
7
8
9
3
10
11
13
14
16
16
17
15
18
1
12
1 = Built-in speakers
2 = Notebook ON/OFF switch
3 = Touchpad
4 = Headphone socket / Line Out
5 = Microphone socket / Line In
6 = Touchpad buttons
7 = Status indicators
8 = USB ports
9 = DC input jack (DC IN)
10 = CD/DVD drive
11 = Kensington Lock
12 = S-Video out socket
13 = Monitor port
14 = LAN port
15 = Service compartment (hard disk)
16 = B attery release latch
17 = B attery
18 = Service compartment (memory)
4 - English 10600900852, edition 1
