Startup
A31003-S2010-M100-10-7619, 27/08/2008
2-4 HiPath 2000/3000/5000 - OpenStage Family, Administration Manual
inbetriebnahme.fm
Assembling and Installing the Phone
2.2.3 Assembly
1. Handset
Insert the plug on the long end of the handset cable into the jack on the base of the tele-
phone and press the cable into the groove provided for it. Next, insert the plug on the short
end of the handset cable into the jack on the handset.

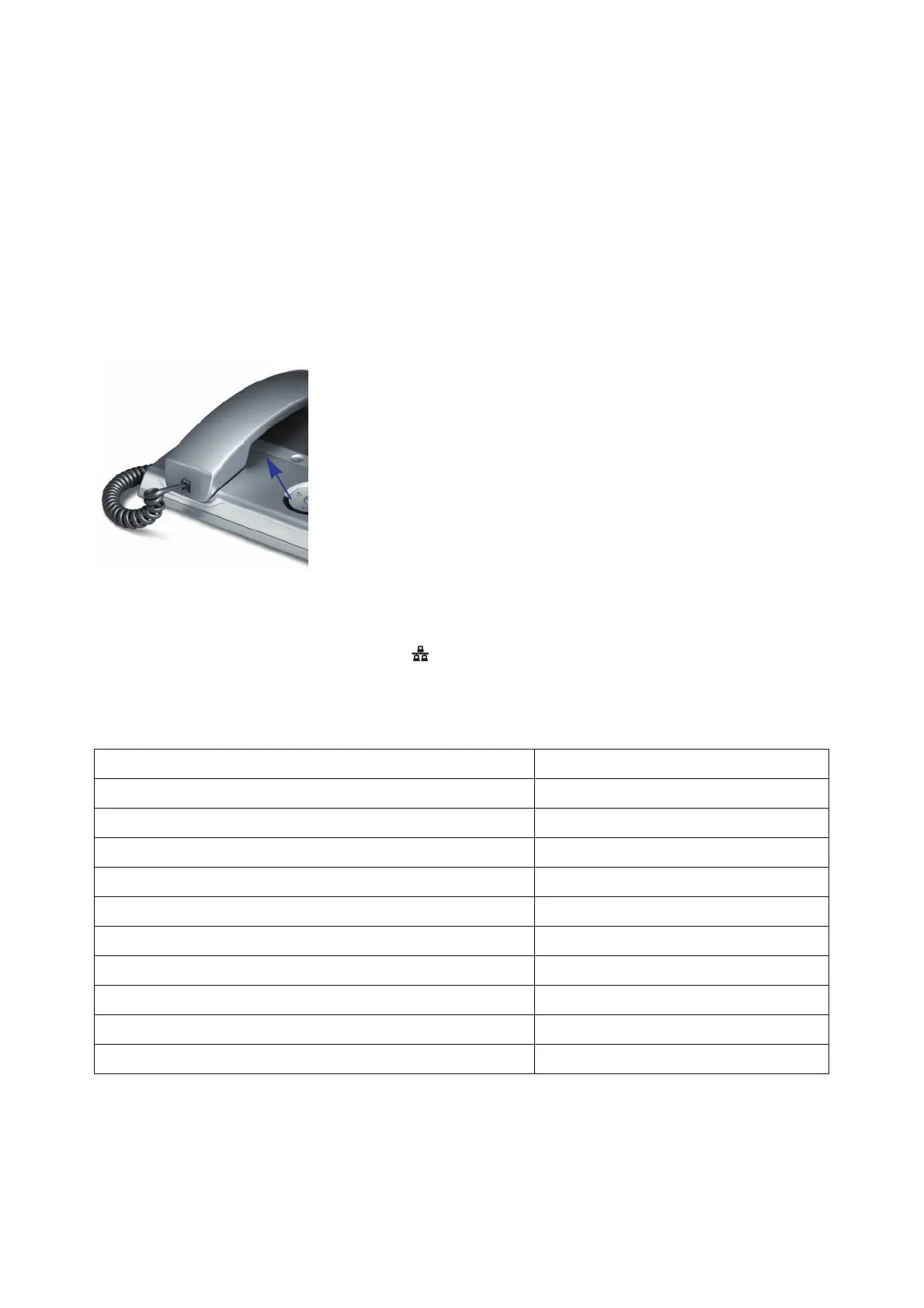

2. Emergency Number Sticker
Write your telephone number and those for the fire and police departments on the included
label and attach it to the telephone housing underneath the handset (see arrow).
2.2.4 Connecting the Phone
1. Plug the LAN cable into the connector at the bottom of the telephone and connect the
cable to the LAN/switch. If PoE (Power over Ethernet) is to be used, the PSE (Power
Sourcing Equipment) must meet the IEEE 802.3af specification.
For details about the required power supply, see the following table:
Model Power Consumption/Supply
OpenStage 20 Power Class 1
OpenStage 20 G Power Class 2
OpenStage 40
1
1 Includes 1 Key Module.
Power Class 2
OpenStage 40 + 2nd Key Module Power Class 3
OpenStage 40 G
1
Power Class 3
OpenStage 40 G + 2nd Key Module External power unit required
OpenStage 60/80
2
2 Includes 1 Key Module + USB-Extension with Acoustic Unit.
Power Class 3
OpenStage 60/80 + 2nd Key Module Power Class 3
OpenStage 60/80 G
2
Power Class 3
OpenStage 60/80 G + 2nd Key Module External power unit required
