Startup
Assembling and Installing the Phone
2.3.2 Assembly
1. Handset
Insert the plug on the long end of the handset cable into the jack on the base of the tele-
phone and press the cable into the groove provided for it. Next, insert the plug on the short
end of the handset cable into the jack on the handset.

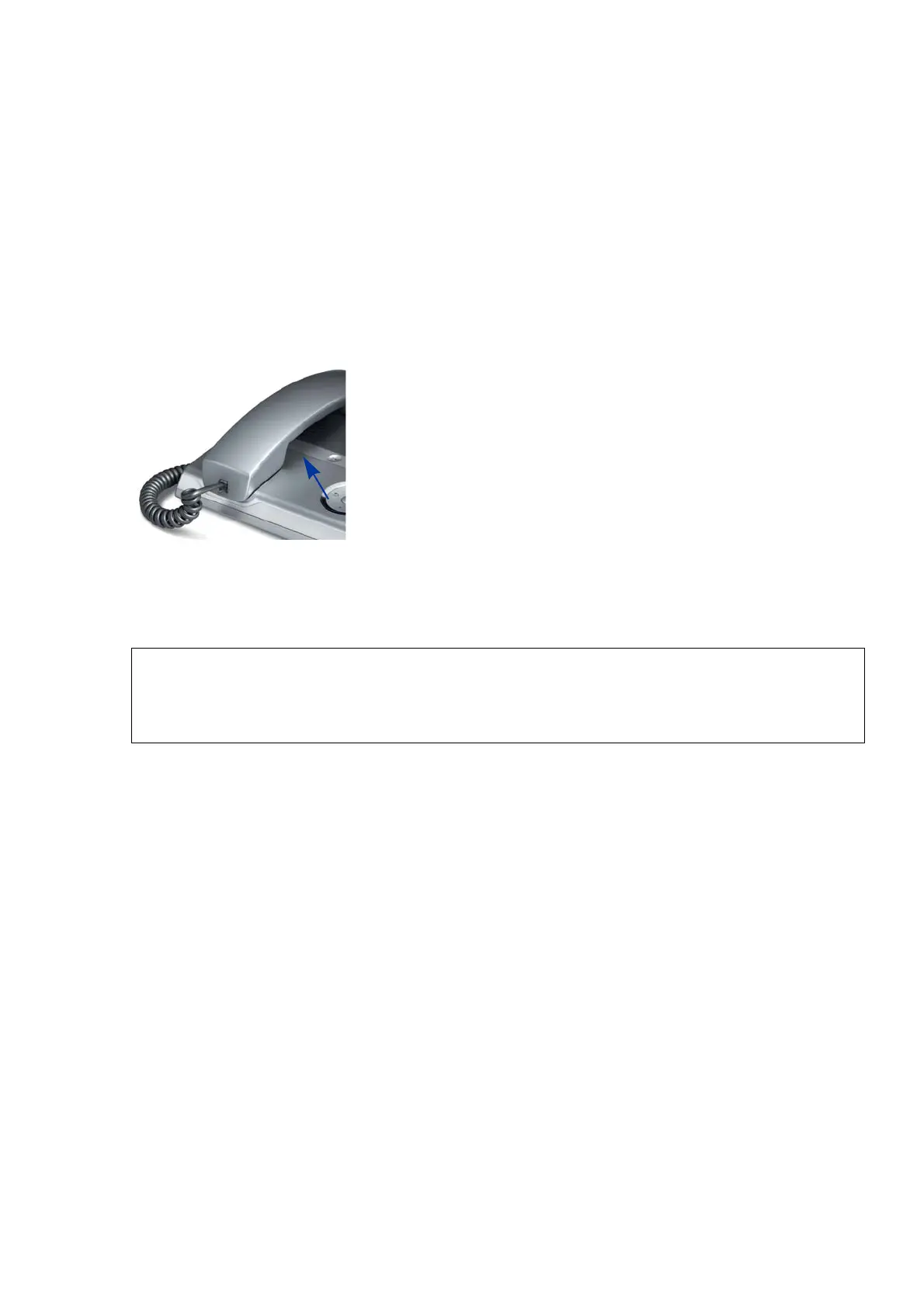

2. Emergency Number Sticker
Write your telephone number and those for the fire and police departments on the included
label and attach it to the telephone housing underneath the handset (see arrow).
2.3.3 Connecting the Phone
• Only if Power over Ethernet (PoE) is NOT supported:
1. Plug the power supply unit into the mains.
2. Connect the plug-in power supply unit to the jack at the bottom of the phone.
• Plug the LAN cable into the connector at the bottom of the telephone and connect the ca-
ble to the LAN. If PoE (Power over Ethernet) is to be used, the PSE (Power Sourcing Equip-
ment) must meet the IEEE 802.3af specification.
• If desired, connect the following optional jacks:
• LAN connection to PC
• Headset (accessory)
• Connection to add-on device (accessory)
• Connection to external keyboard (accessory)
• USB master for connection to a USB device (e. g. accessory USB Acoustic Adapter)
7
Use only the plug-in power supply unit fitting the OpenStage 60/80:
EU: C39280-Z4-C510
UK: C39280-Z4-C512
USA: C39280-Z4-C511
