Administration
LAN Settings
3.2.2.2 Manual configuration of a VLAN ID
To configure layer 2 VLAN and QoS manually, first make sure that QoS layer 2 and 3 are con-
figured as described in Section 3.3.1, “Quality of Service (QoS)”, and VLAN discovery is set to
"Manual" (see Section 3.2.2.1, “Automatic VLAN discovery (DHCP)”). Then, the phone must be
provided with a VLAN ID between 1 and 4095. If you misconfigure a phone to an incorrect
VLAN, the phone will possibly not connect to the network. In DHCP mode it will behave as
though the DHCP server cannot be found, in fixed IP mode no server connections will be pos-
sible.

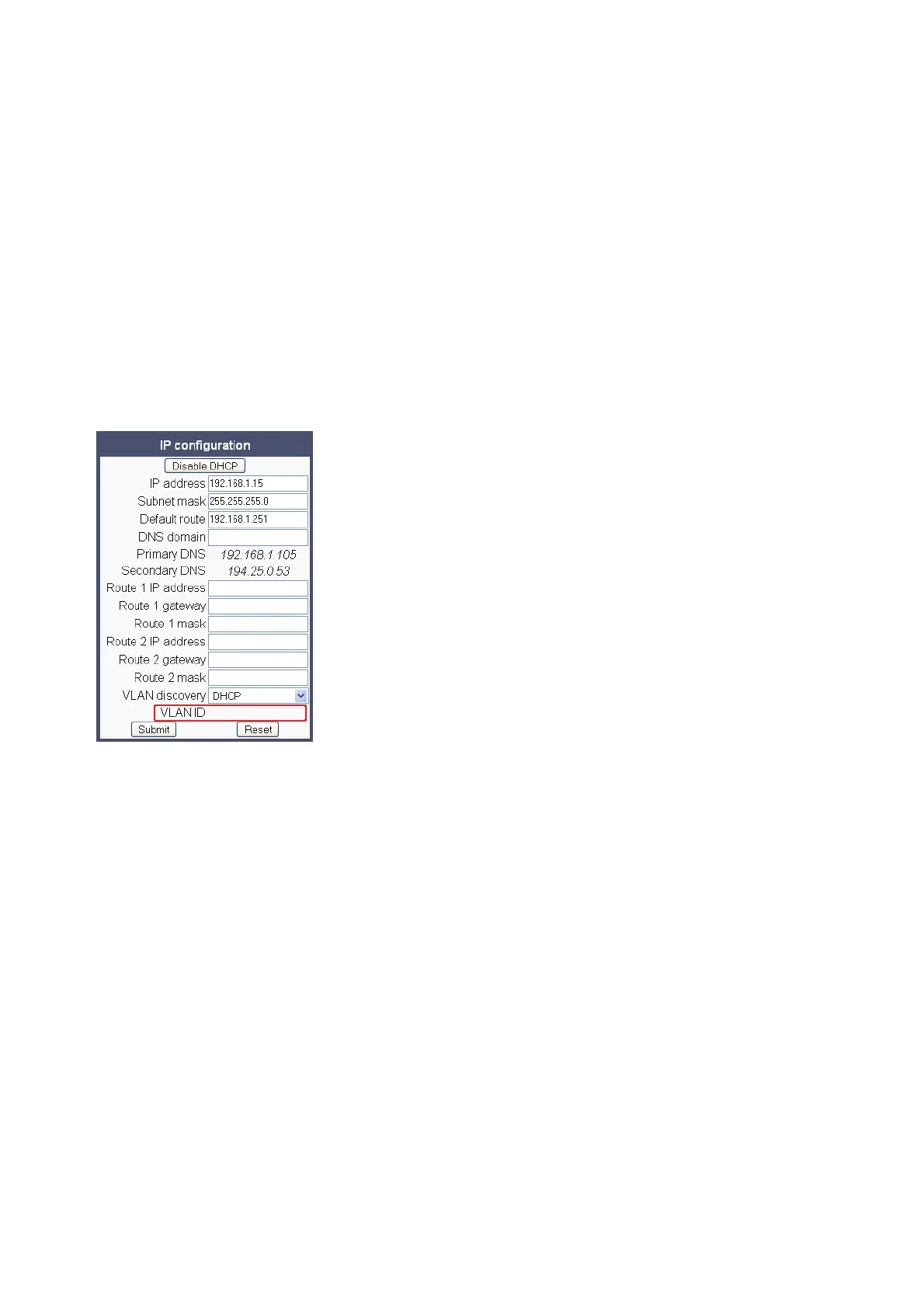

Administration via WBM
Network > IP configuration
Administration via Local Phone
|
--- Admin
|
--- Network
|
--- IP Configuration
|
--- VLAN ID
