Siemens HT-direct - Mounted External Fan; Table 8-5 External Fan; Figure 8-5 Mounted External Fan

Replacement parts
8.7 Mounted external fan
A5E01083943A AB
96 Siemens AG Operating Instructions 2.02 1FW4
8.7 Mounted external fan
Replacement parts






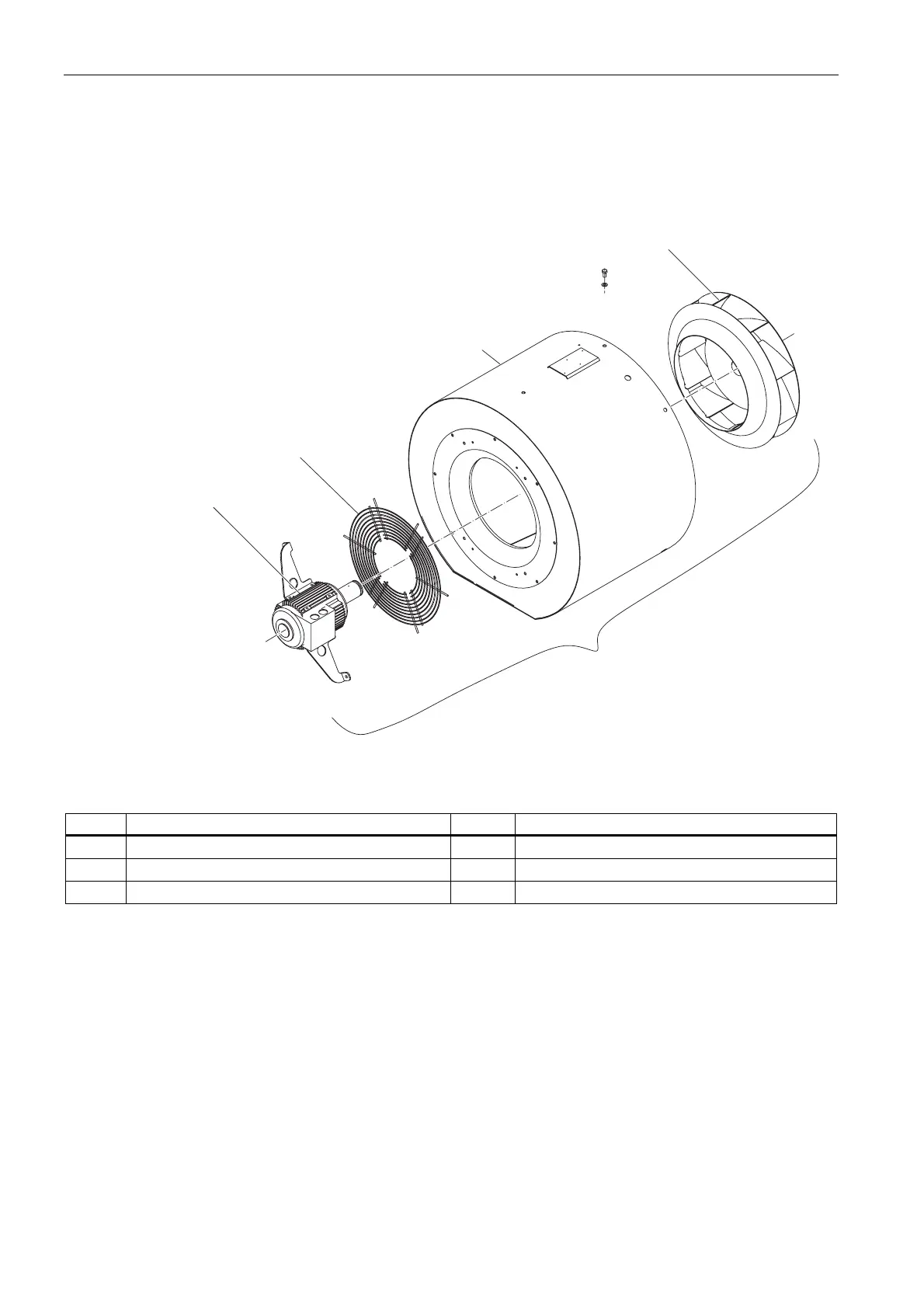

Figure 8-5 Mounted external fan
Table 8-5 External fan
Part Description Part Description
12.00 Fan cowl assembly 32.50 Fan motor IK (normal or internal fan)
32.10 Housing 32.53 Fan impeller
32.22 Guard for air inlet
