Multitouch operation with SINUMERIK Operate
3
3.1 Overview
Widescreen-format multitouch panels are optimized for multitouch operation, e.g. the OP 015
black, on which SINUMERIK Operate is active with the "SINUMERIK Operate Generation 2"
user interface.
Machine manufacturer
Activate user interface "SINUMERIK Operate Generation 2" using machine data
MD9112 $MM_HMI_SKIN.
Multitouch panel
23EODFN

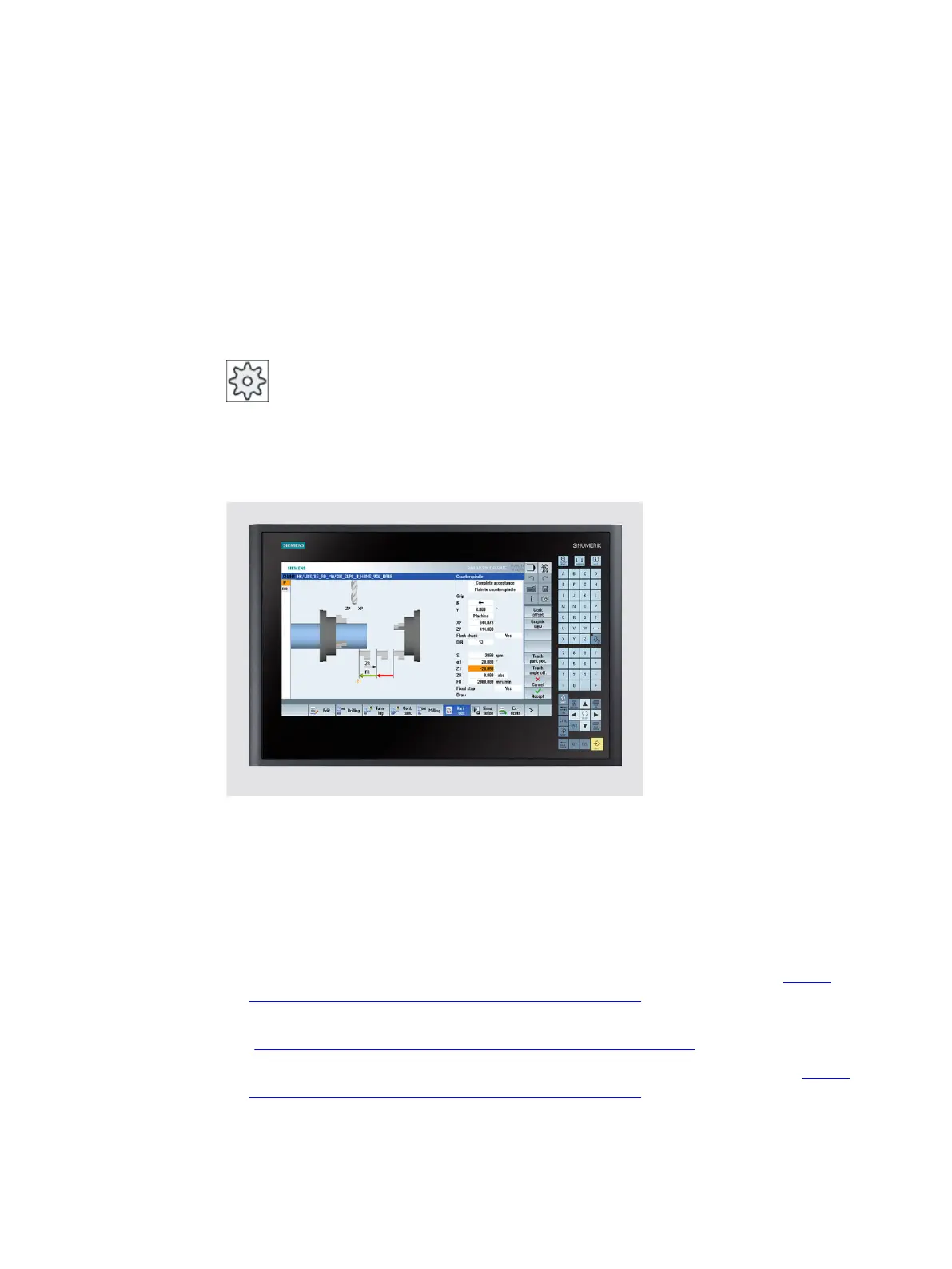

Figure 3-1 OP 015 black multitouch panel with "SINUMERIK Operate Generation 2" user interface
With this user interface, multitouch can be used for all operator actions. Using multitouch
makes operation based on SINUMERIK Operate a lot faster.
References
Further information on the subject of "user interface" is available in the following literature:
● SINUMERIK Operate (IM9) / SINUMERIK 840D sl Commissioning Manual (https://
support.industry.siemens.com/cs/document/109752360)
● SINUMERIK Integrate Run MyScreens (BE2) / SINUMERIK 840D sl Programming Manual
(https://support.industry.siemens.com/cs/document/109752511)
● SINUMERIK 840D sl Easy XML / SINUMERIK 840D sl Programming Manual (https://
support.industry.siemens.com/cs/document/109752366)
Smart machine tool operation
System Manual, 12/2017, 6FC5397-7FP40-0BA0 11
