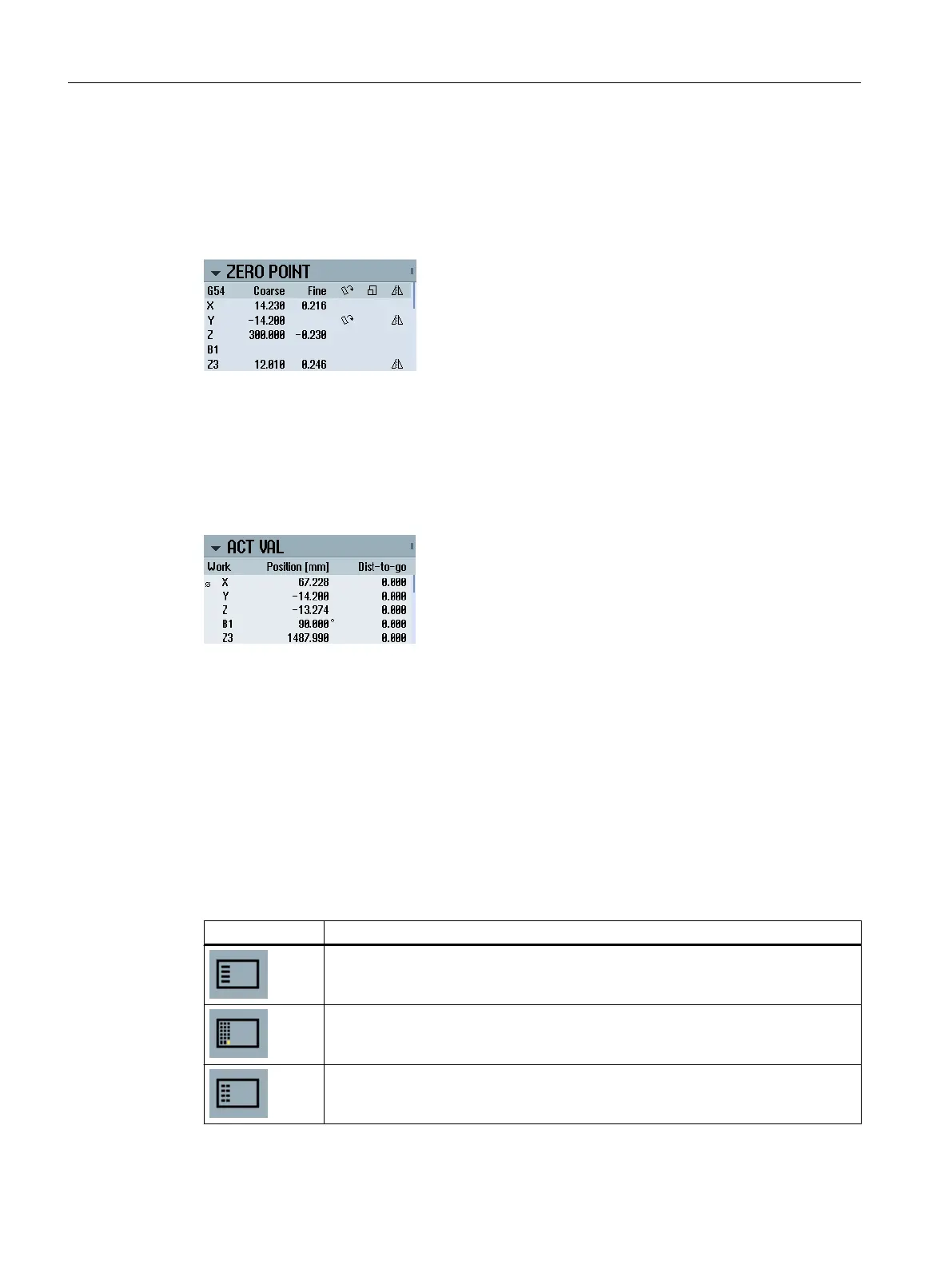

4.4.6 "Zero point" widget
The widget includes values of the active work offset for all configured axes.
The approximate and detailed offset, as well as rotation, scaling and mirroring are displayed
for each axis.
4.4.7 "Actual value" widget
The widget contains the position of the axes in the displayed coordinate system.
The distance-to-go for the current NC block is displayed while a program is running.
4.5 Sidescreen with pages for the ABC keyboard and/or machine control
panel
Not only standard widgets but also pages with ABC keyboards and machine control panels
can be configured in the sidescreen of a multitouch panel.
Configure ABC keyboard and MCP
If you configured ABC keyboard and MCP keys, then the navigation bar is extended for the
sidescreen:
Operator control Function
Display of standard widgets in the sidescreen
Display of an ABC keyboard on the sidescreen
Display of a machine control panel on the sidescreen
SINUMERIK Operate expansion using a sidescreen
4.5 Sidescreen with pages for the ABC keyboard and/or machine control panel
Smart machine tool operation
24 System Manual, 12/2017, 6FC5397-7FP40-0BA0
