4.4 Standard widgets

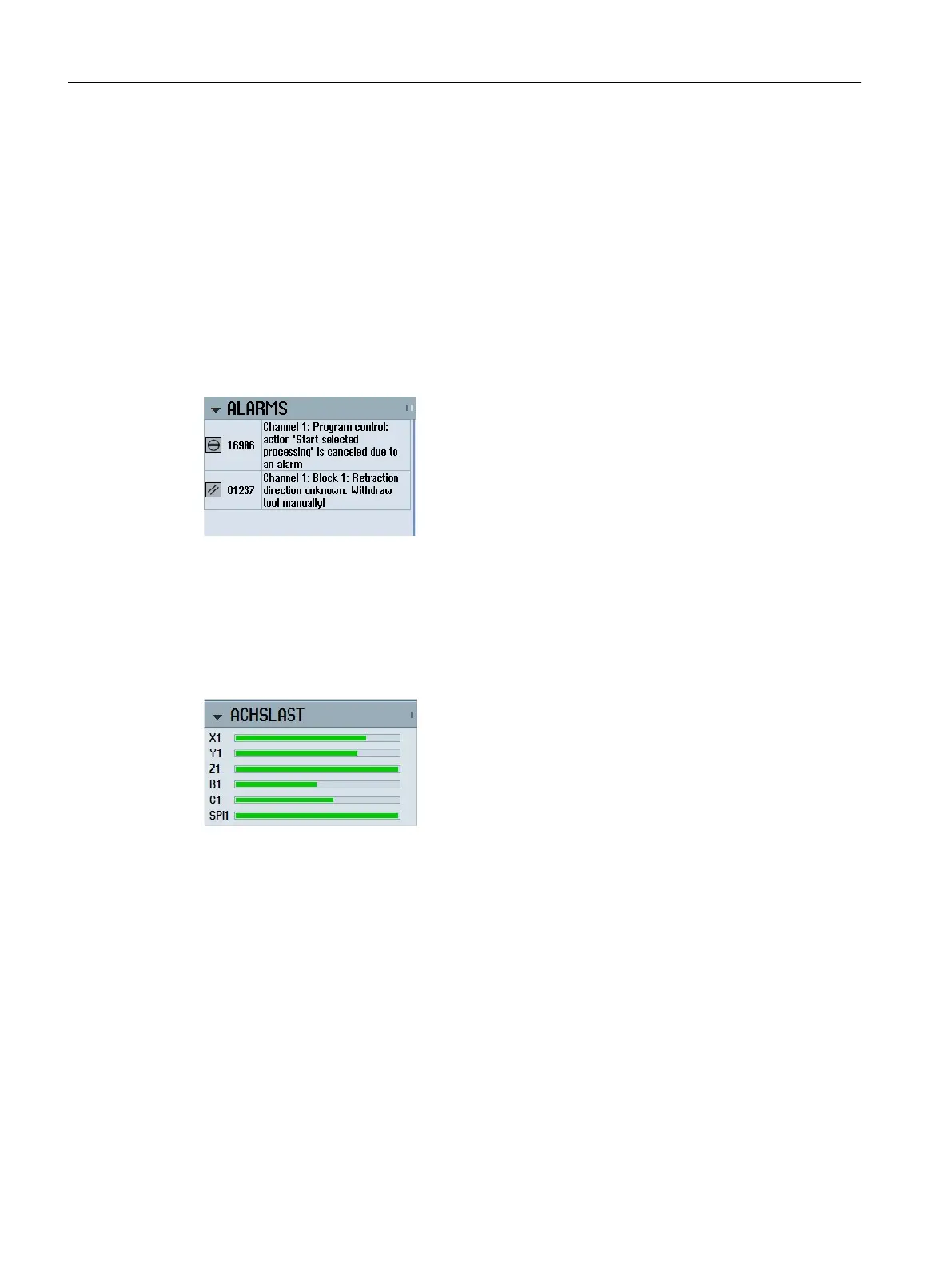

4.4.1 "Alarms" widget
The widget contains all the messages and alarms in the alarm list.
The alarm number and description are displayed for every alarm. An acknowledgment symbol
indicates how the alarm is acknowledged or canceled.
Vertical scrolling is possible if multiple alarms are pending.
Wipe horizontally to switch between alarms and messages.
4.4.2 "Axle load" widget
The widget shows the load on all axles in a bar chart.
Up to 6 axes are displayed. Vertical scrolling is possible if multiple axes are present.
4.4.3 "Tool" widget
The widget contains the geometry and wear data for the active tool.
The following information is additionally displayed depending on the machine configuration:
● EC: Active location-dependent offset - setting up offset
● SC: Active location-dependent offset - additive offset
● TOFF: Programmed tool length offset in WCS coordinates, and programmed tool radius
offset
● Override: Value of the overridden movements that were made in the individual tool directions
SINUMERIK Operate expansion using a sidescreen
4.4 Standard widgets
Smart machine tool operation
22 System Manual, 12/2017, 6FC5397-7FP40-0BA0
