CONNECTION DIAGRAMS
STRAIGHT DESIGN (ANSI TYPE A)
S
L SL
SOURCE
LOAD
Typical arrangement of windings and connections of
Type “A” JFR regulators.
Note: Straight design units may or may not be
equiped with a balance winding. Refer to
regulator nameplate.

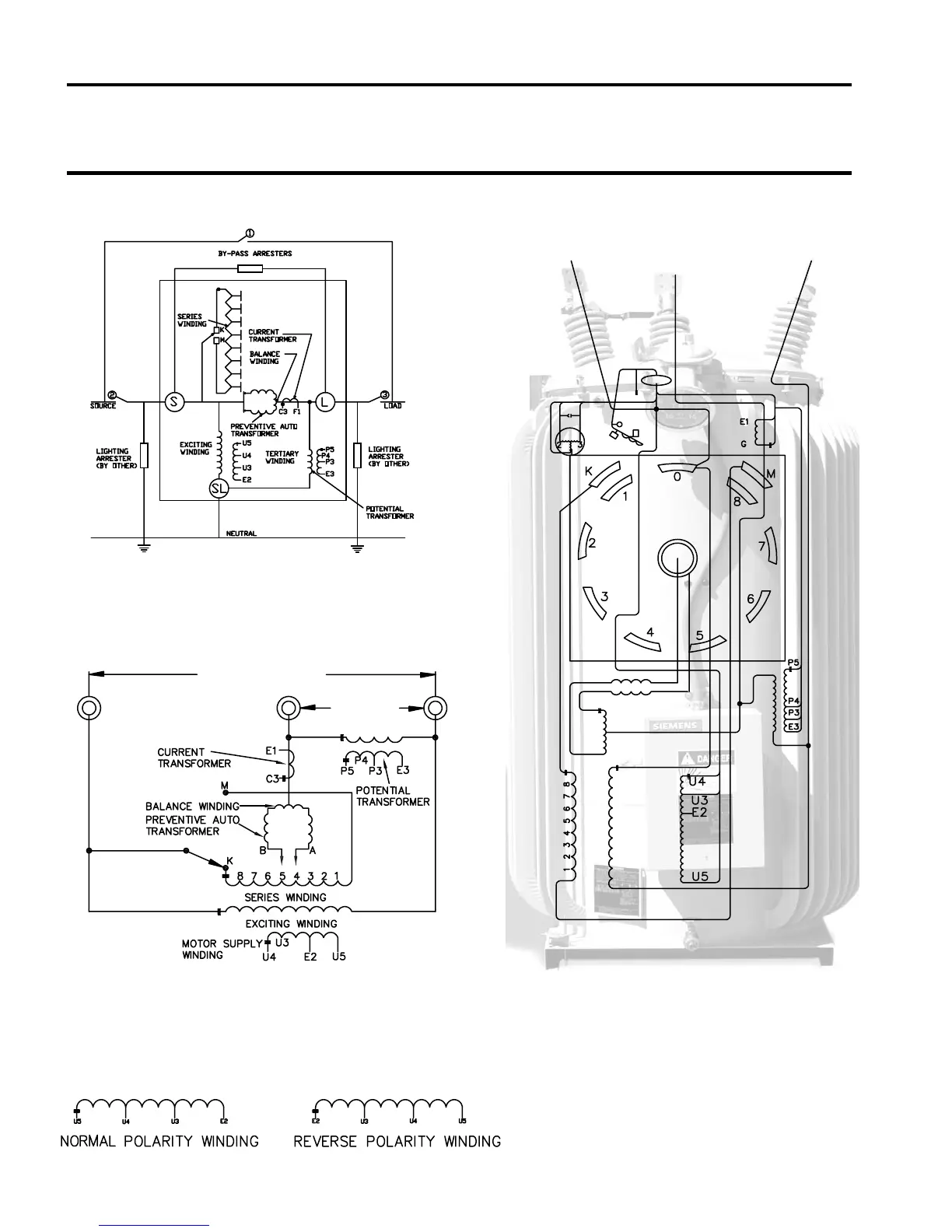

Schematic diagram of a typical Type “A” JFR regulator with fan
power circuit U3-U5.
Note: Other typical motor supply configurations below.
Wiring diagram of a typical Type “A” regulator showing
both internal and external connections without fan power.
