CONNECTION DIAGRAMS Page 7
S
L
LOAD
SOURCE
SL
INVERTED DESIGN (ANSI TYPE B)
L
S
SL

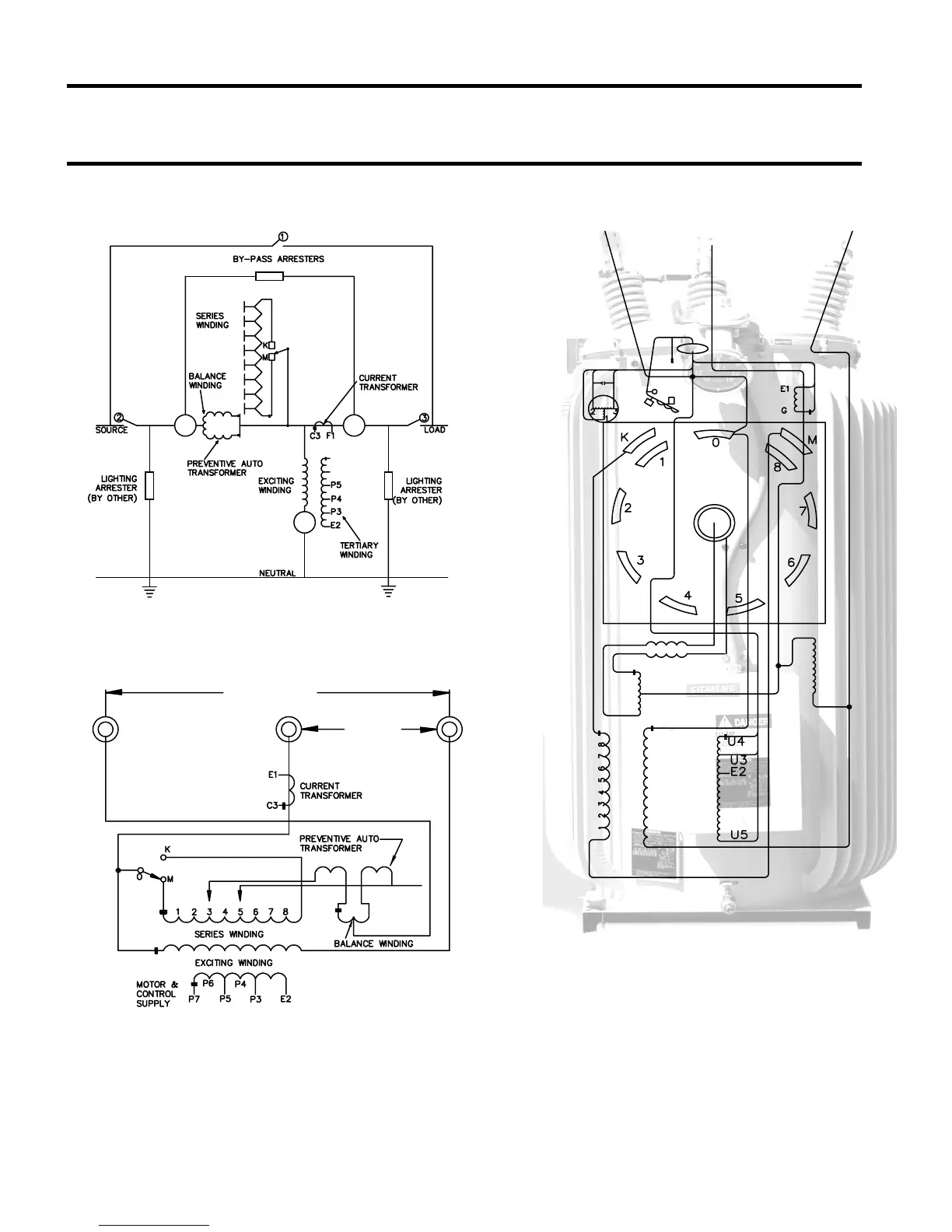

Wiring diagram of a typical Type “B” regulator
showing both internal and external connections.
Schematic diagram of a typical Type “B” JFR
regulator utilizing single potential source for motor
and control circuit.
Typical arrangement of windings and connections of
Type “B” JFR regulators.
Note: Inverted design units may or may not be
equiped with a balance winding. Refer to
regulator nameplate.
