Siemens RDE100.1 User Manual

10 / 11
Siemens RDE100.1DHW Room thermostat with Auto Timer, independent DHW CB1N1423en_01
Building Technologies 2013-03-15
Appication examples
T
T
F1
F2
N1
M1
Y2
1
4
2
3
S
0
1
T
DHW
T
F1F2
N1
M1
Y2
1
4
2
3
S
0
2
T T
DHW

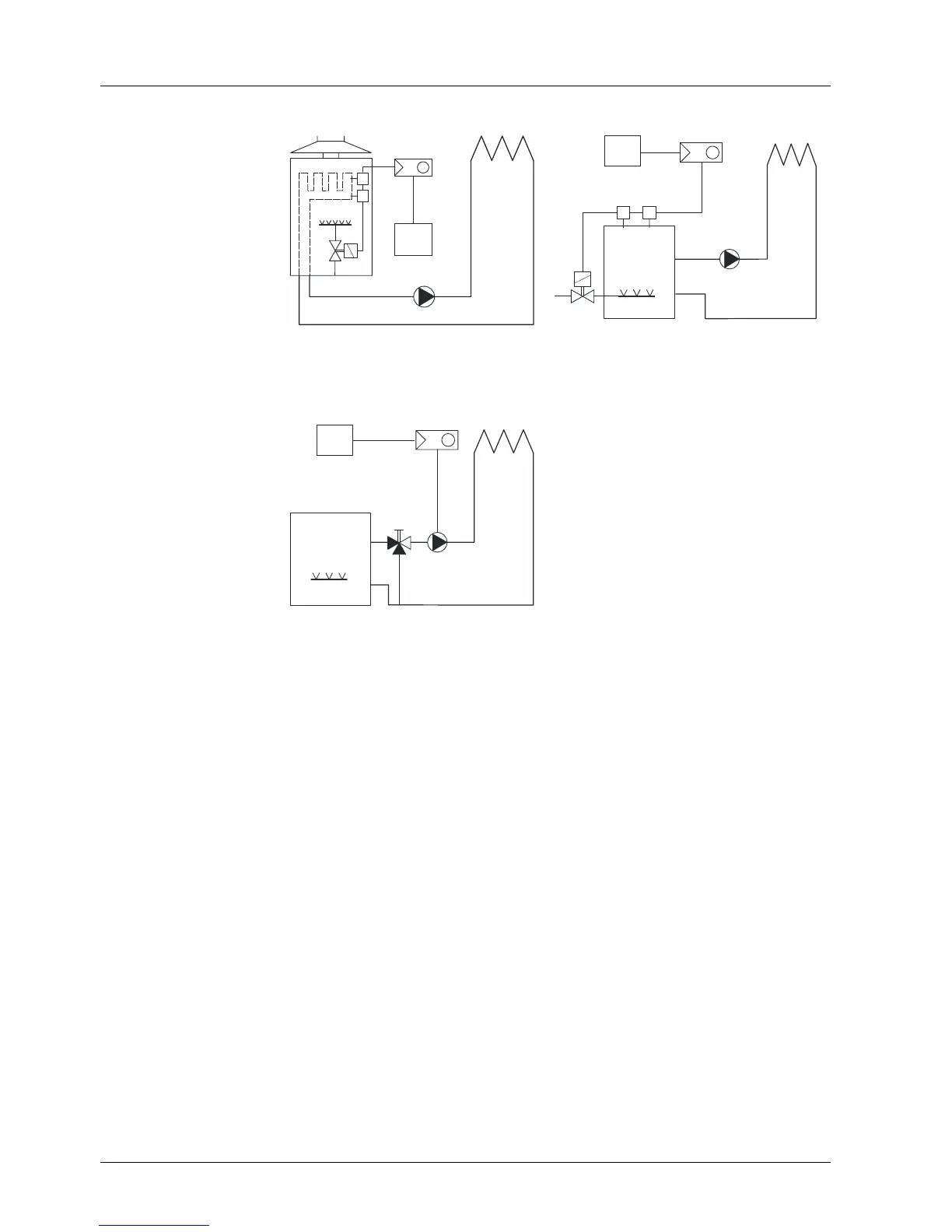

Room thermostat with direct control of
a gas-fired wall-hung boiler and inde-
pendent control of DHW
Room thermostat with direct control of a
gas-fired floor-standing boiler and inde-
pendent control of DHW
Legend
T
N1
Y1
14
2
3S03
M1
DHW
F1
F2
M1
N1
Y1
Y2
DHW
Thermal reset limit thermostat
Safety limit thermostat
Circulating pump
RDE100.1DHW room thermostat
Mixing 3-port valve with manual ad-
justment
Magnetic valve
DHW heating equipment
Room thermostat with direct control of
a heating circuit pump (precontrol by
manual mixing valve) and independent
control of DHW
