Siemens RDE100.1DHW Room thermostat with Auto Timer, independent DHW CB1N1423en_01
Building Technologies 2013-03-15
Transport
Climatic conditions
Temperature
Humidity
Mechanical conditions
As per IEC 60721-3-2
Class 2K3
-25…60 °C
<95% r.h.
Class 2M2
Storage
Climatic conditions
Temperature
Humidity
As per IEC 60721-3-1
Class 1K3
-25…60 °C
<95% r.h.
conformity to
EMC directive
Low voltage directive
2004/108/EC
2006/95/ EC
C-Tick conformity to
EMC emission standard
AS/NSZ 4251.1:1999
RoHS (Restriction of
Hazardous Substances)
2011/65/EU
Product standards
Automatic electrical controls for
household and similar use
General requirements EN 60730-1
Particular requirements for temperature
sensing controls EN 60730-2-9
Electromagnetic compatibility
Emissions
Immunity
EN 61000-6-3
EN 61000-6-2
Safety class II as per EN 60730-1, EN 60730-2-9
Pollution class II as per EN 60730
Degree of protection of housing IP30 as per EN 60529
Connection terminals for Solid wires or prepared stranded wires
2 x 1.5 mm
2
or 1 x 2.5 mm
2
(min. 0.5 mm
2
)
Weight 0.167 kg
Color of housing front RAL9003

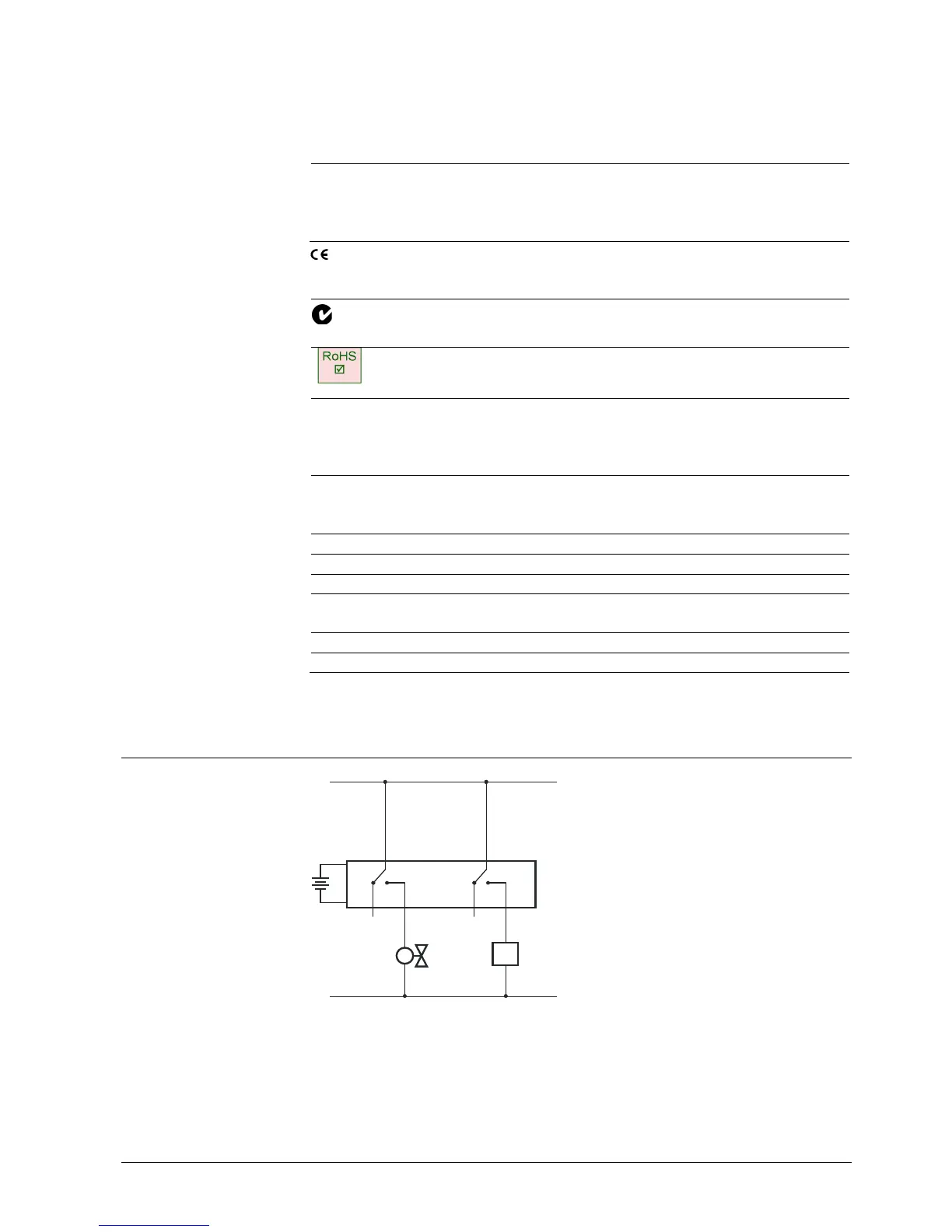

Connection diagrams
Lx
Nx
1423A01
RDE100.1DHW
Q14 Q22
3V
Q12
Y1
5(2) A
max
Y2
Q24
5(2) A
max
Q11
Q21
Lx Live, AC 24...230 V
Nx Neutral conductor, AC 24...230 V
Y1 Heating valve or wall-hung boiler
Y2 DHW heating equipment
Norms and standards
General
Legend
