3.4.4 Applications for heating (RDD810KN/NF only)

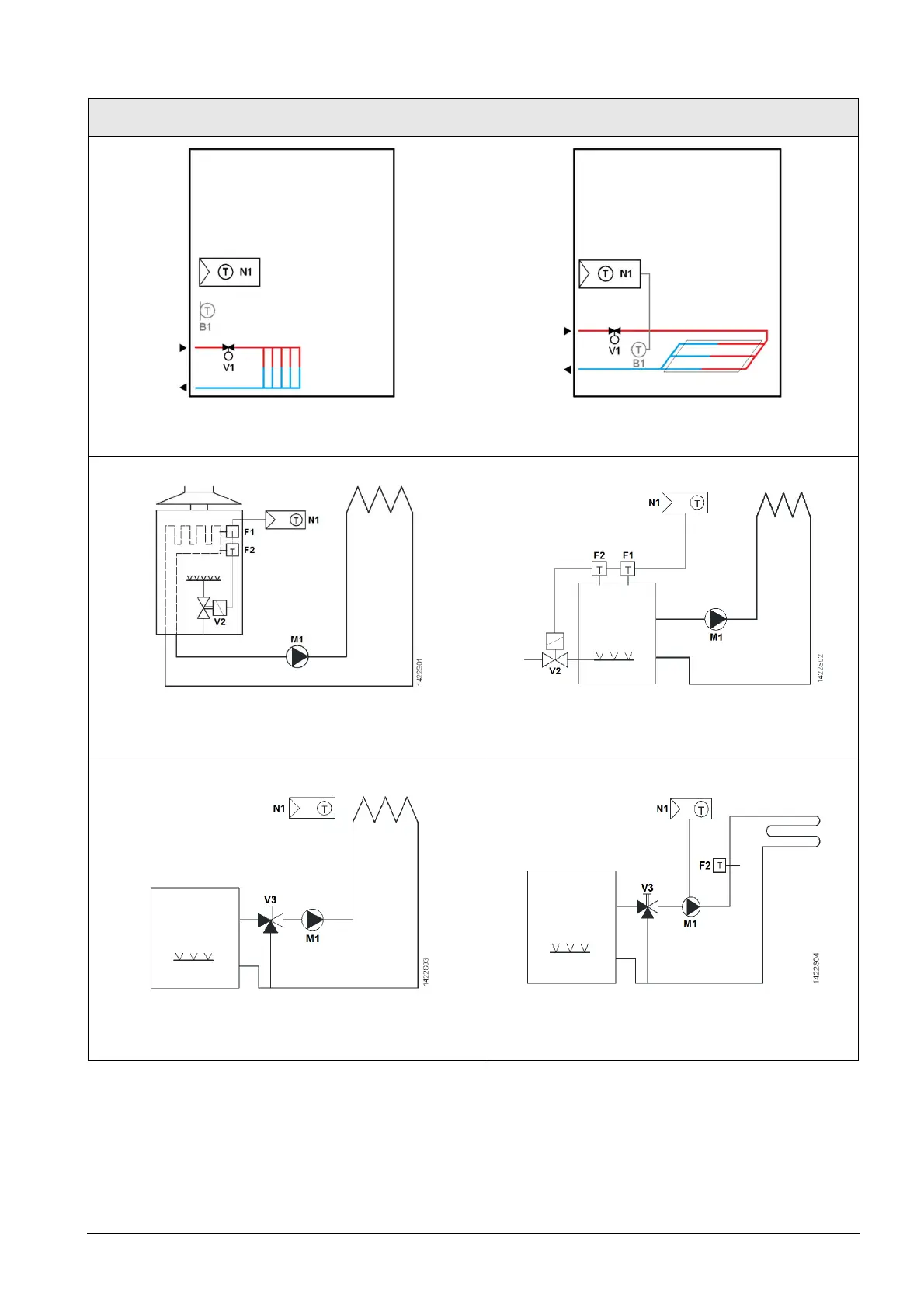

Application and output signal, diagram
Room thermostat controls the valve of the radiator
application
Room thermostat controls the valve for the floor
heating application
Room thermostat with direct control of a gas-fired wall-
hung boiler
Room thermostat with direct control of a gas-fired
floor-standing boiler
Room thermostat with direct control of a heat pump
(pre-controlled by manual mixing valve)
Room thermostat with direct control of hydronic
floor heating system
F1 Thermal reset limit thermostat
F2 Safety limit thermostat
M1 Circulating pump
N1 Room thermostat
V1 2-port valve
V2 Mixing 3-port valve with manual adjustment
