55 / 66
Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3181en
Building Technologies Handling 14 Dec 2011
1
2
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
3
22
24

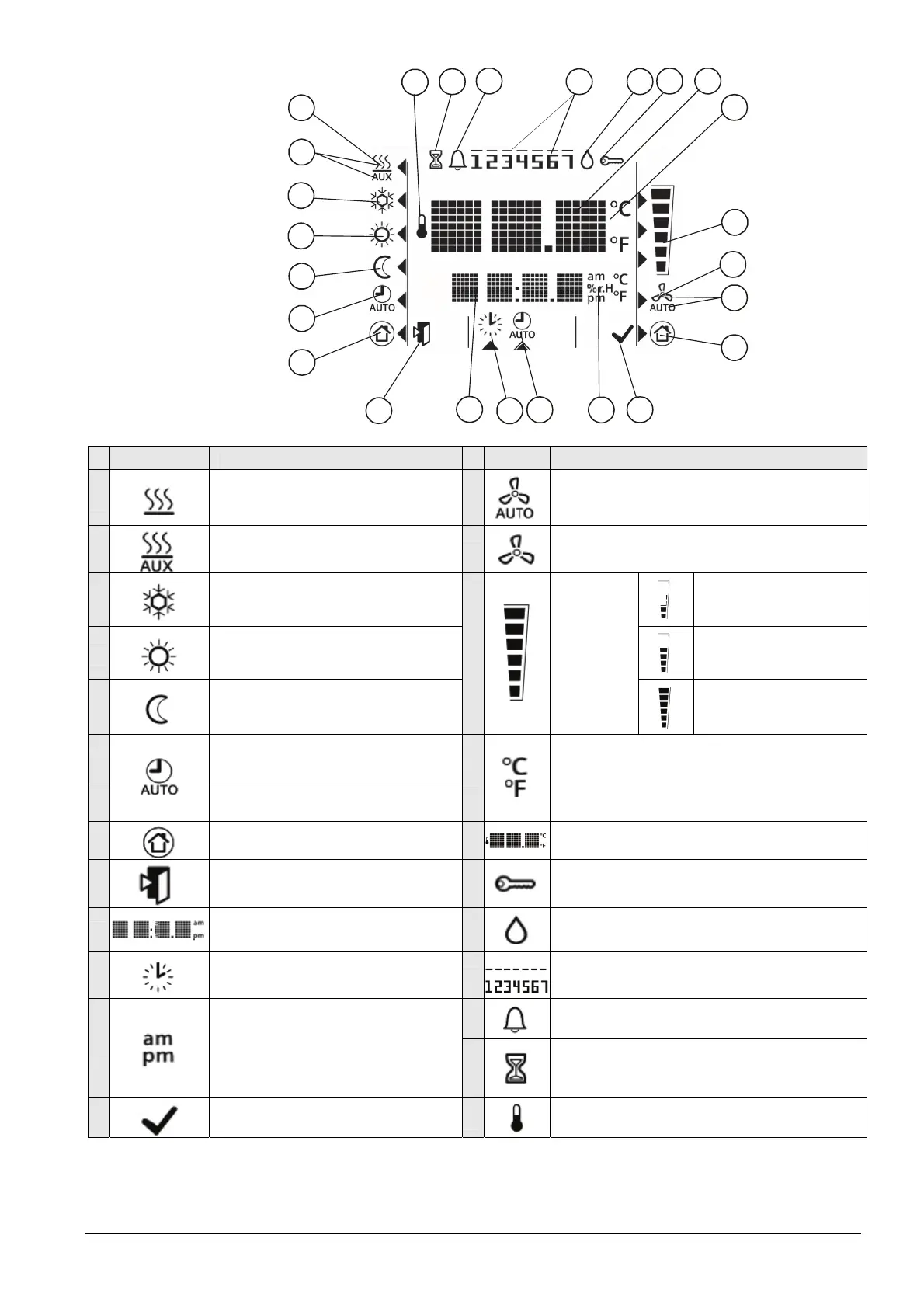

# Symbol Description # Symbol Description
1
Heating mode
14
Automatic fan
2
Electric heater active
15
Manual fan
3
Cooling mode
Fan speed 1
4
Comfort mode
Fan speed 2
5
Economy mode
16
Fan speed
Fan speed 3
6
Auto Timer mode
7
View and set auto timer program
17
Degrees Celsius
Degrees Fahrenheit
8
Protection 18 Digits for room temperature and setpoint display
9
Escape 19
Button lock
10
Digits for time of day, room
temperature, setpoint, etc.
20
Condensation in room (dewpoint sensor active)
11
Setting the time of day and the
weekday
21 Weekday 1…7: 1 = Monday / 7 = Sunday
22
Fault
12
Morning: 12-hour format
Afternoon: 12-hour format
23
Temporary timer function (visible when
operating mode is temporarily extended due to
extended presence or absence)
13
Confirmation of parameters
24
Indicates that room temperature is displayed
LCD
