ACS tool
5
152 | 180
A6V11545892_en--_c

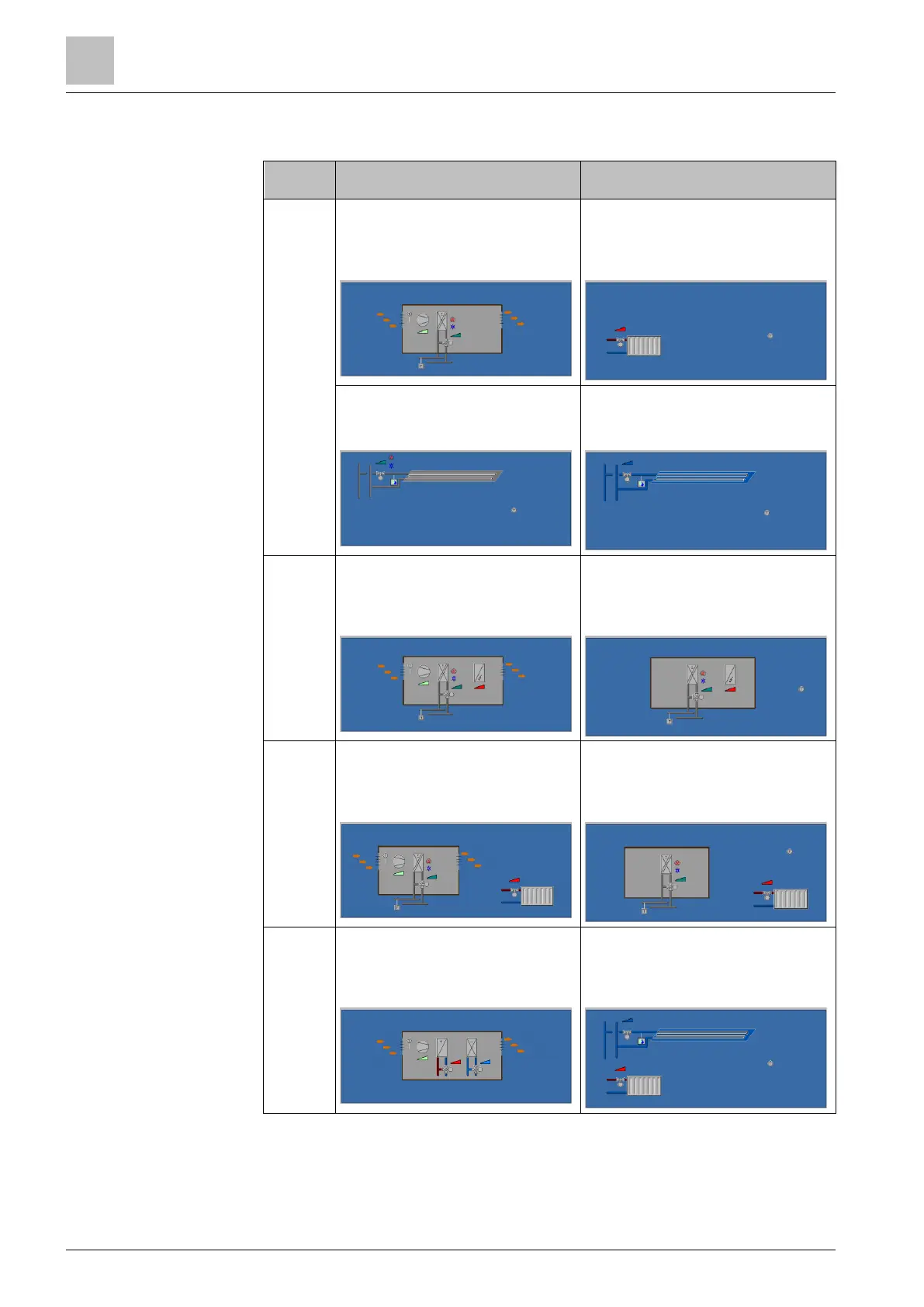

The ACS tool provides standard plant diagrams for RDG2..KN room thermostats,
depending on the following configuration:
Plant type
Application
configuration
Application
configuration
2-pipe
2-pipe fan coil unit
– Control sequence: No impact
(P001 = any)
– Fan operation: Enabled (P350 <> 0)
Radiator
– Control sequence: Heating only (P001 = 0)
– Fan operation: Disabled (P350 = 0)
Chilled/heated ceiling
– Control sequence: Changeover
– Fan operation: Disabled (P350 = 0)
Chilled ceiling
– Control sequence: Cooling only (P001 = 1)
– Fan operation: Disabled (P350 = 0)
2-pipe with
electric
heater
2-pipe fan coil unit with electric heater
– Control sequence: No impact
(P001 = any)
– Fan operation: Enabled (P350 <> 0)
Single-stage with electric heater
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
2-pipe with
radiator
2-pipe fan coil unit with radiator
– Control sequence: No impact
(P001 = any)
– Fan operation: Enabled (P350 <> 0)
Single-stage with radiator
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
4-pipe
4-pipe fan coil unit
– Control sequence: Not auto c/o
(P001 <> 3)
– Fan operation: Enabled (P350 <> 0)
Chilled ceiling with radiator
– Control sequence: No impact (P001 = any)
– Fan operation: Disabled (P350 = 0)
