Siemens RDH100RF/SET - Application examples

15
Siemens
A6V10954418_en--_h
Smart Infrastructure
2022-12-06

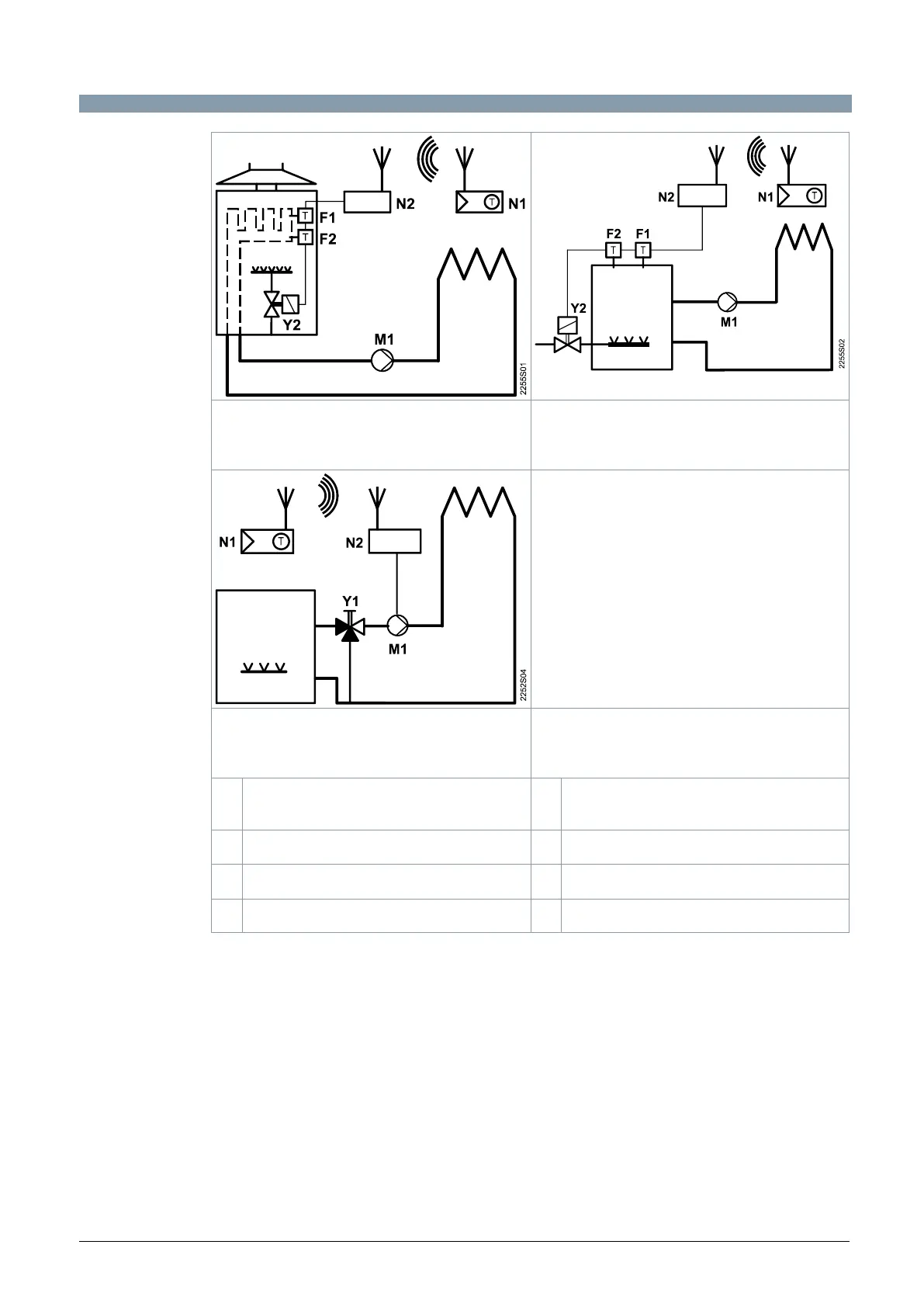

Application examples
Wireless room temperature controller with
receiver control of a gas-fired wall-hung
boiler
Wireless room temperature controller with
receiver control of atmospheric gas burner
Wireless room temperature controller with
receiver control of a heating circuit pump
(precontrol by manual mixing valve)
F1
Thermal reset limit thermostat
N1
Room temperature controller
RDH100RF (Transmitter)
F2
Safety limit thermostat
N2
RCR100/433 (Receiver)
M1
Circulating pump
Y1
3-port valve with manual adjustment
Y2
Magnetic valve
