Siemens
A6V10954418_en--_h
Smart Infrastructure
2022-12-06

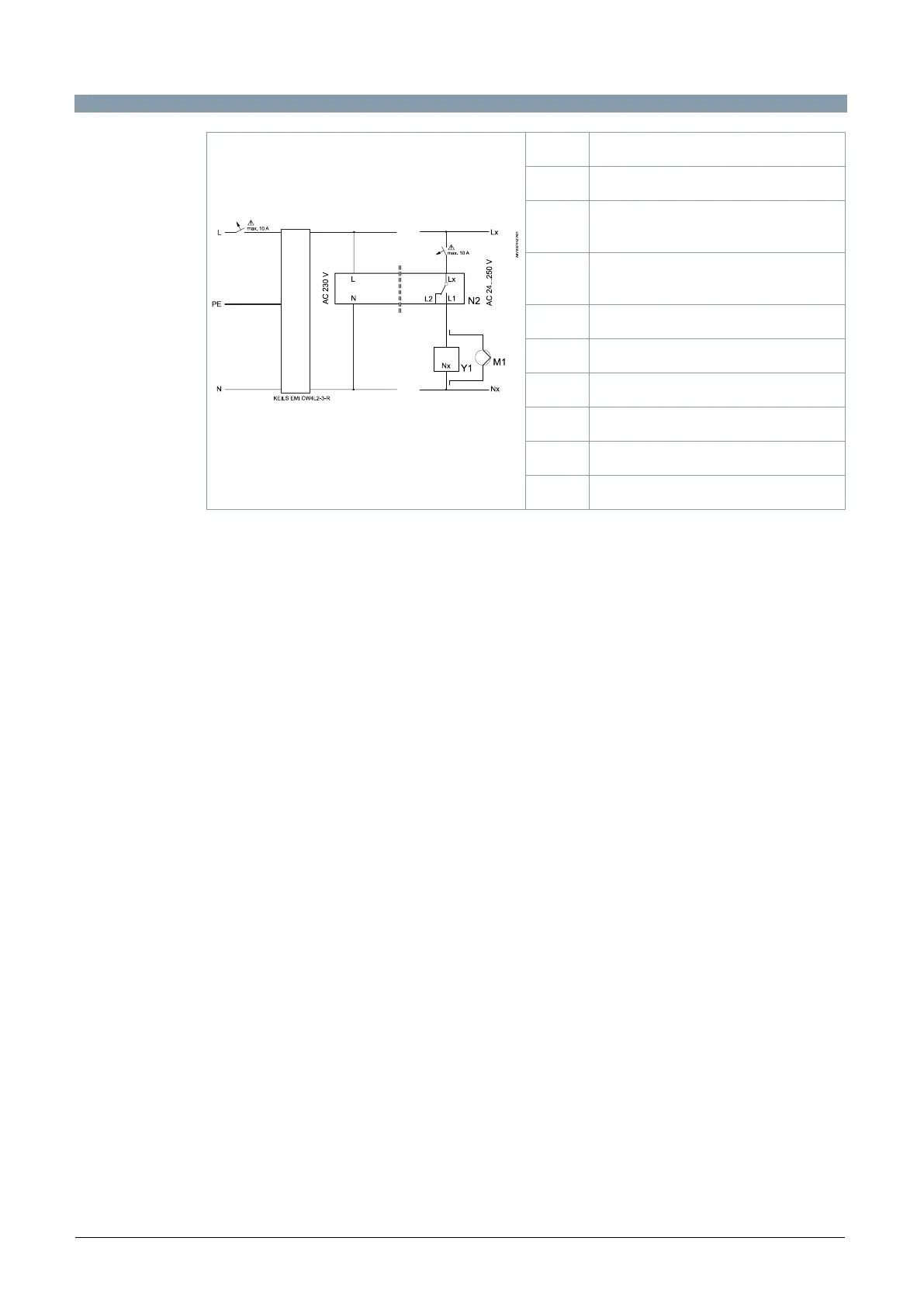

Connection diagram
L – N AC 230 V / Lx – Nx AC 24…250 V
L
Live, AC 230 V
Lx
Live, AC 24…250 V
L1
N.O. contact, AC 24…250 V /
8 (3) A
L2
N.C. contact, AC 24…250 V /
8 (3) A
PE
Protective ground
M1
Circulating pump
N
Neutral conductor
Nx
Neutral conductor
N2
Receiver RCR100/433
Y1
Actuating device
