Siemens REV23 User Manual

5/12
Siemens Building Technologies Room Temperature Controller REV23 CE1N2264en
HVAC Products 23.04.2002

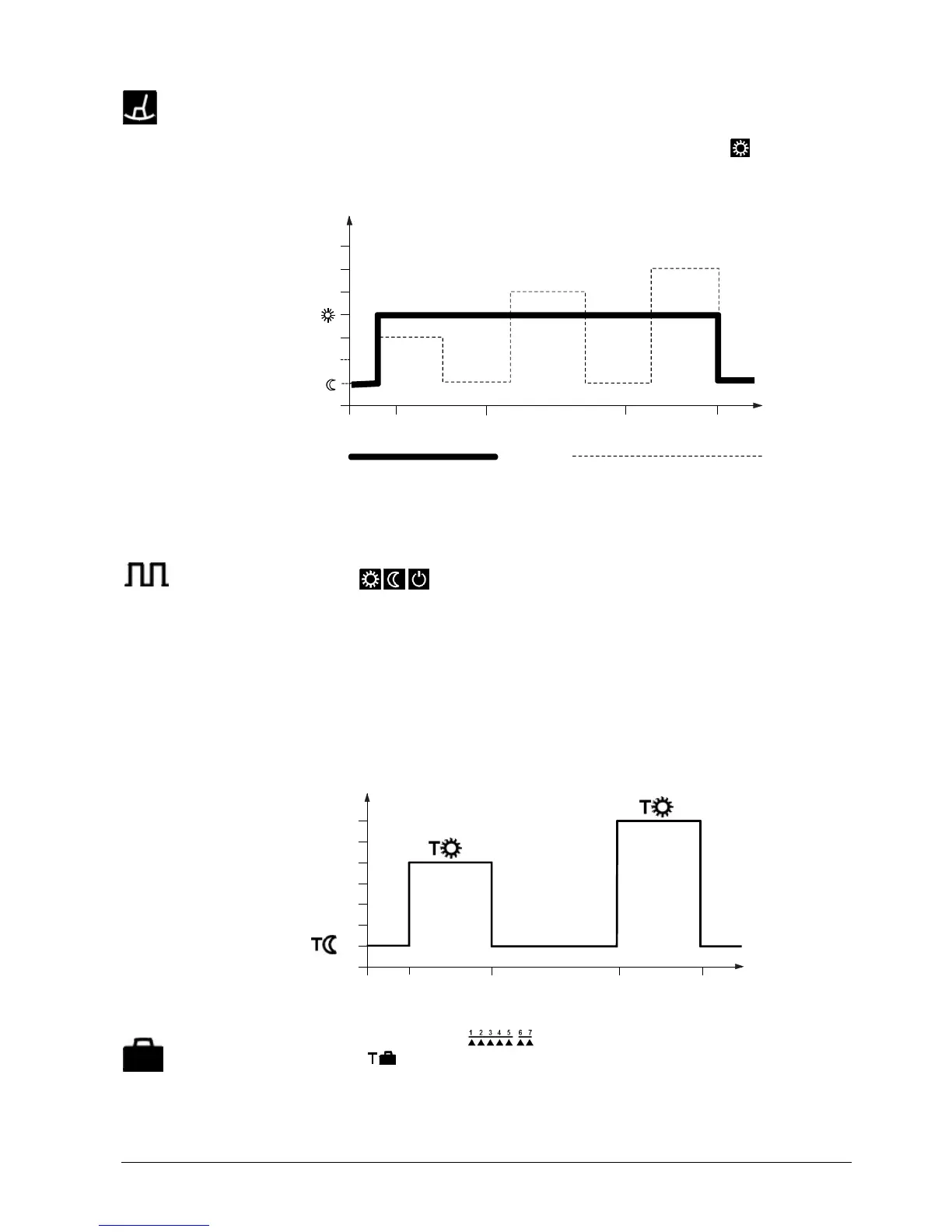

The controller generates the 24-hour operating mode from the current 24-hour pro-
gram. It automatically selects the switch-on time of the first heating / cooling period and
the switch-off time of the last heating / cooling period to generate and display a com-
plete heating / cooling period. The comfort temperature used by the controller is the
currently stored standard setpoint of the continuous operating mode
. The self-
generated 24-hour operating mode is maintained until another operating mode is se-
lected.
2264Z01
°C
18
20
22
08 10 18 22
h
T
T
Automatically generated Current 24-hour switching program
24-hour operating mode
The switching program can be used as a 7-day or 24-hour switching program,
depending on programming. It is also possible to select one of the continuous operating
modes
with which the switching program is not used.
With the 7-day switching program, it is possible to program all days individually, the
working days (1-5), the weekend (6-7), or the entire week (1-7).
When a heating / cooling period is programmed, 3 different switching patterns are
available.
It is possible to select 1, 2 or 3 heating / cooling periods.
For each heating / cooling period, the start time, end time and comfort setpoint are to
be entered. In between heating / cooling periods, it is always the same economy tem-
perature setpoint that is used. This economy temperature setpoint can be adjusted on
the temperature menu.
2261Z04
16
°C
18
20
22
08 10 18 22
h
Heating
period 1
Heating
period 2
The holiday function is to be selected on the user menu. Set the start of the holiday
period (day of departure/
/ day of week), the duration and the temperature
setpoint (
) during your absence. This will enable the controller to maintain the re-
quired temperature for a period of up to 99 days. Every midnight, the counter subtracts
one day.
24-hour operating mode
Example
Switching program
Example with 2 heating
periods per day
Holiday function

Siemens REV23 Specifications

General

Brand	Siemens
Model	REV23
Category	Temperature Controller
Language	English
