Siemens RUGGEDCOM RSG2100 - Configuring the Device

RUGGEDCOM RSG2100
Installation Guide
Chapter 3
Communication Ports
Copper Ethernet Ports 23
Name
Pin
10/100Base-TX 1000Base-TX
Description
3 TX+ BI_DB+ Transmit Data+
or Bi-Directional
Pair B+
4 Reserved (Do
Not Connect)
BI_DC+ Transmit Data+
or Bi-Directional
Pair C+
5 Reserved (Do
Not Connect)
BI_DC- Receive
Data- or Bi-
Directional Pair C-
6 TX- BI_DB- Transmit
Data- or Bi-
Directional Pair B-
7 Reserved (Do
Not Connect)
BI_DD+ Receive Data-
or Bi-Directional
Pair D+
8 Reserved (Do
Not Connect)
BI_DD- Receive
Data- or Bi-
Directional Pair D-
1
6

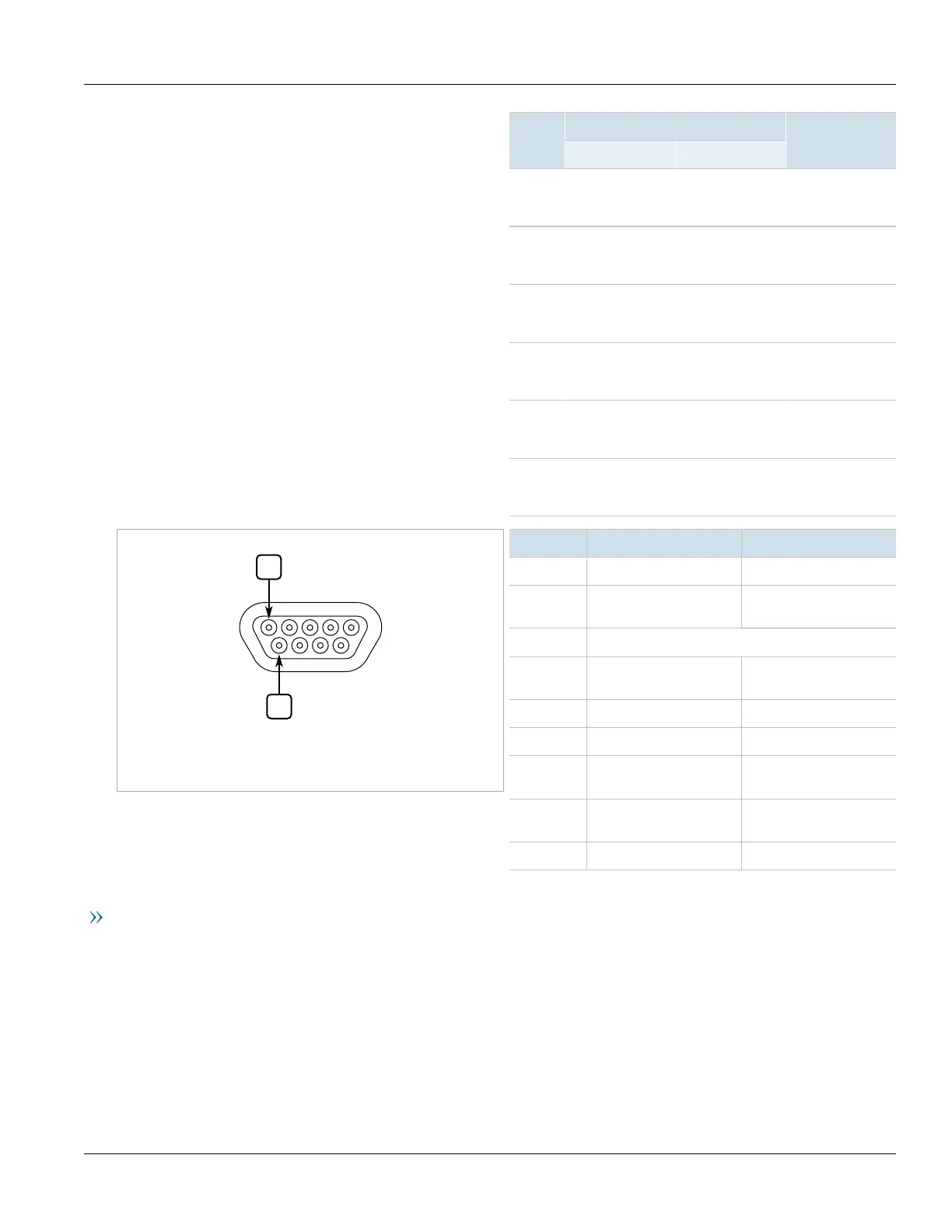

Figure18:Micro-D 10/100Base-TX and 10/100/1000Base-
TX Port Pin Configuration
Pin 10/100Base-TX 1000Base-TX
1 RX+ A+
2 Reserved (Do
Not Connect)
C+
3 Reserved (Do Not Connect)
4 Reserved (Do
Not Connect)
D+
5 TX+ B+
6 RX- A-
7 Reserved (Do
Not Connect)
C-
8 Reserved (Do
Not Connect)
D-
9 TX- B-
Specifications
For specifications on the available copper Ethernet ports, refer to Section4.4, “Copper Ethernet Port
Specifications”.
